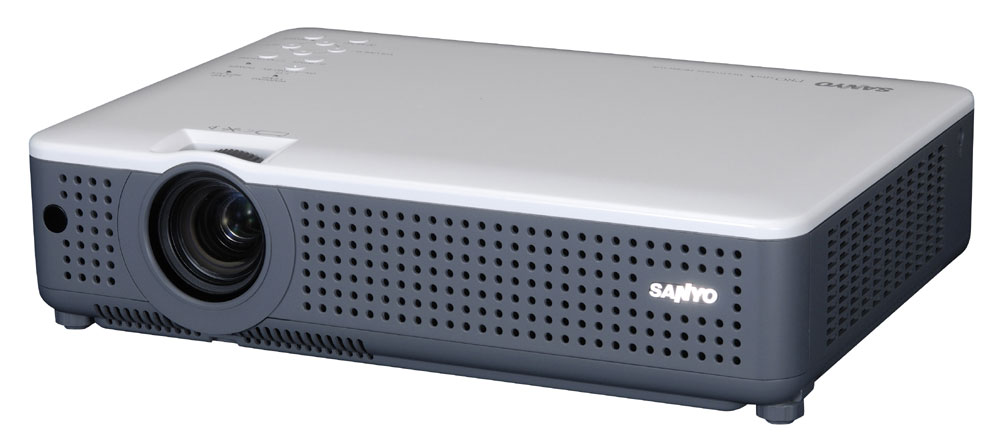

Sanyo PLC-XU75 2500 ANSI Lumens Portable LCD Video Projector

Our Price $799.95 Including 3 - 5 Day Shipping

Back to Sanyo Video Projector Main

OVERVIEW - Sanyo plcxu75 2500 ANSI Lumens Portable LCD Video Projector:

Not much larger than a laptop PC, the Sanyo PLC-XU75 weighs less than 6.8 pounds and delivers true XGA picture quality in a versatile, go-anywhere system. To create smoother, more professional presentations, logo and image files may be captured for display during the projector’s countdown sequence at start-up. The PLC-XU75 offers excellent flexibility via a pair of D-sub 15 input terminals. One of the D-sub 15 terminals can even be switched between input and monitor output for greater programming flexibility.

FEATURES - Sanyo PLCXU75 2500 ANSI Lumens Portable LCD Video Projector:

• True XGA Resolution (1024 x 768)
• 2500 ANSI Lumens Brightness
• Contrast Ratio 450:1
• Digital Zoom for Computer
• Blackboard Mode
• Logo Function
• Power Management
• Lamp Control
• Security Function
• Input Search Function
• 2 RGB (15-pin mini D-Sub) inputs

SPECIFICATIONS - SANYO PLC-XU75 PORTABLE LCD PROJECTOR:

• Resolution XGA (1024 x 768)

• Brightness 2500 ANSI Lumens

• Uniformity 85% (corner to center)

• LCD Panel System 0.63” TFT Poly x 3

• Number of Pixels 2,359,296 (786,432 x 3)

• Contrast Ratio 450:1

• Image Size (diagonal) 40” – 300”

• Aspect Ratio 4:3

• Throw Distance 4.6' - 41.3'

• Zoom/Focus Manual

• Zoom Ratio 1:1.2

• Up/Down Ratio 9:1

• Digital Keystone Correction Vertical: +/- 20

• Projection System Polarized Beam Splitter optical system

• Projection Lens F1.65-1.81/f0.89”-1.06”

• Lens Throw Ratio 1.72-2.07:1

• Projection Lamp 200W UHP

• Scanning Frequency H Sync: 15-100kHz, V Sync: 50-100Hz

• Dot Clock 140MHz

• Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43

• Computer Compatibility UXGA, WXGA, SXGA, XGA, SVGA, VGA, MAC

• Sound Output One-piece, 1-watt Mono

• Voltage 100-240V AC (auto Voltage) ; 50/60 Hz

• BTU Rating 836

• dB Rating 32dB / 28dB (normal/eco)

• Power Consumption 245W / 185W (normal/eco)

• Dimensions (WxHxD) 13.2” x 3.1” x 9.4” (not including Adjustable Feet)

• Net Weight 6.8 lbs.

• User Maintenance Clean air filters, replace lamp assembly

• PC Input Terminals

  • D-Sub15 x 2 (1 switchable in/monitor out)

  • Audio x 1 (Stereo mini-jack : common)

• Video Input Terminals

  • Composite Video (RCA x 1)

  • S-Video (Mini-DIN 4-pin)

  • R & L/mono audio (RCA x 2)

  • Component Video (D-Sub15 input w/optional cable)

  • Audio for Component Video (stereo mini-jack : common)

• Output Terminals

  • D-Sub15 x 1 (switchable In/monitor out)

  • Variable Audio (stereo mini-jack)

• Included Accessories I/R Remote Control, 2 AA Batteries, Owner’s Manual, VGA Cable, Lens Cap, PIN Code Label, AC Power Supply Cord

• Service Port Mini DIN 8-pin

• Warranty Three years parts and labor; 1 year or 500 hours on original lamp; Quick Repair Program under warranty

Manufacturer Homepage: us.sanyo.com
