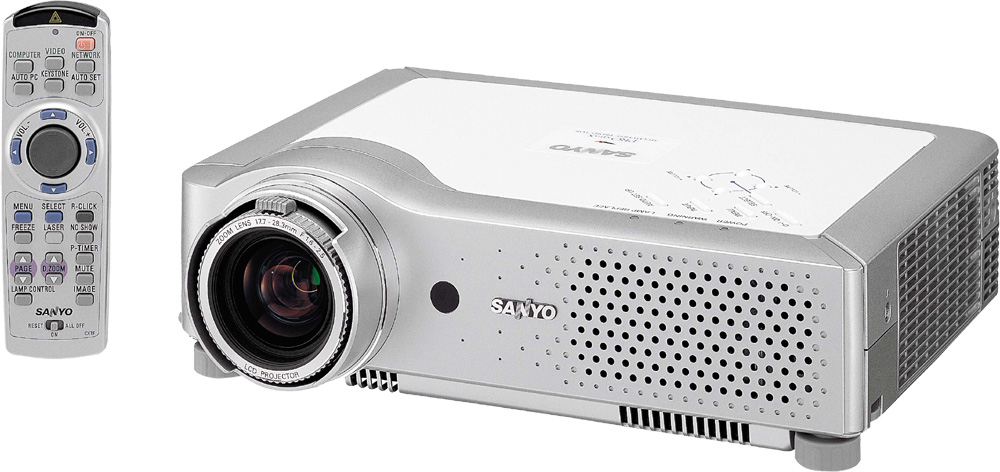

Sanyo PLCXU87 2500 ANSI Lumens XGA Ultraportable Multimedia Projector

Item Currently Unavailable

Return to Sanyo Video Projector Page

KEY POINTS - PLCXU87 Sanyo 2500 ANSI Lumens XGA Ultraportable Multimedia Projector:

• 2500 ANSI Lumens
• True XGA (1024 x 768)
• Auto Vertical Keystone Correction
• 1.57X Optical and 16X Digital Zoom
• Two Computer Inputs (DVI-I and D-Sub)
• Wireless/Wired Lan Capability
• USB Memory Viewer
• Power-Off and Go
• Net Weight 5.7 lbs

DETAILED SPECS - SANYO PLC-XU87 2500 ANSI LUMENS XGA ULTRAPORTABLE MULTIMEDIA PROJECTOR:

• Resolution: XGA (1024 x 768)
• Brightness (typical): 2500 ANSI Lumens
• Uniformity: 80 % (corner to corner)
• LCD Panel System: 0.63” TFT Poly x3
• Number of Pixels: 2,359,296 (786,432 x 3)
• Contrast Ratio: 500:1 (Full on/off)
• Projection Image (diagonal): 40”-300”
• Aspect Ratio: 4:3
• Throw Distance: 1.1 m ~13.1 m.
• Zoom/Focus: Manual (1:1.57 zoom)
• Up/Down Ratio: 9 : 1
• Digital Keystone Correction: Vert. +/- 20°
• Projection System: Polarized Beam Splitter optical system
• Projection Lens: F1.6-2.5 / f0.7”-1.11”
• Lens Throw Ratio: 1.39~2.18 : 1
• Projection Lamp: 200W UHP
• Scanning Frequency: H 15-100kHz; V 50-100Hz
• Dot Clock: 140 MHz
• Color System: PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
• Computer Compatibility: UXGA, WCGA, SXGA, XGA, SVGA, VGA, MAC analog
• Sound Output: One-piece, 1-watt Mono
• Voltage: 100-240V AC; 50/60/Hz (auto sense/select)
• BTU Rating: 955
• dB Rating: < 35 dB
• Power Consumption: TBA
• Dimensions (WxHxD): 11.6” x2.7”x8.2” (not including Adjustable Feet)
• Net Weight: 5.7 lbs.
• User Maintenance Clean air filters, replace lamp assembly
• PC Input Terminals:
  • DVI-I x 1 (w/HDCP)
  • D-Sub15 x 1 (In/Monitor Out)
  • Audio x 1 (stereo mini-jack : common)
• Video Input Terminals
:
• Composite Video (RCA x 1)
• S-Video (mini-DIN 4-pin)
• R & L/mono audio (RCA x 2)
• Component Video (D-Sub15 input w/optional cable)
• Audio for Component Video (stereo mini-jack)
• Output Terminals
:
• D-Sub15 x 1 (In/Monitor Out)
• Variable Audio from PC Audio Input orVideo Audio Input (Stereo Mini-Jack)
• Service Port Terminal Mini DIN 8-pin
• Mouse Control Port USB type B x 1
• Other Terminals
:
• USB type A for Included USB Wireless LAN Adapter or Optional USB Memory
• RJ45 for Wired LAN
• Included Accessories
:
• I/R remote control with Mouse Pad and Laser Pointer
• 2 AAA batteries
• Owner’s manual
• DVI/VGA cable
• USB Wireless LAN Adapter
• CD-ROM
• USB Mouse Control cable
• Lens cap with Strap
• PIN code label
• Soft Carry Bag
• AC power supply cord
• Optional Accessories
:
• POA-USB02 – USB Memory
• POA-CACOMPVGA – VGA / Component Video cable
• POA-MACAP - VGA / MAC Adapter
• 610 332 3855 – Replacement Lamp
• Warranty: Three years parts and labor; 1 year or 500 hours on original lamp

Manufacturer Link: www.sanyo.com
