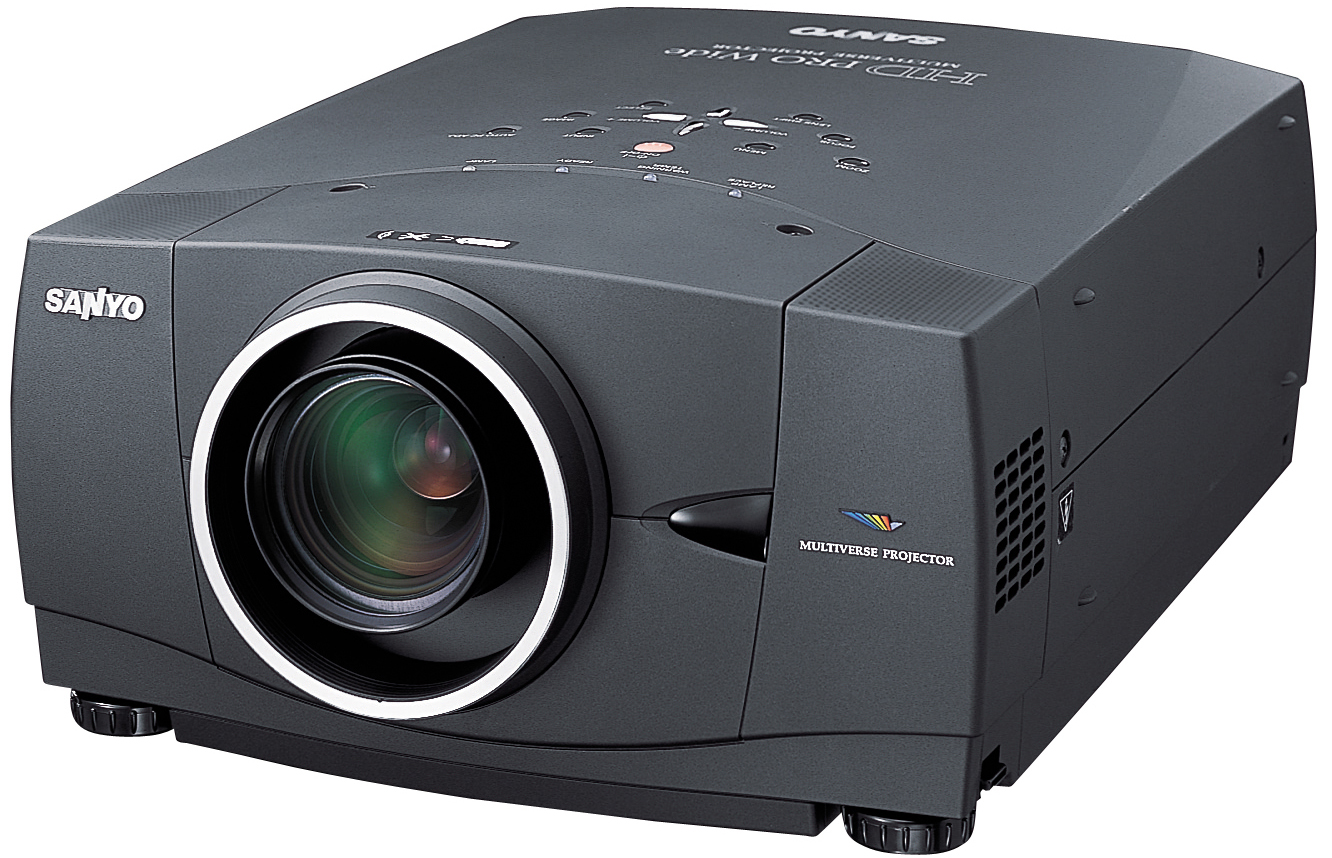

Whether its for home theater use or professional
applications, the Sanyo PLV-80/L delivers the brightness you need
for superior big-screen environment. A newly developed progressive
scan IC improves image quality, and a SANYO original cross-color
separation circuit helps achieve superior diagonal resolution. Also
offering 2-3/2-2 pulldown compatibility (HDTV compatibility), the
PLV-80/L deliver high-quality image projection from film sources.
This gamma correction control function achieves smoother gradation
characteristics by adjusting the gradation according to the image
being input. Sanyos color management function allows adjustment of
any color (hue, chroma, gamma value). A narrow hue range can be
specified, and as the correction is reflected in real time and true
color reproduction with high accuracy can be done.
The PLV-80/L can be connected to a computer network via the optional
PJ-Net Organizer (POA-PN40) for management and control capabilities.
*E-mail Alert *Automatic On/Off *Web Management by browser *Multi
Control *SNMP *Control Port for external/projector
Power lens shift allows for greater placement flexibility by raising
or
lowering the image without having to move the projector. X-Y digital
keystone correction compensates for angled projector placement by
digitally altering the pixels to produce undistorted images both
horizontally and vertically.
DETAILED SPECS - SANYO
PLV80L LCD HOME THEATER PROJECTOR:
Resolution Wide XGA (1,366 x 768)
Brightness (typical) 3,000 ANSI Lumens
Uniformity 90% (corner to corner)
LCD Panel System 1.21 TFT polysilicon type x 3
Number of Pixels 3,147,264 (1,049,088 x 3)
Contrast Ratio 1,000:1
Projection Image (diagonal) 30 - 400
Aspect Ratio 16:9
Throw Distance 4.9 to 52.2
Zoom/Focus Powered; 1:1.3 Zoom
Up/Down Ratio 7:-1 - 1:1 (with power lens shift)
Power Lens Shift Up/Down (see Up/Down ratio)
Digital Keystone Correction Vert. +/- 30°, Horiz. +/-
20°
Projection System X-Type prism system
Projection Lens F/1.8 2.1; f=1.9 2.5
Lens Throw Ratio 1.75 2.3:1
Projection Lamp 300W NSH
Scanning Frequency H 15-100kHz; V 48-100Hz (auto
sense/select)
Dot Clock 180MHz
Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
Computer Compatibility UXGA, SXGA+, SXGA, WXGA, XGA,
SVGA, VGA, MAC
Sound Output Two-piece, 2W + 2W Stereo
Voltage 100-240V AC; 50/60/Hz (auto sense/select)
BTU Rating 1535
dB Rating 33.0 (linear control)
Power Consumption 450W
Dimensions (WxHxD) 12.6x6.6x16.9 (not including
adjustable feet)
Net Weight 19.2 lbs.
User Maintenance Clean air filters, replace lamp
assembly
Input Terminal Panel 1
D-Sub 15
DVI-D w/HDCP
Audio (stereo mini-jack)
Input Terminal Panel 2
5 BNC (RGBHV) or 3 BNC (Video/Y, C/PB/CB, Pr/Cr)
Audio (stereo mini-jack)
Input Terminal Panel 3
3 RCA (Y,Cb/Cr,Pb/Pr) component / composite
S-Video
2 RCA audio (L & R)
Included Accessories Wired/Wireless I/R
remote control (Two AA type batteries
included) AC power supply cord (9.8ft)
Serial control cable (9.0ft) Lens cover
Owners manual (CD-ROM) Quick Manual
