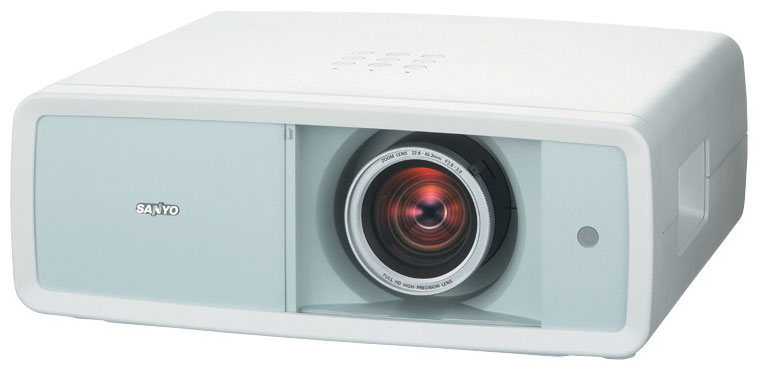

Sanyo PLVZ2000
1200 ANSI Lumens Full HD 1080p LCD Home Theater Projector
No Longer Available
If you purchased a Sanyo PLV-Z2000 LCD video
projector between October 1 and Dec 31 you're eligible to receive $300 Cash Rebate
or Easy Street® NVM-4070 Navigation System* PLUS
(from 10/1/08 - 12/31/08) Get An Additional $300 Rebate Back By Mail
After Purchase
Click here to download claim form
Offering a full 1920 x 1080 high-definition resolution, the Sanyo PLVZ2000 delivers rich, deep and accurate colors due to Sanyo’s exclusive Topaz Real HD Technology, a 3D color management system that addresses changes in color phase and color level to obtain perfect color reproduction. The Sanyo PLV-Z2000’s color management system provides 1110 times more color combinations than Sanyo’s 720p PLV-Z5, a total of approximately 216 billion possible color combinations. This new color management system was designed to optimize the potential of deep color via the projector’s two HDMI 1.3 inputs.
Rated at 1200 lumens, the PLV-Z2000 is capable of
an incredible 15,000:1 contrast ratio for superlative black levels,
even in ambient light. Plus it has a newly-developed,
high-efficiency lens that maximizes image details for exceptional
optical performance.
DETAILED SPECS - SANYO PLV-Z2000
1080P HOME THEATER PROJECTOR:
Resolution
1920 x 1080p
Brightness (typical)
1200 ANSI Lumens (vivid mode)
Uniformity
85% (corner to center)
LCD Panel System
0.7" TFT Poly-Silicon x 3 (16:9)
Number of Pixels
6,220,800 (2,073,600 x 3)
Contrast Ratio
15,000:1 (vivid mode)
Projection Image (diag.)
40" - 300"
Aspect Ratio
16:9
Throw Distance
3.9' - 60.4'
Zoom/Focus
1x to 2.0x, Manual
Lens Shift
Manual (Up/Down/Left/Right)
Up/Down/Left/Right Ratio
Up/Down: 3: -1 ~ -1:3 (-1V / Center / +1V)
Left/Right: 10:0 ~ 0:10 (-0.5H / Center / +0.5H)
Digital Keystone Correction
No
Projection System
Dichroic mirror & 4P prism system w/ PBS
Projection Lens
F2.0 ~ 3.0 / f0.9” ~ 1.8”
Lens Throw Ratio
1.35 ~ 2.7:1
Projection Lamp
165W UHP
Scanning Frequency
H: 15~80kHz, V: 50~100Hz
(auto sense/select)
Dot Clock
100 MHz
Color System
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
Computer Compatibility
WXGA/SXGA/XGA/SVGA/VGA/MAC
Voltage
100V-240V AC; 50/60Hz
BTU Rating
860
dB Rating
19 dBA (Eco mode)
Power Consumption
252W
Dimensions (WxHxD)
15.7” x 5.7” x 13.6”
(not including Adjustable Feet)
Net Weight
16.1 lbs
Input Terminals
Component Video 1
Y, Pb/Cb, Pr/Cr (RCA x 3)
Component Video 2
Y, Pb/Cb, Pr/Cr (RCA x 3)
S-Video
Video (RCA x 1)
Computer
Analog RGB (D-Sub 15)
HDMI
HDMI (19-pin) x 2
Communication
RS-232C (Mini DIN 8-pin)
Included Accessories
Owner's Manual (Quick manual & CD ROM);
Illuminated Infrared Remote Control; AC Power Cord (6.6’); 2 AA
batteries; Air blower
Optional Accessories
6103365404– Replacement Lamp
FCC Rating
Class B, UL Listed
Warranty
3-years parts & labor; 90-days lamp (original);
30-days lamp (replacement)
Quick Repair Program under warranty
