Sima VS-502
Audio/Video Switcher with Component Video and Audio Inputs
No Longer Available
Back to
Video Switchers and Speaker Selectors |
|
|

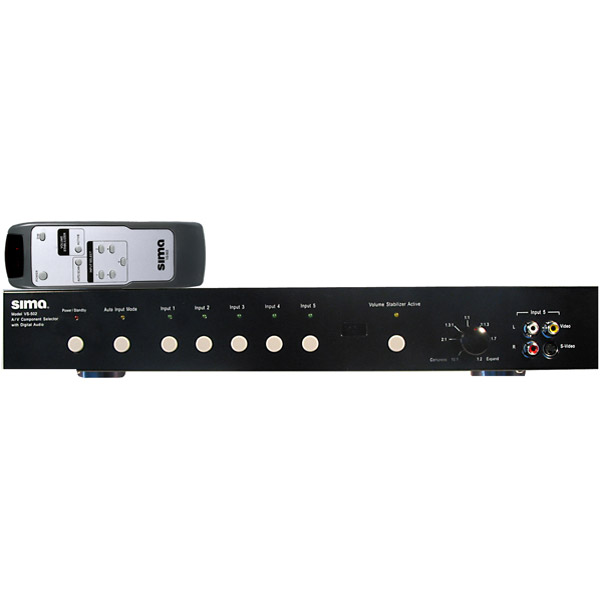

Click For Larger Image |
SIMA VS-502 Audio/Video Switcher with Component Video and Audio Inputs
|
|
OVERVIEW - Sima VS502 Audio/Video Switcher with Component Video and Audio Inputs: The VS-502 provides the necessary A/V inputs for adding components to your TV and home theater system. The Model VS-502 has five Audio/Video inputs including Component video, S-Video and digital audio plus dual outputs to feed your TV and either a receiver or VCR for recording. The VS-502 will help make the transition to HDTV easy! |
FEATURES - Sima VS502 Audio/Video Switcher with Component Video and Audio Inputs:
- 5 AV inputs including S-Video component and composite video
- 5 digital audio inputs and 1 output
- Auto input sensing -- detects the current unit in use and automatically connects to that input
- 3 digital coaxial and 2 digital optical audio inputs
- 16 1/2 W x 2 11/16 H x 8 D
- Includes IR remote
|
SPECIFICATIONS - Sima VS502
Audio/Video Switcher:
|
A/V
Inputs |
Audio:
L/R (5): 200mV, 50K Ohms, 20 to 20KHz +/- 3dB
Optical (2)
Coaxial (3)
Video
Composite (5) (two are shared with component "Y" signal)
S-Video (3): 75 Ohms, 1V (additional front jack shared with rear
Input 5 - 4 Jacks total)
Component Video (2) |
|
A/V
Outputs |
Audio:
L/R (2): 200mV, 100 ohms
Optical (1)
Coaxial (1)
Video:
Composite (2)
S-Video (2): 75 ohms, 1V
Component (1) |
|
Auto
Input Sensing |
On or Off
|
|
Volume
Compression
and Expansion |
User
Adjustable from 10:1 to 1:2
Bypass: On or Off |
|
Digital
Interface |
RS-232
Input/Output to Interface Home Automation Systems |
|
Accessories
Included |
- IR Remote
Control with Batteries
- A/V RCA cable
(3')
- AC Wall Adapter
- Instruction
Manual
|
|
Size
|
16.50" x
8.00" x 2.65" |
Manufacturer Homepage: www.simacorp.com
|
