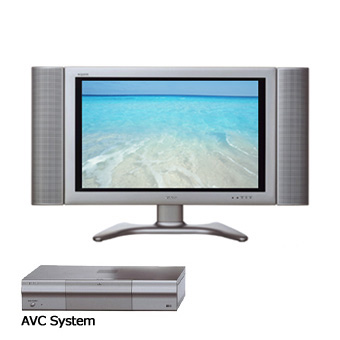

The
LC-30HV4U combines the elegance of AQUOS
Liquid Crystal Television design with a
widescreen 30" Advanced Super View panel
that is HDTV-compatible (720p) and
PC-compatible. The AVC System, a
separate box that houses all terminal
connections, minimizes clutter around the
panel itself, preserving the clean look
which is ideal for wall-mounting.
FEATURES - Sharp Aquos LC30HV4U lcd
tv monitor
Widescreen Advanced Super View LCD Panel is a Sharp
proprietary panel with Black TFT low
reflection coating (actual screen size
29.51" measured diagonally).
Widescreen XGA (1280 x 768) Resolution displays HDTV program images in 720p.
AVC System is a separate (included) set-top box
that houses all terminals.
High Brightness (430 cd/m2) AQUOS Liquid Crystal Televisions are
super-bright, so you can put them anywhere
-- even near windows, doors or other light
sources -- and the picture will still be
vivid.
High Contrast Ratio (500:1)
provides
incredible images whether you're watching
dark or bright scenes.
Wide Viewing Angles (170º H / 170º V)
Sharp's viewing
angles are so wide, you can view the TV
clearly from anywhere in the room!
Detachable Speakers/Included Table Stand
are the ultimate
in convenience!
PC Input
connect your
computer and view your PC images on the 30"
WXGA panel
2-Tuner POP
Two built-in cable
TV tuners provide the ability to watch two
programs side-by-side.
SPECIFICATIONS -
Sharp
Aquos LC30HV4U lcd tv
Panel Type
30" Active Matrix (a-si TFT) Advanced
Super View LCD
Pixel Resolution
Wide XGA (1280 x 768)
Video System
NTSC
Brightness
430 cd/m2
Lamp Life
60,000 hrs.
Viewing Angles
170º H / 170º V
Audio System
10W + 10W
Tuner Type
PLL Synthesizer Tuner
Limited Warranty
1 year parts and labor
Contrast Ratio
500:1
Aspect Ratio
Widescreen
Color Temperature
8,300º K
View Modes
Sidebar, Smart Stretch, Stretch, Zoom
DVI Input
DVI-D x 1
PC Input
15-pin D-sub x 1
HD Component Input
Y/Pr/Pb x 2
S-Video Input
4-pin DIN x 4
Composite Video Input
RCA x 4
Table Stand
Included
Wall Mount
Bracket
Optional
Model Numbers: AN-LCVM30F,
AN-LCVM30T
Power Consumption AC
116w
S-Video Output
4-pin DIN x 1
Audio Inputs/
Outputs
Input: RCA L/R x 4
Output: RCA L/R x 2
ENERGY STAR
Yes
Dimensions
(w x h x d)
39 2/5" x 23 9/10" x 12"
(with speakers and table stand)
30 1/10" x 19 3/5" x 3 1/2"
(without speakers and table stand)
Weight
44.3 lbs.
(with speakers and table stand)
27.8 lbs.
(without speakers and table stand)
