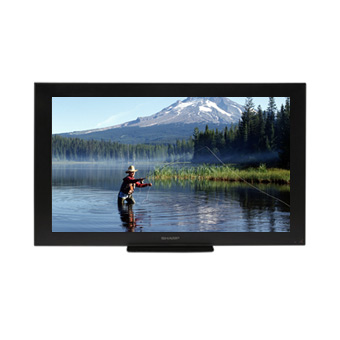

Sharp LC-M3700 37 inch Home Theater LCD TV / Computer Monitor

No Longer Available

 Back to Sharp LCD Main

Click For Larger Image

**The Sharp LC-M3700 is a commercial flat panel LCD monitor ideal for digital signage and public display applications, and as such comes with a Commercial Warranty. If you are looking for a 37” LCD TV / PC Monitor we recommend the LC-37G Series TV’s that will look just as good at a lower price. Click Here For To Learn More.**

OVERVIEW - Sharp Aquos Lc-m3700 37 inch Flat Panel LCD TV

Sharp’s Advanced Super View (ASV) LCD has a quick response time for smoother video, and dramatic viewing angles of 170º horizontally and vertically. This advanced panel with black TFT coating allows for high contrast and high brightness without light reflection even if it is set near a window.

INCLUDED ACCESSORIES

• LCD Size/Type 37” Diagonal / Black TFT
• Matrix Resolution HD Panel 1366(H) x 768(V)
• 3.15 Mil dots
• Aspect Ratio True 16 x 9
• DTV Display Format 1080i/720p/540p/480p/480i
• PC Compatibility VGA/SVGA/XGA/SXGA/WXGA
• Brightness 430 nit (cd/m2)
• Video System NTSC 3.58,4.42/PAL/PAL60/SECAM
• Contrast Ratio 800:1
• Viewing Angle 170o (Left / Right) 170o (Up / Down)
• Backlight Type/Life Fluorescent / 60,000 hrs (landscape mode) 40,000 hrs (portrait mode)
• Power Source 120V / 60 Hz
• Power Consumption 181W (on)
• Dimensions (w x h x d) 37.4” x 22.5” x 3.9”
• Bezel Dimensions Top / Bottom 2.15”
• Side 2.50”
• VESA Mount VESA 200mm M6
• Weight 41.9 lbs.
• Humidity 20 ~ 80%
• Heat Dissipation 618 BTU / hour
• Limited Warranty One (1) year parts/labor
• Regulatory Approvals UL 60950, FCC Class A
• Frame Color Black
• Monitor Speaker 0.8 Watt Monaural
• Speaker Terminals 10 Watts @ 8 ohms x 2

FEATURES - Sharp Lcm3700 flat screen lcd monitor

• Wide Viewing Angle (170o x 170o)
• High Resolution (Wide XGA 1366 x 768)
• High Brightness 430 nit (cd/m2)
• 800:1 Contrast Ratio
• 60,000 hour replaceable backlight
• True 16 x 9 Aspect Ratio
• Operation Manual, Remote Control, Cable Clamp w/screw,
• AC Cord, ”AA” battery (2), Terminal Cover, Set-up Stand
• Installed, Cable Straps (3)
• The Sharp LC-M3700 flat panel LCD monitor is ideal for
• digital signage and public display applications. Rich
• saturated color are produced through Sharp’s independent
• color control.
• Sharp’s Advanced Super View (ASV) LCD allows faster
• response time for smoother video and dramatic viewing
• angles of 1700 horizontally and vertically. This advanced
• panel technology with Black TFT allows for high contrast,
• high brightness without light reflection, even if it is set
• alongside a window.
• With Sharp’s newly developed Interlace-to-Progressive
• Conversion, conventional video like DVD is converted to a
• higher quality picture.
• One look at the connector panel tells you that this is a
• professional monitor that is ready for just about any signal.
• The LC-M3700 is equipped with connectivity for basic
• video signals, HD signals, and PC signals with separate
• audio to follow each of them.
• Input 1 Composite BNC or S-Video (4 pin DIN),
• Audio RCA L/R
• Input 2 / Output Composite (RCA)
• Selectable: Audio RCA L/R
• Input 3 5 BNC input,
• Selectable: Component (Y, PB,PR) or
• Analog RGB (R, G, B, H, V)
• Audio In: 3.5mm stereo
• Input 4 Selectable: Analog RGB (15 pin D-Sub) or
• PC Input Digital (DVI-D)
• Audio In: 3.5mm stereo
• Output PC RGB Analog / Component signal from Input
• 3 and RGB analog signal from Input 4
• Video Output Composite (BNC)
• Professional LCD Monitor
