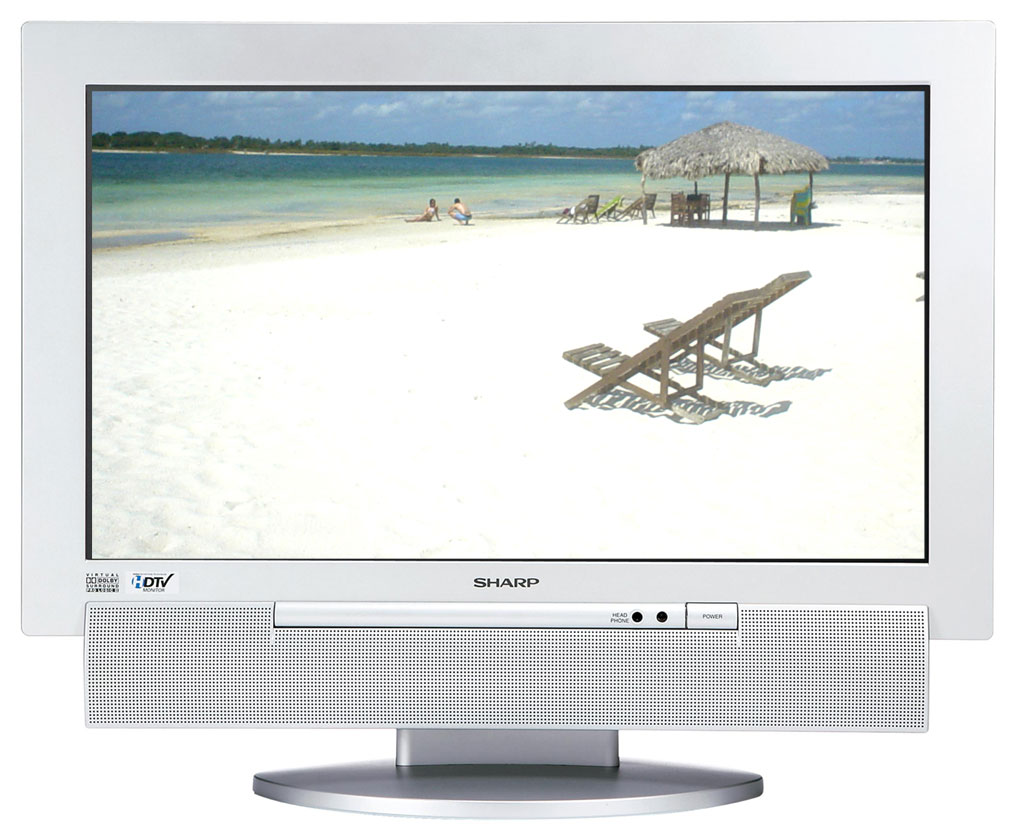

Sharp’s LD-23SH1U is a state-of-the-art 23" widescreen1 LC-TV with multiple functions and features as well as dazzling picture quality. With a "true" 16:9 aspect ratio, HDTV-compatible resolution of 1366 x 768 and PC compatibility, it is a next-generation TV to carry you into the high-definition future. The LD-23SH1U utilizes Sharp’s proprietary Advanced Super View/Black TFT Panel and features high brightness (500 cd/m2), a 550:1 contrast ratio, and wide viewing angles (176º H x 176º V). Additionally, the LD-23SH1U is an HDTV Monitor, which means it is compatible with all 1080i and 720p signals from HDTV sources (separate DTV decoder required). The included table stand can be easily removed for wall mounting applications. Other features that distinguish the LD-23SH1U: DVI-D and HD component inputs, and PC/TV split-screen or dual-image functionality.
FEATURES - Sharp Ld-23sh1u 23 inch
Lcd Tv Display:
Wide XGA Resolution 1366 x 768
Brightness 500 cd/m2
Contrast Ratio 550:1
Viewing Angle 176º H / 176º V
PC Compatible
Includes Table Stand
SPECIFICATIONS - SHARP LD23SH1U HDTV LCD TV:
Panel Type
23" Active Matrix (a-si TFT) LCD
Pixel Resolution
Wide XGA (1366 x 768)
Video System
NTSC
Brightness
500 cd/m2
Viewing Angles
176º H / 176º V
Audio System
5W + 5W
Tuner Type
NTSC
Limited Warranty
1 year parts and 90 days labor
Contrast Ratio
550:1
Aspect Ratio
16:9
View Modes
Normal, Wide, Zoom1, Zoom2, Full
DVI Input
DVI-D x 1
HD Component Input
Y/Pr/Pb x 1
S-Video Input
4-pin DIN x 1
Composite Video Input
RCA x 2
PC Input
Analog mini D-Sub 15-pin x 1, DVI-D
24-pin x 1
Power Consumption AC
84W (less than 5.5W Standby)
RF Input
F-type x 1
Audio Inputs
RCA L/R x 2
Headphone Jack
3.5mm Stereo Minijack x 1
ENERGY STAR
No
Dimensions
(w x h x d)
23 13/64" x 18 55/64" x 8 25/32"
(with stand)
23 13/64" x 16 31/32" x 3 15/16"
(without stand)
