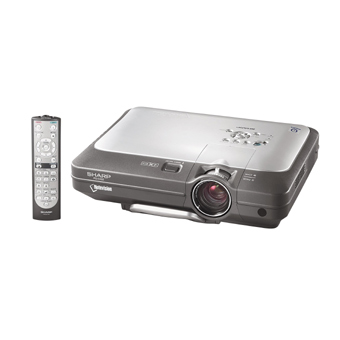

Sharp PG-C45S SVGA 2400 Ansi Lumens LCD Video Projector
OVERVIEW - Sharp pgc45s lcd video projector
At 2400 ANSI Lumens
with native SVGA resolution, the Notevision PG-C45S
delivers high performance and superior value and creates
a new standard for compact projectors. The Notevision
PG-C45S is compatible with computer signals up to SXGA
resolution and capable of displaying high definition
video signals.
FEATURES - Sharp PGC45S LCD Video Projector
High Brightness - is attained by using the new high
efficiency "L" type Optical System
Native SVGA Resolution - New 0.99" polysilicon TFT
Color Management System - allows for individual adjustment
of Lightness, Chrome & Hue for 6 colors
Quick Change Lens - enables users to quickly and easily
change lens
Key Code Startup - is an anti-theft feature that prevents
unauthorized use of projector
Variable Audio Output - allows flexibility and convenience
for controlling volume of external audio system
Presentation Remote - controls forward/backward slide
advancements in presentations
One Touch Startup Image - allows a customizable logo to
appear when the projector starts up or when waiting for a
signal
SPECIFICATIONS - Sharp PGC45S LCD Video Projector
Resolution
800x600 (SVGA)
Brightness
(ANSI Lumens)
2400
Weight
(lbs.)
11.3
Display
Technology
0.9'' Polysilicon
TFT LCD x 3
Uniformity
(%)
90
Data
Signals
PC computers:
SVGA(VGA to SXGA w/ ImageACE)
Video
Signals
NTSC/DTV/PAL/SECAM
Video
Resolution
750 video lines,
DTV/HD compatibility:
480i/480p/540p/580p/720p/1035i/1080i
Aspect
Ratio(s)
4:3
No. of
Colors (million)
16.7
Contrast
Ratio
400:1
Lamp Type
250W UHP
Lamp Life
(hours)
1500
Lens
Recessed 1.27:1
manual zoom and focus
Zoom Ratio
1.27:1
Image Size
40'' - 300''
Throw
Distance
4' 8'' - 46' 4''
Keystone
Digital keystone
correction
Proj.
Method(s)
n/a
Input
2 - RGB/Computer
Inputs; 2 - Component Inputs; 1 - Video/Composite
Input (RCA); 1 - S-Video Input; 2 - Audio L/R
Inputs; PC Control - RS-232C, USB, 3.5 mini jack
Output
1 Computer RGB/Component
with Audio
H-Sync
Range
15-102 kHz
V-Sync
Range
43 - 160 Hz
Built-in
Audio
3W Mono
Audible
Noise (dB)
36
Dimensions
(H x W x D)
3.9'' x 15.4'' x
11.6''
Included
Accessories
IR Remote Control
with batteries, RGB Signal Cable, Grounded AC Cord,
USB Cable, Computer Audio Cable, lens cap, air
filter, Sharp Advanced Presentation Software, Quick
Reference Label, CD-ROM manual.
