High Output 7 Watt Audio System; Built-in Closed Caption
Presentation Assist Remote with PC/Mouse Control
Quick Start On-Screen Setup Guide

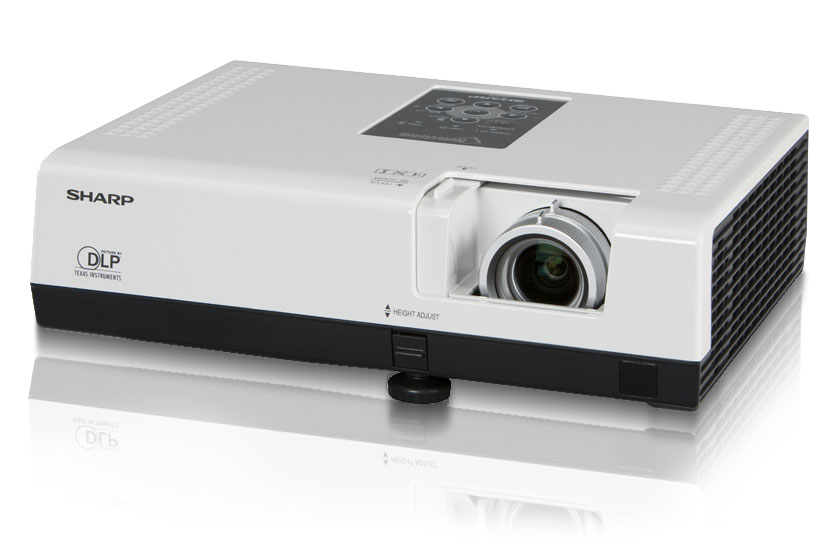

SUMMARY - Sharp pgd2500x 3D Ready DLP Video Projector with 2500 Lumens:
The Sharp PG-D2500X was designed for school and business use, it utilizes the latest BrilliantColor DLP technology with DLP Link that allows hight quality 3D projection from a single projector. Additionally it features 2500 ANSI Lumens brightness, built-in closed caption decoder, 7 Watt audio system and sealed DLP chip with filter-free design. Built with an estimated lamp life of up to 4,000 hours (Eco+Quiet: On), the Sharp PG-D2500 is a slim and lightweight RoHS compatible projector that is very environmentally friendly.
DETAILED SPECS - SHARP PG-D2500X 3D READY DLP VIDEO PROJECTOR WITH 2500 LUMENS:
Intelligent ImageACE Resizing for compatibility up through UXGA (1600 x 1200)
3D Ready with DLP Link
Yes (requires compatible 3D field sequential content, PC/graphics card and 3D active shutter glasses)
3D Support
60Hz/120Hz XGA (1024 x 768) and SVGA (800 x 600)
Lens Type
1:1.2x Short Throw Manual Zoom and Focus, F2.4-2.6, f=19.0-22.7mm, Throw Ratio: 1:1.7~2.1
Closed Caption
Yes (CC1, CC2)
Dot Clock
12-165 MHz
Frequency Range
15-110 kHz Horizontal / 45-85 Hz Vertical (DLP Link Off)
Min/Max Projection Distance
4' 11" (for 40" diagonal, 4:3) up to 36' 10" (for 300" diagonal, 4:3)
Min/Max Screen Size
40" - 300" (diagonal, 4:3)
Optical Lens Shift
N/A
Lamp
210 Watt (end-user replaceable) - model number AN-D350LP or AN-D350LP/1
Est. Lamp Life (standard/low-power mode)
up to 2000 hours (Eco+Quiet: Off); up to 4000 hours (Eco+Quiet: On)
Fan Noise (standard/low-power mode)
34 dB (Eco+Quiet: Off); 30 dB (Eco+Quiet: On)
Wireless Remote Control
Yes - Included. IR Wireless Remote with 3D Mode on/off, page up/down, GUI (Graphic User Interface) pointer, spotlight and mouse control. Pointer offers a choice of five on-screen icons; Spotlight function highlights a box or row of information.
Wired Remote
No
Unique Features
3D Ready. When used with compatible 3D field sequential content and optional active shutter 3D glasses that support the DLP Link 3D format, this model captivates audiences with breathtaking 3D imagery. This model offers 3D support with both 60 Hz and 120 Hz XGA (1024 x 768) and SVGA (800 x 600) sources. Additional unique features include Closed Caption; Free Downloadable Sharp Display Manager Software (for multiple projector management and monitoring for theft prevention); Sealed DLP Chip with Filter Free Design (for lower maintenance and operating costs); Quick Start On-Screen Set-up Menu; Wall Color Screen Adjustment Function (for use with whiteboards and blackboards); Unique Slide Lens Cover (helps protect lens from dust and provides instant lens shutter); Shutter Door on lamp housing (helps keep glass confined in the event of lamp breakage); Enhanced Anti-Theft Design (incorporates reinforced metal security bar, Kensington lock compatibility and optional security kit (for use with optional security cable kit)).
Terminals
Computer Inputs
Computer/RGB (or Component) – mini D-sub 15 Pin
Video Inputs
Computer/RGB (or Component) (mini D-sub 15 Pin); S-Video (mini DIN 4-pin); Composite Video (RCA pin type)
Audio Inputs
PC/Component Stereo Audio Input - 3.5mm stereo mini
