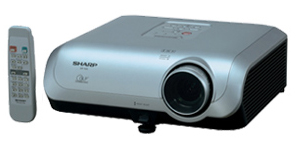

Sharp XR-10S 2000 ANSI Lumens Portable DLP Video Projector

No Longer Available

Return to Sharp Projector Main

KEY POINTS - XR10S Sharp 2000 ANSI Lumens Portable DLP Video Projector:

• Brightness 2000 ANSI Lumens
• Native SVGA resolution 800 x 600
• Contrast Ratio 2000:1

SUMMARY - Sharp xr10s 2000 ANSI Lumens DLP Video Projector:

DETAILED SPECS - SHARP XR-10S 2000 ANSI LUMENS PORTABLE DLP VIDEO PROJECTOR:

• Brightness 2000 ANSI Lumens Standard Mode 1750 ANSI Lumens Low Power Mode
• Display Resolution (Native) SVGA (800 x 600)
• Resolution Capability (Maximum) SXGA+ (1400 x 1050) with ImageACE Resizing
• Compatibility Video Compatibility (DTV/HDTV): 480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i with 4:3 and 16:9 aspect ratios
• Frequency Range 15-70 kHz Horizontal / 45-85 Hz Vertical
• Weight / Dimensions (w x h x d) 8.6 lbs. / 12.4" x 4.7" x 11.6" (including projecting parts)
• Unique Feature(s) Short-throw zoom lens allows for a large projected image from a "short" throw distance; sealed optical system
• Panel Type 0.55" DDR DLP (Single DMD Digital Micromirror Device) - 12º
• Dot Clock 12-108 MHz
• PC Compatibility Yes
• Mac Compatibility Yes
• WS Compatibility Yes
• Video System NTSC 3.58, 4.43 / PAL 50/60, M, N / SECAM
• DTV/HDTV Compatibility 480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i
• Video Circuitry sRGB Color Management plus Brightness and Contrast Boost Functions
• Resizing Intelligent ImageACE Resizing for compatibility up through SXGA+ (1400 x 1050)
• Center to Corner Ratio 85%
• Contrast Ratio 2000:1 (with advanced condenser lens optical system)
• Lens Type 1.15x Short Throw Manual Zoom and Focus, F2.4-2.6, F=19.0-21.9mm, Throw Ratio: 1.75-2.0
• PC Control RS-232C
• Remote Control Control with on-screen timer and image "freeze" function. Also includes forward/back presentation control when used with AN-MR2 remote IR receiver
• IR Carrier Frequency 38KHz
• Wired Remote No
• Audio System 2 Watt monaural audio system with 4cm x 2.85cm oval loudspeaker
• Lamp 275 Watt DC (end-user replaceable) - model number AN-XR10LP or AN-XR10LP/1
• Fan Noise 33dB in standard mode; 30dB in low-power (economy) mode
• Power Source 100V - 240V AC, 50/60Hz
• Power Consumption 350W in "bright" lamp setting and "high" fan mode / 305W in "eco & quiet" lamp setting and "normal" fan mode / 4W standby
• Presentation Tools Incorporated into the wireless remote: Forward/back presentation control (when used with optional AN-MR2 remote IR receiver), on-screen break timer, image "freeze" function
• Limited Warranty 3 years parts and labor with 2 years of Sharp "ER" 24-hour turnaround Express Repair
• Computer Inputs Computer/RGB (or Component) - 15 Pin HD (x2)
• Video Inputs Component Video (or RGB/Computer) - 15 Pin HD (x2); Independent S-Video - 4-pin DIN and Composite Video - RCA pin-type
• Audio Inputs PC/Component Stereo Audio Input - 3.5mm stereo mini Connector; "Video" Stereo Audio Input - 1-pair RCA pin-type
• Outputs RGB Monitor Loop-Through - 15 Pin HD; "VAO" (Variable Audio Output) line-out - 3.5mm stereo mini connector
• Additional Connectors RS-232C Input - 9 pin mini DIN
• Included Accessories Wireless Remote Control; two "AA" batteries; AC Power Cord; 9' 10" RGB signal cable; attached lens cap; operation manual; CD-ROM manual
• Optional Accessories AN-XRCM30 ceiling mounting bracket; AN-EP10B extension tube for ceiling mount; AN-JT200 angle mount joint for ceiling mount; AN-CMCSS46 46" security cable system for use with ceiling mount and extension tube; AN-CMCSS16 16" security cable system for use with ceiling mount; AN-C3CP2 component video (3-RCA) to 15-pin D-Sub cable (9' 10"); AN-A1RS RS-232C adaptor; AN-C10RS RS-232C serial control cable; AN-MR2 remote IR receiver (for forward/reverse presentation control); AN-C3BN 5-BNC to 15-pin D-sub cable (10'); AN-LS1 ethernet to RS-232C adaptor
• Min/Max Screen Size 40" - 300" (diagonal, 4:3)
• Min/Max Projection Distance 4' 7" (for 40" diagonal, 4:3) up to 39' 8" (for 300" diagonal, 4:3)

Manufacturer Link: www.sharpusa.com
