The

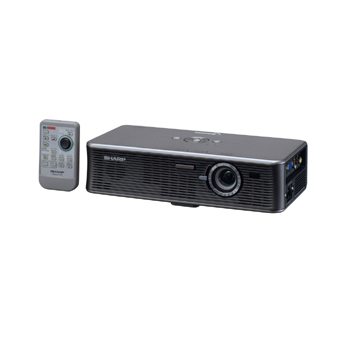

Notevision XR-1X is the ideal "pico" portable projector for the Road
Warrior Travelng Executive. With DDR DLP technology, native XGA
resolution, 1200 ANSI lumens and 2000:1 contrast ratio, the Sharp
Notevision XR-1X is able to meet the demanding requirements of almost
any room or application. And, in the low-power mode, providing a lamp
life of up to 4,000 hours, with low fan noise and power consumption,
the XR-1X is both exceptionally quiet and economical to operate.
FEATURES - Sharp Xr-1x Dlp Video Projector:
DDR DLP Technology
Native
XGA Resolution (1024 x 768)
2000:1 contrast ratio
1200 ANSI
Lumens brightness
4:3 aspect ratio
Micro-Compact "Pico" Size
Carl Zeiss
Optics and zoom lens provide a high quality image to enhance
presentation clarity.
On-Screen
Interactive Help and Easy System Integration
1200 ANSI Lumens; 1040 ANSI Lumens in Low Power (Economy) Mode
Display
Resolution
(Native)
XGA (1024 x 768)
Resolution
Capability
(Maximum)
SXGA+ (1400 x 1050)
Contrast
Ratio
2000:1
Compatibility
Data Compatibility: PC, MAC, Workstation. Video Compatibility (DTV/HDTV):
1080i, 1035i, 720p, 580p, 580i, 540p, 480p, 480i
Frequency
Range
15-70 kHz Horizontal / 45-85 Hz Vertical
Weight /
Dimensions
(w x h x d)
3.2 lbs / 9.7" x 2.7" x 4.8" including adjustment foot and
projecting parts
Unique
Feature(s)
High Quality Carl Zeiss optics; Micro Compact ("Pico") size - only
2.5" thin and 3.2 lbs.; up to 4000 hours lamp life; On-Screen
Operation Guide; Low Power "Economy" mode for increased lamp life,
reduced power consumption and low fan noise
Panel Type
DDR DLP (Single DMD Digital Micromirror Device) - 12º
Dot Clock
12-108 MHz
PC
Compatibility
Yes
Mac
Compatibility
Yes
WS
Compatibility
Yes
Video
System
NTSC 3.58, 4.43 / PAL 50/60, M, N / SECAM
DTV/HDTV
Compatibility
1080i, 1035i, 720p, 580p, 580i, 540p, 480p, 480i
Video
Circuitry
sRGB Color Management
Resizing
Intelligent ImageACE Resizing for compatibility up through SXGA+
(1400 x 1050)
Center to
Corner Ratio
80%
Contrast
Ratio
2000:1
Lens Type
Carl Zeiss 1.16x Manual Zoom/Focus Lens
PC Control
Wireless Mouse incorporated into credit-card size IR Remote
Control
Remote
Control
Includes IR (infrared) Wireless Remote Control with mouse function
IR Carrier
Frequency
38KHz
Wired
Remote
No
Audio
System
1 watt monaural audio system with 1.1" round loudspeaker (3.5mm
Stereo Minijack audio input)
Lamp
150 Watt DC (end-user replaceable) - part number AN-XR1LP
Fan Noise
39dB in Standard Mode
36dB in Low Power (Economy) Mode
Power
Source
100V - 240V AC, 50/60Hz
Power
Consumption
195W Standard Mode
177W Low Power (Economy) Mode
4W standby with 100V AC
Presentation Tools
Wireless Mouse, Freeze and Resize functions incorporated into
remote control
Limited
Warranty
2 years parts and labor with 1 year of Sharp "ER" 24-hour
turnaround Express Repair/Replacement option
Computer
Inputs
RGB (or Component Video) - 15 Pin HD
Video
Inputs
Component Video (or RGB) - 15 Pin HD; S-Video (4-pin DIN);
Composite Video (RCA)
Outputs
USB Port (B Type)
Included
Accessories
Remote Control, Lithium Battery (CR2025), 6' RGB Signal Cable with
integrated USB Cable, 6' AC Power Cord, Operation Manual, CD-ROM,
Soft Sided Carrying Pouch
Optional
Accessories
AN-M200PCBAG: Soft Sided Carry-on Bag (holds projector and PC);
AN-XR1LP replacement lamp unit
Min/Max
Screen Size
30" - 270" (diagonal, 4:3)
Min/Max
Projection Distance
3' 7" (for 30" diagonal, 4:3) up to 32' 5" (for 270" diagonal,
4:3)
Other
*Lamp Life: Up to 4000 hrs. in Low Power (Economy) Mode; Up to
3000 hrs. in Standard Mode
*Simplified Operation with interactive on-screen guidance
*Color Coded Connectors, backlit operation keys and system lock
functions < signal automatic for Adjust
Auto-Response as well Correction Keystone applications
*Reverse / Invert feature for rear-projection applications
*Auto-Digital Keystone Correction as well as Auto-Response Adjust
for automatic signal synchronization
