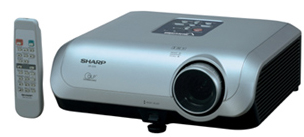

Powerful and Efficient, the "Educator Series" XR-20S Projector features 2300 ANSI Lumens and SVGA Native Resolution. Utilizing the latest Texas Instruments DDR DLP display technology with 3x speed, 4-segment color wheel in conjunction with TrueVision (DDP2000) image processing ensures superior color quality, brightness and reliability. Multiple ultra-quiet cooling fans, along with extended lamp life, makes the projector an ideal choice for extended-use operation. And a full complement of inputs and outputs (including RGB-loop through, stereo variable audio line-output and RS-232C) makes the projector ideal not only for "portable" use, but for higher-end integration as well.
Video Circuitry sRGB Color Management plus Brightness and Contrast Boost Functions
Resizing Intelligent ImageACE Resizing for compatibility up through SXGA+ (1400 x 1050)
Center to Corner Ratio 85%
Contrast Ratio 2000:1 (with advanced condenser lens optical system)
Lens Type 1.15x Short Throw Manual Zoom and Focus, F2.4-2.6, F=19.0-21.9mm, Throw Ratio: 1.75-2.0
PC Control RS-232C
Remote Control Includes IR (infrared) Wireless Remote Control with on-screen timer and image "freeze" function. Also includes forward/back presentation control when used with AN-MR2 remote IR receiver
IR Carrier Frequency 38KHz
Wired Remote No
Audio System 2 Watt monaural audio system with 4cm x 2.85cm oval loudspeaker
Lamp 275 Watt DC (end-user replaceable) - model number AN-XR20LP or AN-XR20LP/1
Fan Noise 33dB in standard mode; 30dB in low-power (economy) mode
Power Source 100V - 240V AC, 50/60Hz
Power Consumption 350W in "bright" lamp setting and "high" fan mode / 305W in "eco & quiet" lamp setting and "normal" fan mode / 4W standby
Presentation Tools Incorporated into the wireless remote: Forward/back presentation control (when used with optional AN-MR2 remote IR receiver), on-screen break timer, image "freeze" function
Limited Warranty 3 years parts and labor with 2 years of Sharp "ER" 24-hour turnaround Express Repair
Computer Inputs Computer/RGB (or Component) - 15 Pin HD (x2)
Video Inputs Component Video (or RGB/Computer) - 15 Pin HD (x2); Independent S-Video - 4-pin DIN and Composite Video - RCA pin-type
Additional Connectors RS-232C Input - 9 pin mini DIN
Included Accessories Wireless Remote Control; two "AA" batteries; ' AC Power Cord; 9' 10" RGB signal cable; attached lens cap; operation manual; CD-ROM manual
Optional Accessories AN-XRCM30 ceiling mounting bracket; AN-EP10B extension tube for ceiling mount; AN-JT200 angle mount joint for ceiling mount; AN-CMCSS46 46" security cable system for use with ceiling mount and extension tube; AN-CMCSS16 16" security cable system for use with ceiling mount; AN-C3CP2 component video (3-RCA) to 15-pin D-Sub cable (9' 10"); AN-A1RS RS-232C adaptor; AN-C10RS RS-232C serial control cable; AN-MR2 remote IR receiver (for forward/reverse presentation control); AN-C3BN 5-BNC to 15-pin D-sub cable (10'); AN-LS1 ethernet to RS-232C adaptor. Replacement Lamp Module: AN-XR20LP or AN-XR20LP/1
