Multiple Inputs and High-performance Scan Converter
PFM Series displays utilize high-definition, 16:9 flat panels that provide
smooth, high-quality images across the screen. They accept signals ranging
from standard composite video to HDTV, DTV and RGB computer signals at up to
UXGA resolution. A range of optional input adaptors are available, providing
superb system flexibility. A built-in, high-performance scan converter
offers optimum image quality whatever the signal format, providing accurate
pixel-by-pixel image reproduction.
Versatile and stylish
With their simple, yet sophisticated appearance, the PFM Series of displays
offer a stylish, high impact, way to convey messages. A stylish bezel gives
a sharp and sophisticated look that is right for any environment*. With
excellent installation flexibility, these slim, lightweight displays provide
large, superb quality images in minimal space.
SPECIFICATIONS - Sony

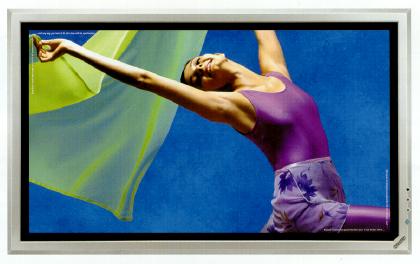

pfm-42b2 42 inch Plasma Tv
Picture Performance Resolution: 1024 x 1024 pixels
Pixel Pitch: 0.90 x 0.51 mm
Active Area (W/H): 921 x 522 mm (36.2" x 20.5" inches)
Viewable Area: 42" diagonal
Driver: 10-bit RGB
Colors: 16.8 million colors simultaneously
Type: AC -type Plasma Display Panel with anti-reflection screen
Color system: NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL 60
Sampling rate: 13.5 to 140 MHz
Video In: - Connector 1: BNC
- Signal: Composite Video
- Connector 2: S-video(Mini Din 4-Pin)
- Signal: Y/C
Output
- Connector: BNC, Loop-through
- Signal: Composite Video
Remote (RS-232C): D-sub 9-pin
FEATURES - Sony
pfm-42b2 42 inch Plasma Tv
High Resolution 1024 x 1024 Images -1024 x 1024
pixels for excellent brightness and contrast and smooth images throughout
the screen in any video format
Anti-reflection glass coating - Reduces light reflection for clear,
high contrast pictures
Lightweight and Slim Cabinet - 62.9 lbs and 3 3/8 inches
thick for easy, flexible mounting anywhere
High-performance Scan Converter - Optimum image quality with exact
pixel sampling from the original input source, providing high quality
pixel-by-pixel image reproduction using Sony's new, exclusive Automatic Dot
Phase Adjustment
Six language On-Screen Display - Quick and simple setup in English,
French, German, Italian, Spanish and Japanese
Selectable Aspect Ratio - Choose from widescreen 16:9, wide zoom,
Letter Box zoom and standard 4:3 for flexible presentations
Size Control - Adjusts picture both vertically and horizontally
Picture Zoom - Zoom in on a section for a closer look; allows
multiple panels to be used for video wall applications
Self Diagnosis Alarm - Easy maintenance access to confirm a diagnosis
on the status menu, service code indicator or via the RS232C port
Color Temperature/Dot Phase Adjustment - Optimizes the scan converter
sampling phase to the input signal and allows for up to six color
temperature settings
Screen Saver Function - Picture orbiting and picture inversion assist
in more uniform use of the pixels
160 degree viewing angle - Wide angle for large groups and distance
viewing
Multiple Inputs for composite, S-video and RGB/Component - Displays
visuals from a wide variety of signal sources, ranging from standard video
to HDTV, DTV and computer signals up to UXGA.
