• Built in Protective Lens Cover
• Memory Stick digital media input slot
• 1000 ANSI Lumens
• XGA Resolution
• Credit Card Sized Remote Control
• Carrying Case

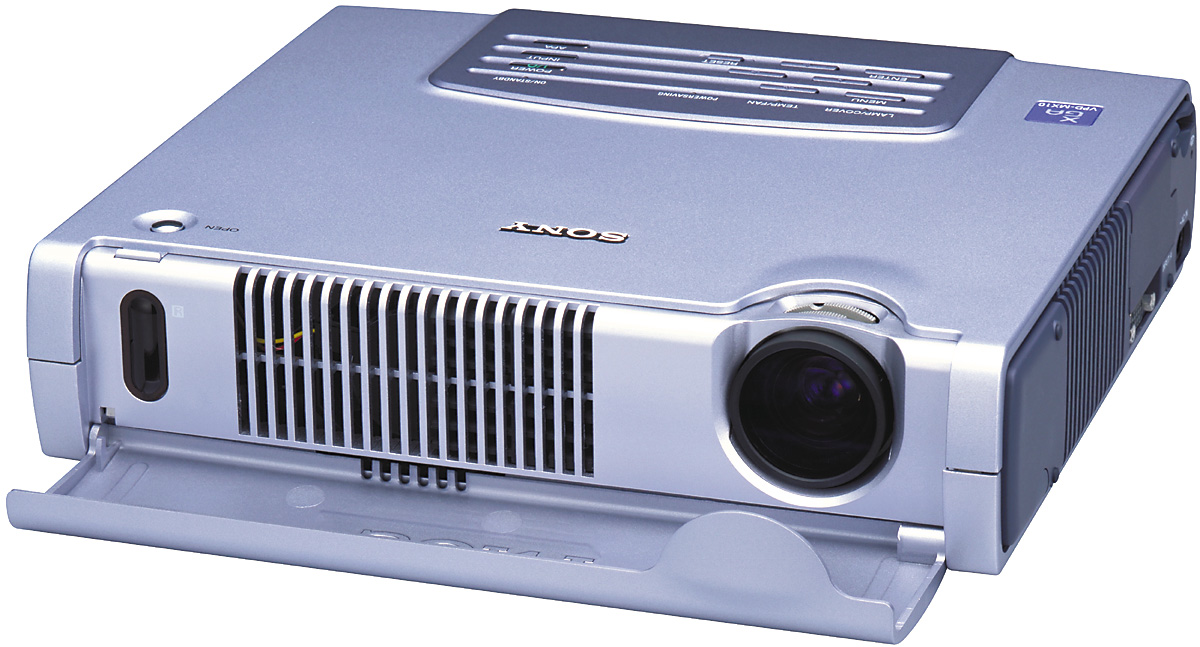

Imagine the power of giving a presentation without the need for a computer. This is the world of the Sony VPD-MX10 micro-portable projector, the industry's first projector to feature compatibility with Memory Stick digital media. Simply take a Memory Stick digital media out of a digital camera and plug it in to the Sony VPD-MX10 to display bright vivid images. Or, take Microsoft® Power Point presentations and move them on to Memory Stick using Sony powerful Projector Station software. Presentations will be possible anywhere, anytime, without the aide of a computer thanks to the power of Memory Stick digital media. But convenience and mobility are just part of the picture. The VPD-MX10 portable projector also features dazzling 1000 ANSI lumens of brightness, XGA resolution with scanning capability up to SXGA resolution, a digital video interface (DVI) connector for all digital connection to computers, and computer mouse control via the projector's remote control. All this packed in to a small, stylish, 4.5lb package! Amazing features, and amazing performance. The Sony VPD-MX10.

Memory Stick digital media slot: Display images from a digital camera, or display Power Point presentations, all without the need for a computer! Simply plug in Memory Stick digital media, and the VPD-MX10 can display images and presentations quickly and easily. Great for consistency and simplicity.

New Innovative Style: The VPD-MX10 sets new standards in visual styling with its simple and elegant external design. A small 4.5lb. chassis houses a bright, high resolution projector than can go where you go and display crisp vivid images.

Handy and portable: The Sony VPD-MX10 is ultra-compact and lightweight, weighing only 4lbs. 6 oz. Images with a brightness of 1000 ANSI lumens are projected with excellent picture quality Its small size and low weight make the VPD-MX10 easy to carry in its supplied carrying bag, so that its clear and brilliant images can be projected anytime, anywhere.

Useful Remote Control Unit: The supplied remote control unit, RM-PJM11, helps make presentations look smart and effective. It has dedicated buttons for the Digital Zoom and Freeze functions. Direct key control of Digital Keystone Adjustment is also possible with this card-size remote control unit.

4-times Digital Zoom: Any part of the projected image can be zoomed in during a presentation to assist in conveying a clear message.

Freeze: The Freeze function displays a freeze-frame while preparing or switching to the next image.

Stereo Speakers: The Sony VPDMX10 is equipped with two speakers, heightening the effectiveness of the presentations by adding stereo audio.

Multiscan Converter: The Sony VPDMX10 has a built-in scan converter and accepts a variety of input signals: composite video, component video and RGB video, as well as PC signals up to XGA. And with presets for 25 different signals, images can be reproduced in the most suitable signal mode in an instant.

Digital Keystone Correction: Keystone distortion of up to 15 degrees can be digitally corrected from the On-Screen Display or the supplied remote control unit. Images can be projected with the correct geometry even where installation space is limited.

APA (Auto Pixel Alignment): With APA, a single-button "press and play" operation, the display is correctly sized and adjusted for optimum picture performance.

Height Adjuster: The projector's shooting angle can be adjusted using the height adjuster, providing flexible projector installation setup.

OSD: The On-Screen Display for projector control is available in seven languages: English, French, Spanish, German, Italian, Japanese and Chinese. Its screen position and color can be altered, depending on user preference.

Resolution:
VIDEO: 600 TV lines, RGB: 1024 x 768 pixels

Acceptable signals:
RGB (fH: 15 to 70 kHz, fV: 48 to 85 Hz), 15 kHz component 50/60 Hz system, composite video, Y/C video

Cabinet color:
Silky Silver

Speaker:
Max. 0.8 W x 2 (stereo)

Power requirements:
AC 100 to 240 V, 50/60 Hz

Power consumption:
Max. 200 W, Standby 8 W

Operating temperature:
0 to 35 °C (32 to 95 °F)

Operating humidity:
35 to 85 %

Dimensions:
10 1/8 x 2 3/8 x 9

SAFETY REGULATIONS:
UL1950 and cUL (CSA No.950) listed, FCC Class B, IC Class B, NEMKO (EN60950), CE (LVD, EMC), C-Tick, CCIB

SUPPLIED ACCESSORIES:
Remote Commander RM-PJ2, Monitor Cable, Carrying Bag, Ferite Core,
CR2025 Battery, Air Filter, AC Power Cord, Operation Manual, Quick Reference Sheet

Projection system:
DLP (1 DMD panel) 1 lens projection system

DMD panel:
0.7 inch DMD panel (786,432 pixels)

Projection lens:
1.2 times zoom lens, F2.4 to 2.8, f27.5 to 33.0 mm

Lamp:
130 W UHP lamp

Screen coverage:
40 to 200 inches (viewable area, measured diagonally)

Light output:
1000 ANSI lumens (ANSI lumens is a measuring method of the American National Standards Institute)

Color system:
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Mass:
Approx. 2.0 kg (4 lb 6 oz)

Heat dissipation:
682.5 BTU

VIDEO IN:

Composite:
Phono, 1.0 Vp-p ±2 dB, sync negative, 75 ohms

Y/C IN:
Mini DIN 4-pin

Y:
1.0 Vp-p ±2 dB, sync negative, 75 ohms

C:
Burst 0.286 Vp-p ±2 dB (NTSC), 75 ohms or 0.3 Vp-p ±2 dB (PAL), 75 ohms

INPUT A:

Analog RGB/Component
R/R-Y
G
G with Sync/Y
B/B-Y
SYNC/HD
Composite sync
Horizontal sync
VD
Vertical sync:

Analog RGB/Component:
HD D-sub 15-pin (female)

R/R-Y:
0.7 Vp-p ±2 dB, positive, 75 ohms

G:
0.7 Vp-p ±2 dB, positive, 75 ohms

G with Sync/Y:
1.0 Vp-p ±2 dB, sync negative, 75 ohms

B/B-Y:
0.7 Vp-p ±2 dB, positive, 75 ohms

SYNC/HD
Composite sync
Horizontal sync:
1.0 to 5.0 Vp-p, high impedance positive/negative

VD
Vertical sync:
1.0 to 5.0 Vp-p, high impedance positive/negative

AUDIO IN:
Stereo mini jack, 500 mV rms, impedance more than 47
