• Excellent picture quality using 3 panel LCD technology
• High light output of 1500 ANSI lumens
• Native XGA resolution (1024 x 768 pixels)
• Compact, lightweight, and flexible
• Supplied remote control
• Quiet operation due to low fan noise
• Projector Station Software

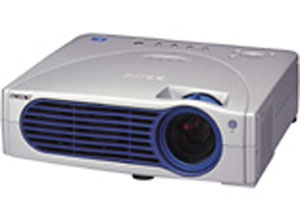

The Sony VPL-CX11 is a small, portable LCD projector with native XGA resolution and 1500 ANSI lumens brightness. Mounting holes make it possible to mount this projector from a ceiling, but the small size and light weight of just 7.7lbs allow it to be taken on the road. In either setting, the performance is first class thanks to Sony's three panel LCD technology which ensures that the colors remain bright and vivid all the time. Additional features include a carrying case, Sony Projector Station software, a remote control, cables needed to connect a computer or a VCR, and a lens cap. The Sony VPL-CX11 is perfect those who demand the best possible performance, terms of brightness and resolution, from a portable projector.

Excellent picture quality using 3 panel LCD technology: Three panel technology allows multiple colors to be reproduced all the time resulting in color saturation that does not vary with image brightness. You get bright, vibrant color, all the time.

High light output of 1200 ANSI lumens*: High brightness counts when you are projecting in an area where the lighting can not be controlled, or when you are projecting on to an extremely large screen. With a brightness of 1500 ANSI Lumens the Sony VPLCX11 can project in bright rooms and on to screens with up to a 300" viewable area measured diagonally. *ANSI lumens is a measuring method of the American National Standards Institute IT7.228. Since there is no uniform method of measuring brightness, specifications will vary among manufacturers

Native XGA Resolution: High resolution is enabled by three LCD panels, each with 1200x768 pixels. As a result, the SONY VPL-CX11 portable portable video projector will preserve the original desktop image and resolution of XGA laptop computers.

Compact, lightweight, and flexible: A retractable carrying handle is easy to reach for outstanding mobility. Can also be used in a variety of installation situations - ceiling, floor or rear projection.

Supplied remote control: The RM-PJM10 remote control provides the digital zoom function and control over the on-screen menu. In addition this handy remote performs the functions of a computer mouse for wire-less control during presentations.

Set-up flexibility: A new height adjuster, as well as the integrated digital
keystone function help make setup fast and simple.

High resolution and flexible input capability: Accepts up to SXGA with a horizontal frequency of 15 to 91 kHz,
Composite video, Y/C video, component video and 15 k RGB video signals.

Projector Station Software: PROJECTOR STATION version 2.0 software makes your projector computer friendly via the USB port connector by allowing your PC to control brightness, contrast, input selection, and many other useful controls. It can also configure the projector remote so that an entire presentation can be launched with just one button.

Quiet operation due to low fan noise: Makes it possible to communicate for hours without fatigue.

Impressive stereo sound with the built-in stereo speakers: Makes it possible to project with sound reinforcement for a complete multimedia experience.

Carrying Case: An attractive carrying case is supplied which is large enough to fit both the Sony VPL-CX11 video projector and a laptop computer.

INPUT A:
Analog RGB/Component HD D-sub 15-pin (female)
R/R-Y 0.7 Vp-p ±2 dB, positive, 75 ?
G 0.7 Vp-p ±2 dB, positive, 75 ?
G with Sync/Y 1.0 Vp-p ±2 dB, sync negative, 75 ?
B/B-Y 0.7 Vp-p ±2 dB, positive, 75 ?
SYNC/HD
Composite sync 1.0 to 5.0 Vp-p, high impedance positive/negative
Horizontal sync 1.0 to 5.0 Vp-p, high impedance positive/negative
VD
Vertical sync 1.0 to 5.0 Vp-p, high impedance positive/negative

MOUSE IN:
6-pin (female)

USB HUB:
UP (B type female) x 1, Down (A type female) x 1

AUDIO IN:
INPUT A: Stereo mini jack, 500 mV rms, impedance more than 47kW; VIDEO: Stereo mini jack, 500 mV rms, impedance more than 47kW

Safety Regulations:
cUL1950 listed, EN60950, UL1950 listed, FCC part 15 class B, IC class B, CE, C-Tick, VCCI B

Supplied Accessories:
Remote CommanderO Remote Control unit RM-PJM10; Signal Cable SMF-410 (2 m): HD D-sub 15-pin to D-sub 15-pin; PS/2 Mouse Cable (2 m); Audio Visual Cable (2 m); USB Cable (2 m) : A type to B type;USB Application Software PROJECTOR STATION version 2.0; AA size Battery (2); Air Filter; AC Power Cord; Operation Manual; Quick Reference Sheet

Projection system:
3 LCD panels, 1 lens projection system

LCD Panel:
0.9-inch p-Si TFT LCD panel with Micro Lens Array 2,359,296 pixels (786,432 pixels x 3)

Projection lens:
1.3 times zoom lens, F1.7 to 2.1, f33.6 to 42 mm

Lamp:
160 W lamp

Screen coverage:
40 to 300 inches (viewable area, measured diagonally)

Light output:
1500 ANSI lumens

Throw distances:
40-inch 1470 to 1770 mm 1470 to 1770 mm
60-inch 2230 to 2680 mm 2230 to 2690 mm
80-inch 3000 to 3600 mm 3000 to 3600 mm
100-inch 3760 to 4510 mm 3770 to 4520 mm
120-inch 4530 to 5430 mm 4530 to 5440 mm
150-inch 5670 to 6800 mm 5680 to 6810 mm
200-inch 7590 to 9090 mm 7600 to 9100 mm
300-inch 11410 to 13660 mm 11430 to 13690 mm

Color system:
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Resolution:
VIDEO: 750 TV lines; RGB: 1024 x 768 pixels
(VIDEO: 600 TV lines, RGB: 800 x 600 pixels)

Acceptable signals:
RGB fH: 15 to 91 kHz, fV: 43 to 85 Hz
15 kHz component 50/60 Hz system, composite video, Y/C video

Cabinet color:
Silky Silver

Speaker:
Max. 0.5 W x 2 (stereo)

Power requirements:
AC 100 to 240 V, 50/60 Hz

Power consumption:
Max. 210 W, Standby approx. 5 W

Operation temperature:
0 to 35 °C (32 to 95 °F)

Operating humidity:
35 to 85%

Dimensions:
285 (W) x 90 (H) x 249 (D) mm (11 1 /4 x 3 5 /8 x 9 7 /8 inches)

Mass:
Approx. 3.5 kg (7 lb 11 oz)

Heat dissipation:
716.6 BTU

VIDEO IN:
Composite Phono type, 1.0 Vp-p ±2 dB, sync negative, 75 ohms
Y/C IN Mini DIN 4-pin
Y 1.0 Vp-p ±2 dB, sync negative, 75 ohms
C Burst 0.286 Vp-p ±2 dB (NTSC), 75 ?or 0.3 Vp-p ±2 dB (PAL), 75 ohms
