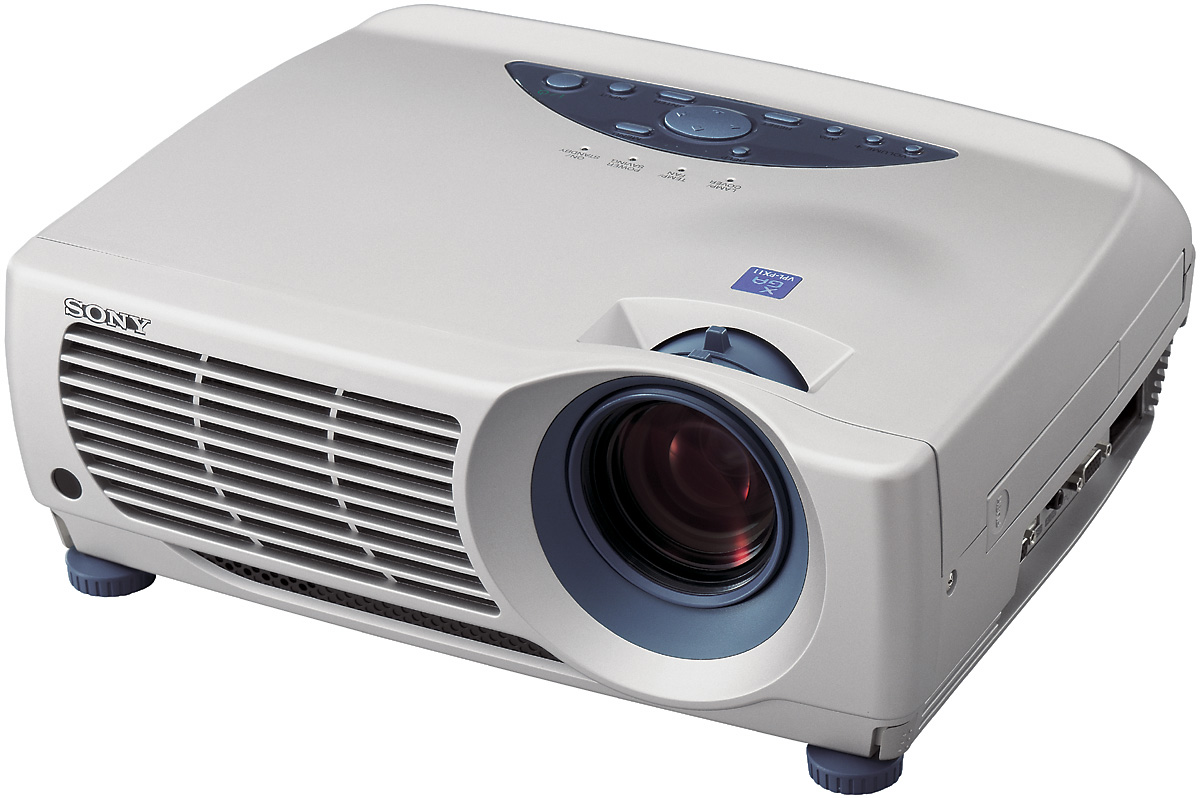

Sony vpl-px11 xga 2000 Ansi Lumens LCD Video Projector
FEATURES
- Sony VPL-PX11 Video LCD Projector
XGA Resolution
2000 ANSI Lumens
Optional FASTFIX™ Lens Attachments
Light enough to travel from room to room
OVERVIEW
- sony vplpx11 portable video lcd projector
The VPL-PX11 outputs 2000 ansi lumens, and projects images as large as 300
inches (viewable area measured diagonally). Mounting holes, and internal software
provide for adaptation to ceiling, floor, and rear screen installations. Optional
lens adaptors, allow the throw distance of the projector to be changed to
accommodate situations where shorter or longer throw distances are required
that what is provided via the supplied standard lens. The VPL-PX11 is extremely
quiet, outputting just 34dB, ensuring that whether it is placed on a meeting
room table or mounted from a conference room ceiling it will allow participants
to engage in normal voice level conversations. If used in a meeting room environment
with the intention to move the unit from room to room, a sturdy, recessed,
handle can be accessed to make the job easier.
SPECIFICATIONS - Sony vplpx11 lcd projector
Image Quality
Resolution
XGA (1024 x 768)
Brightness
2000 ANSI lumens
Contrast Ratio
--
Uniformity
--
No. of Colors
16.7 million
Aspect Ratio(s)
4:3
Display Tech.
0.9-inch p-Si TFT LCD
panel with Micro Lens Array
Compatibility
Data Signals
PC and Macintosh computers
Video Signals
NTSC, PAL, SECAM,
NTSC4.43, PAL-M, PAL-N
Video Resolution
750 TV lines
H
Sync
19-92 kHz
V
Sync
48-92 Hz
Dot Clock
--
Connectivity
Inputs
Component RGB (Shares mini
D-Sub 15-pin) x 1
Composite Video (Single
RCA) x 1
S-Video (Mini DIN 4-pin
(Y/C)) x 1
Computer, Analog RGB
(Standard VGA, mini D-Sub 15-pin) x 1
PS/2 Mouse x 1
Computer Audio (Stereo
mini jack) x 1
Outputs
Built-in Audio
Max. 2 W x 2 (stereo)
Projection Lens
Lens
1.3 times manual zoom lens
, F1.7 to 2.1, f33.6 to 42 mm
Image Size
40-300 in. (viewable area,
measured diagonally)
Throw Distance
4.8-44.6 feet
Keystone Corr.
Digital keystone
adjustment +/-15 degrees
Lens Shift
--
Proj.
Methods
Front/rear,
desktop/ceiling
General
Dimensions
12.9" x 4.4" x 11.25" (W x
H x D)
Unit Weight
10.8 lbs.
Operation
Power Supply
--
Power Consumption
--
Ecomode
No
FCC
Class
FCC Class A, Commercial
Use
Audible Noise
-- dB
Included Accessories
Lamp
200 W lamp
Lamp Life
--
Replacement Lamp
Cost
List Price $500.00
Items Included
Remote Commander RM-PJM15,
Signal Cable SMF-410: HD D-sub 15-pin to D-sub 15-pin,
PS/2 Mouse Cable, USB Cable: A type to B type, USB
Application Software Projector Station, AA size Battery
(2), Air Filter (for replacement), AC Power Cord,
Operation Manual, Installation Manual for Dealers,
Specified/recommended PC Card/Wireless LAN Access Point
List (VPL-PX15 only), Quick Reference Sheet.
Remote Control
Wireless Remote Commander
RM-PJM15 with Mouse function, Digital Zoom function and
Freeze function.
