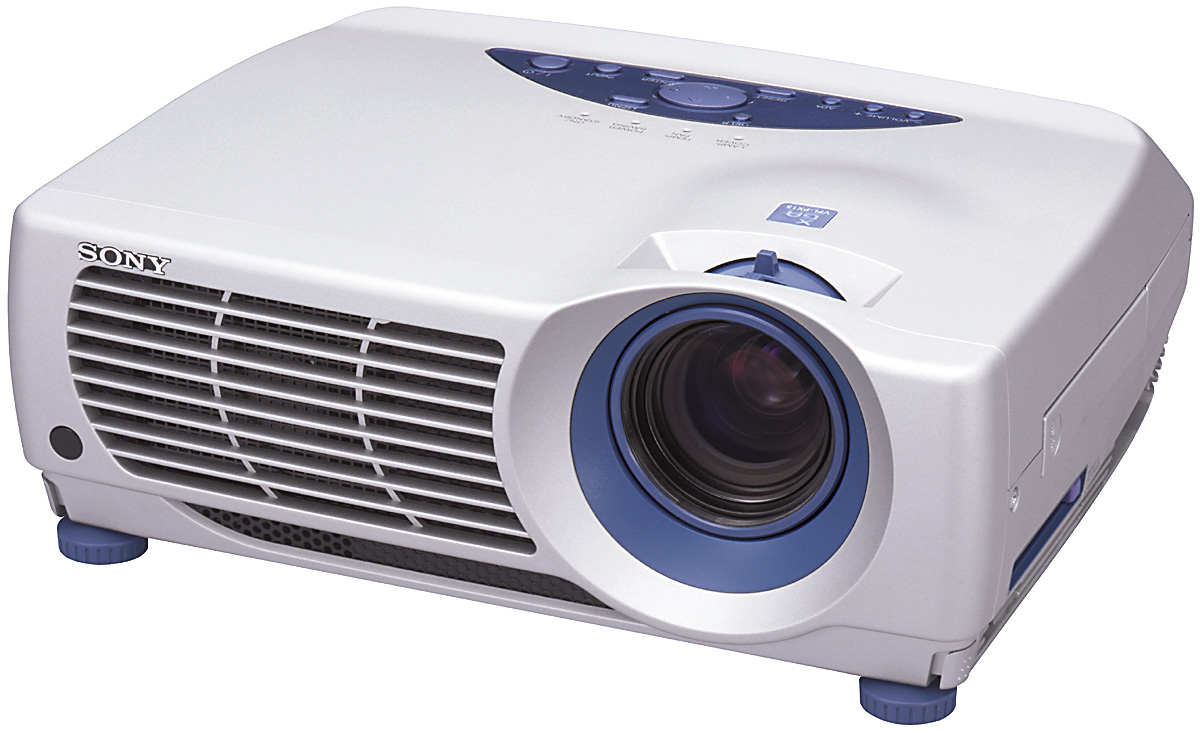

Sony vpl-px15 xga 2000 Ansi Lumens LCD Video Projector
FEATURES
- Sony VPL-PX15 Video LCD Projector
2000 ANSI Lumens
XGA Resolution
Wireless Networking
Capability
Optional FASTFIX Lens
Adaptors
OVERVIEW
- sony vplpx15
portable video lcd projector
The
Sony VPL-PX15 is the perfect
video projector for the expanding wireless business world. It features 2000 ANSI
lumens brightness, XGA resolution, and wireless networking capability. Using
the projectors browser, users can surf the internet, and thanks to assignable
IP addresses, the LCD projector can be accessed remotely via the internet for
maintenance, or for the purpose of uploading files to the projectors memory.
Optional FASTFIX lens adaptors ensure the LCD projector can be used in short throw
or long throw applications. A handle makes it convenient to carry the projector
from room to room, while mounting holes are conveniently located for permanant
installations.
SPECIFICATIONS
-
SONY VPLPX15 Portable Video Lcd Projector
Image Quality
Resolution
XGA
(1024 x 768)
Brightness
2000 ANSI lumens
Contrast Ratio
--
Uniformity
--
No. of Colors
16.7 million
Aspect Ratio(s)
4:3
Display Tech.
0.9-inch p-Si TFT LCD
panel with Micro Lens Array
Compatibility
Data Signals
PC and Macintosh computers
Video Signals
NTSC, PAL, SECAM,
NTSC4.43, PAL-M, PAL-N
Video Resolution
750 TV lines
H
Sync
15-91 kHz
V
Sync
43-85 Hz
Dot Clock
--
Connectivity
Inputs
Component RGB (Shares mini
D-Sub 15-pin) x 1
Composite Video (Single
RCA) x 1
S-Video (Mini DIN 4-pin
(Y/C)) x 1
Ethernet (Network
addressable, RJ45) x 1
802.11b (Wireless, 11
mbps) x 1
Computer, Analog RGB
(Standard VGA, mini D-Sub 15-pin) x 1
PCMCIA (Memory card slot)
x 1
PS/2 Mouse x 1
USB Mouse x 1
Computer Audio (Stereo
mini jack) x 1
Outputs
Built-in Audio
Max. 0.5 W x 2 (stereo)
Projection Lens
Lens
1.3 times manual zoom lens
, F1.7 to 2.1, f33.6 to 42 mm
Image Size
40-300 in. (viewable area,
measured diagonally)
Throw Distance
4.8-44.6 feet
Keystone Corr.
Digital keystone
adjustment +/-15 degrees
Lens Shift
--
Proj.
Methods
Front/rear,
desktop/ceiling
General
Dimensions
12.9" x 4.4" x 11.25" (W x
H x D)
Unit Weight
11.7 lbs.
Operation
Power Supply
--
Power Consumption
300
Ecomode
No
FCC
Class
FCC
Class A, Commercial Use
Audible Noise
-- dB
Included Accessories
Lamp
200 W lamp
Lamp Life
--
Replacement Lamp
Cost
List Price $500.00
Items Included
Remote Commander RM-PJM15,
Signal Cable SMF-410: HD D-sub 15-pin to D-sub 15-pin,
PS/2 Mouse Cable, USB Cable: A type to B type, USB
Application Software Projector Station, AA size Battery
(2), Strap for Remote Commander (VPL-PX15/PX10 only),
Air Filter (for replacement), AC Power Cord, Operation
Manual, Operation Manual for Networking (VPL-PX15 only),
Installation Manual for Dealers, Specified/recommended
PC Card/Wireless LAN Access Point List (VPL-PX15 only),
Quick Reference Sheet.
Remote Control
Wireless Remote Commander
RM-PJM15 with Mouse function, Digital Zoom function and
Freeze function.
