• 3000 ANSI Lumens
• XGA Native Resolution
• Ultra High Picture Performance with 3D Gamma Correction
• Supplied Standard Lens, Optional Lenses Available
• Suitable for both portable and installation applications

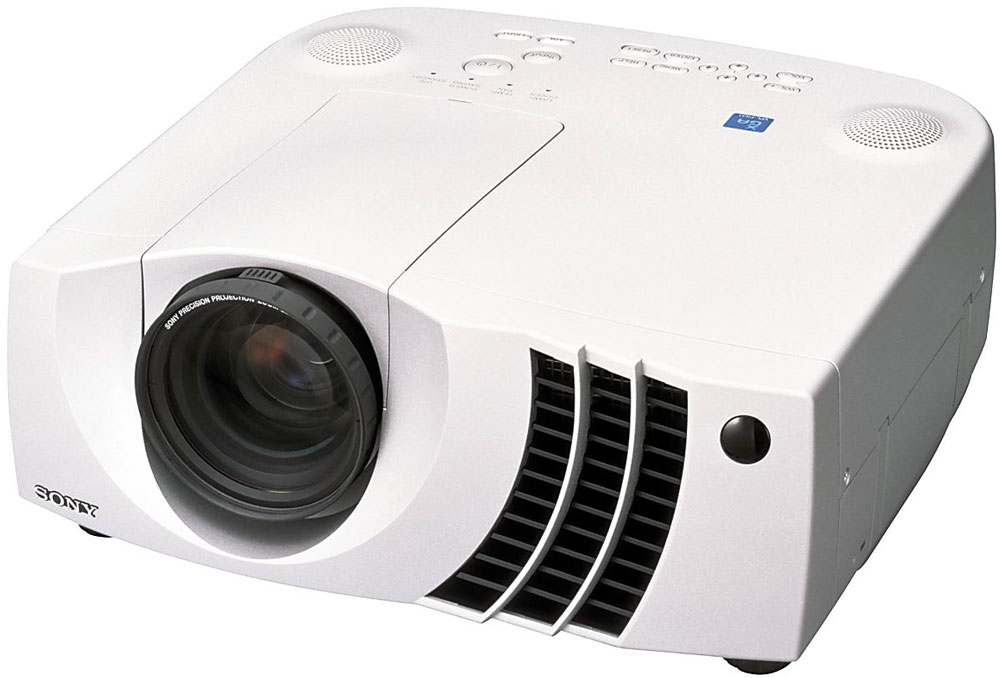

The Sony VPL-PX32 is an extremely flexible video projector designed to meet the various demands of the most exacting Audio/Visual professionals. The high brightness of 3000 ANSI lumens is perfectly complemented with 3D Gamma correction technology to achieve outstanding uniformity and grey scale reproduction. The LCD projector, which can be used for installation or portable applications, also has the ability to handle variable throw distances by use of optional lenses. Finally, a robust input panel provides inputs and connections to today's complex integrated control systems to ensure seamless operation. When performance, reliability, and the ability to integrate with complex systems are key criteria, the Sony VPL-PX32 is the perfect choice.

HDTV Ready: HDTV Ready: The SONY VPL-PX32 can accept a variety of signals for excellent compatibility with sources of today and tomorrow. Sources include, but are not limited to, 480/60p, 575/50p, 1080/50i, 1080 &1250/50i, 720/60p, and 720/50p.

Flexible Input Capability: Flexible Input Capability: Composite, S Video, component, YCbCr, YPbPr, and RGB.

Digital Keystone Correction: Digital Keystone Correction: Corrects for image distortion caused by projecting the image too high relative to the projection angle.

Advanced APA Function: Advanced APA Function: Auto Pixel Alignment allows the users to lock to source signal with the touch of a button for best appearance

USB Hub: USB Hub: Connect to other video projectors using Projector Station Software and control up to 127 different projectors from one computer

Digital Zoom: Digital Zoom: Up to four times enlargement for highlighting spreadsheets with small text, flow charts, and other images and drawings.

Bi-level Lamp Power Selector: Bi-level Lamp Power Selector: Lamp Mode can be set to High or Low depending on ambient light conditions.

Projection lens:
Approx. 1.3 times zoom lens, F1.7 to 2.0, f36.7 to 47.8 mm

Projection system:
3 LCD panels, 1 lens projection system

Lamp:
200 W UHP Lamp

Screen coverage:
40 to 300 inches (viewable area, measured diagonally)

Light output:
3000 ANSI lumens (ANSI lumens is a measuring method of the American National Standards Institute IT7.228)

Color system:
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N (automatically/manually selected)

Resolution:
Video: 750 TV lines, RGB: 1024 x 768 pixels
RGB (fH 15 to 91 kHz, fV: 43 to 85 Hz)

Acceptable signals:
15 kHz component 50/60 Hz system, Progressive component 60 Hz system, DTV (480/60P, 575/50P, 1080/50I, 720/60P, 720/50P), Composite video, Y/C video

Cabinet color:
Silky Silver

Speaker:
Max. 5 W Wide frequency range 3 speakers
Woofer: 65 mm (2 5 /8 inches) diameter, Max. 3 W
Tweeter: 45 mm (1 3 /16 inches) diameter, Max. 1 W x 2 (Stereo)

Power requirements:
100 to 240 V, 50/60 Hz

Power consumption:
Max. 290 W, Standby 5 W, Power saving mode 50 W

Operating temperature:
0 to 40 °C (32 to 104 °F)

Operating humidity:
35 to 85 %

Dimensions:
339 (W) x 142 (H) x 335 (D) mm (13 3 /8 x 5 5 /8 x 13 1 /4 inches)

Mass:
Approx. 7.2 kg (15 lb 14 oz)

Heat dissipation:
989.6 BTU

Fan noise:
Less than 34 dB (when lamp mode set to LOW: 30 dB)

Composite:
Phono type, 1.0 Vp-p ±2 dB sync negative, 75 W

Y/C IN:
Mini DIN 4-pin

Y:
1.0 Vp-p ±2 Db sync negative, 75 W

C:
Burst 0.286 Vp-p ±2 dB (NTSC), 75 ??or 0.3 Vp-p ±2 dB (PAL), 75 W

INPUT A: Analog RGB:
HD D-sub 15 pin (female)/5 BNC (female)/Digital Interface Switched HD D-sub 15-pin (female)

R:
0.7 Vp-p ±2 dB positive, 75 W

G:
0.7 Vp-p ±2 dB positive, 75 W

G with Sync:
1.0 Vp-p ±2 dB sync negative, 75 W

B:
0.7 Vp-p ±2 dB positive, 75 W

SYNC/HD:

Composite sync:
1.0 to 5.0 Vp-p, high impedance positive/negative

Horizontal sync:
1.0 to 5.0 Vp-p, high impedance positive/negative

Vertical sync:
1.0 to 5.0 Vp-p, high impedance positive/negative

MOUSE IN:
Square 13-pin (female)

AUDIO IN:
Stereo mini jack, 500 mV rms, impedance more than 47 ??

INPUT B: Analog RGB/Component:
5 BNC (female)

R/R-Y/PR:
0.7 Vp-p ±2 dB positive, 75 W

G:
0.7 Vp-p ±2 dB positive, 75 W

G with Sync/Y:
1.0 Vp-p ±2 dB sync negative, 75 W

B/B-Y/PB:
0.7 Vp-p ±2 dB positive, 75 W

SYNC/HD:

Composite sync:
1.0 to 5.0 Vp-p, high impedance positive/negative

Horizontal sync:
1.0 to 5.0 Vp-p, high impedance positive/negative

USB HUB:
Up (B type: female) x 1, Down (A type: female) x 1

MOUSE IN:
Square 13-pin (female)

AUDIO IN:
Stereo mini jack, 500 mV rms, impedance more than 47 kW

MONITOR OUT*2:
HD D-sub 15-pin (female)
R/R-Y, G/Y, B/B-Y: Gain Unity, 75
SYNC/HD, VD: 4.0 Vp-p (open), 1.0 Vp-p (75 ?)

AUDIO OUT (Variable out):
Stereo mini jack, max. 1 V rms, when the input signal is 500 mV rms, impedance less than 5 kW

Remote (RS-232C):
D-sub 9-pin (female)

Control S IN/PLUG N POWER:
Stereo mini jack
5.0 Vp-p, plug in power, DC 5 V

Laser type:
Class II

Wavelength:
645 nm

Output:
1 mW

Safety Regulations:
UL1950, cUL1950, DHHS (Laser), FCC Class A, IC Class A, EN 60 950 (Nemko),
CE, EN 60 825-1 (Laser), C-Tick, CCIB, VCCI class B, JEIDA
