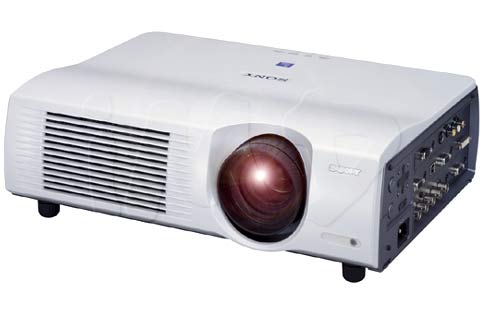

Sony vpl-px35 xga 2600 Ansi Lumens LCD Video Projector

The VPL-PX35 SuperBright LCD Data Projector is a flexible and powerful projector which can meet the needs of many installation, and networked applications. Outputting 2600 ANSI lumens, it is bright enough to light up very large screens while the high contrast ratio ensures crisp and detailed images. It features native XGA resolution, the ability to be tilted up or down by 90 degrees, TCP/IP network control, a unique password authentication system, and can be fitted with optional lenses for applications which require a shorter or longer throw distance.

SPECIFICATIONS - sony vplpx35 portable video lcd projector

Image Quality
Resolution		XGA (1024 x 768)
Brightness		2600 ANSI lumens
Contrast Ratio		--
Uniformity		--
No. of Colors		16.7 Million Colors
Aspect Ratio(s)		4:3
Display Tech.		0.99-inch p-Si TFT Sony LCD panel
Compatibility
Data Signals		Native XGA; Compress up to UXGA
Video Signals		NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N (automatically/manually selected); DTV:(480/60i, 575/50i, 480/60p, 540/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i)
Video Resolution		750 TV lines
H Sync		19 to 92 kHz
V Sync		48 to 92 Hz
Dot Clock		--
Connectivity
Inputs		Component RGB (Shares mini D-Sub 15-pin) x 1 Composite Video (Single RCA) x 1 Screen Trigger (12V DC power outlet) x 1 Ethernet (Network addressable, RJ45) x 1 RGBHV (BNC x 5) x 1 Computer, Analog RGB (Standard VGA, mini D-Sub 15-pin) x 2 Computer, Digital RGB (DVI (Digital Visual Interface) 29-pin) x 1 RS-232 (Serial) x 1 Computer Audio (Stereo mini jack) x 3
Outputs		Computer, Analog RGB (Standard VGA, mini D-Sub 15-pin) x 1 Computer Audio (Stereo mini jack) x 1
Built-in Audio		Stereo speakers system 40 x 70 mm (1 5/8 x 2 7/8 inches) Max. 2W x 2
Projection Lens
Lens		Approx. 1.3 times zoom lens, F1.7 to 2.3, f37.6 to 48.8 mm
Image Size		40 to 300 inches (viewable area, measured diagonally)
Throw Distance		58.9 to 571 inches
Keystone Corr.		Digital keystone adjustment +/-20 degrees
Lens Shift		No
Proj. Methods		Front/rear, desktop/ceiling
General
Dimensions		16.6" x 4.6" x 12.5" (W x H x D)
Unit Weight		16.1 lbs.
Operation
Power Supply		100 to 240 V, 50/60 Hz
Power Consumption		365 Watts
Ecomode		No
FCC Class		FCC Class A, Commercial Use
Audible Noise		-- dB
Included Accessories
Lamp		265 W UHP Lamp
Lamp Life		--
Replacement Lamp  Cost		List Price $500.00
Items Included		Remote Commander, Monitor Cable (2 m): HD D-sub 15-pin to HD D-sub 15-pin, USB Cable A type to B type (2 m), AA size Battery (x 2), Lens Cap, Air Filter, Operating Manual, Installation Manual for dealers
Remote Control		Sony Remote Commander included
Carry Case
Warranty
Projector		Two years parts and labor.
