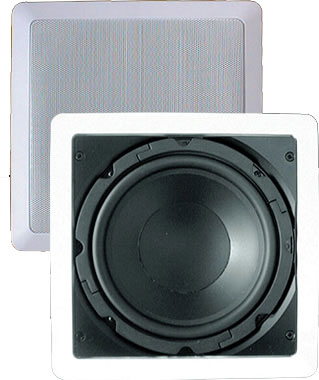

OVERVIEW - Ridley acoustics iwsd200 8 inch Dual Voice Coil subwoofer with crossover square frame:
The new IWSD200 passive subwoofer is specifically designed for smaller rooms that require proper bass to supplement small satellite speakers. The unit is powered by both main channels of your surround receiver. The use of a inwall subwoofer eliminates the unsightly box of a powered subwoofer yet still provides full bass to your surround system.
FEATURES - Ridley acousticsiwsd200 8 inch dual voice coil subwoofer with crossover square frame:
8" Dual Voice Coil Carbon Fiber Subwoofers
Dual on board cross-overs
switching for high pass output.
Frequency Response: 30 Hz - 120 Hz
Power Handling: 100 watts max.
Impedance: 8 Ohms
10 year warranty
Tuned twin port design
Tuned for optimum performance in a wide variety of wall
configurations, including standard 2" x 4" & 2" x 6", 7 ft 10" high residential walls . *
Includes port plugs
Frequency Response: 25 - 200 Hz
Sensitivity: 87 dB @ 1 W/m
Power Handling: 150 Watts max.
Impedance: 8 Ohms nominal
White powder coated perforated aluminum grille
10 year warranty
SPECIFICATIONS - RIDLEY ACOUSTICS IWSD200 8 INCH DUAL VOICE COIL SUBWOOFER WITH CROSSOVER SQUARE FRAME:
Cut-out: 8¾" x 8¾" x 4" Deep
Overall: 10" x 10"
* For optimal performance we recommend wall cavity contain noise deadening insulation
