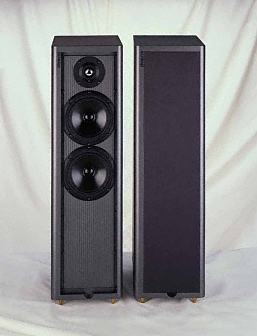

This 3 element floor standing tower
produces all the depth and clarity you will ever need for your main
audio or home theater speakers. The P 6.3 is for serious music and
movie lovers. It delivers subwoofer level deep, tight bass down to
29 Hz with our dual 6 1/2" woofers and 3 patented Diaduct port
tubes. Matched to our 1" metal dome tweeter, the P 6.3 will
rival other floor standing models at 3 times the price. The finish
is charcoal metallic with gold plated binding posts, internal
bracing and split shelving crossover topology, complemented by our
10 year parts & labor warranty.
FEATURES - Pinnacle platinum
performance p6-3 tower floor standing speaker
Features:
Video Shielded
Gold plated binding posts
Solid Brass Isolation Cones
Mylar capacitors
Split ShelvingTM
crossover system for maximum bass performance
Internally braced
Triple ported
10 Year Transferable Warranty on
parts & labor
Designed and Manufactured in the
USA
System
Type: 2-Way, 4th Order rear vented with patented
Diaduct tuning
Component
Drivers:
1" liquid
cooled metal dome tweeter
(2) 6 1/2" fibercone woofers
with rubber surrounds and cropped baskets
Frequency
Response:29-21 kHz (+/- 3 dB)
Crossover
Frequency: 2.5 kHz
Recommended
Amplifier Power: 20-200 Watts RMS per channel
Operative
Power Range: 15-125 Watts, 300 Watts Peak
Sensitivity:
92 dB (2.83 Volts Pink Noise @ 1 Meter)
Nominal
Impedance: 8 Ohms
Dimensions:
9 7/16" Wide x 33" High x 13 1/2" Deep
