No Longer Available

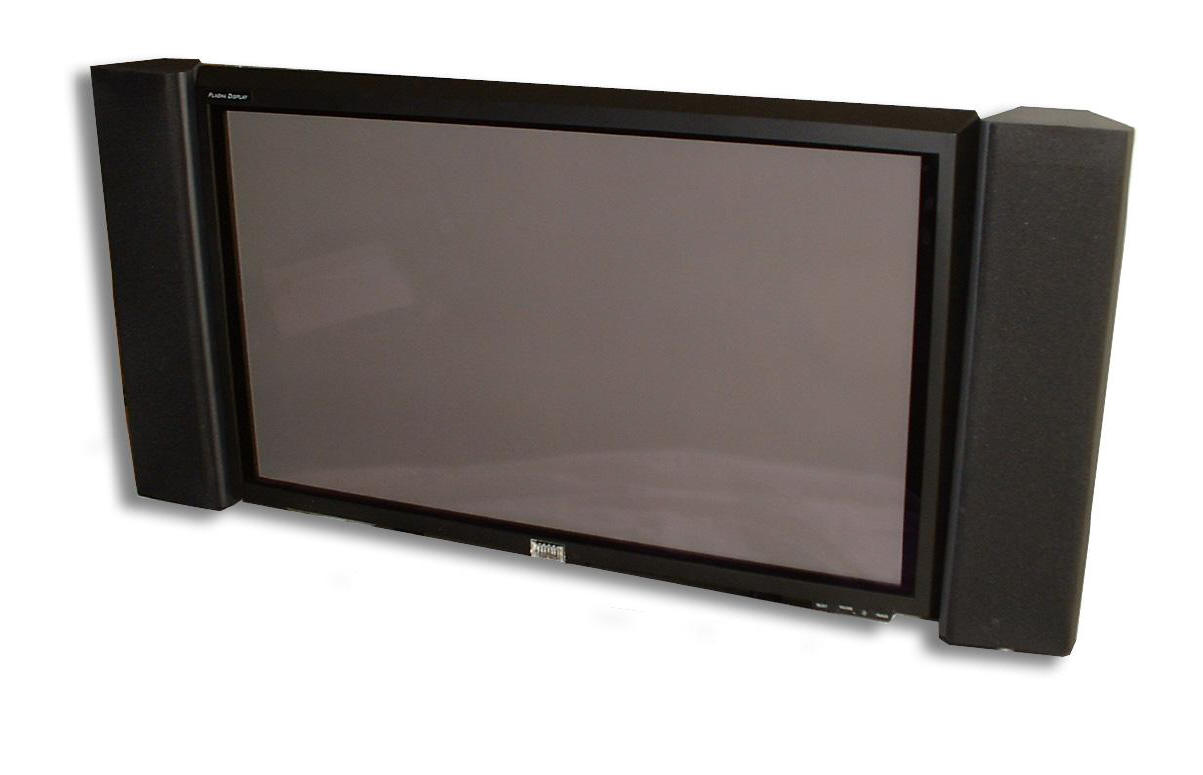

(shown with optional speakers)
Click for Larger Image

*Note - This price includes Monitor, Table Stand and TV Tuner

Studio Experience PD-3231 32-inch Flat panel monitor plasma display

OVERVIEW - Studio Experience PD3231 32 inch HDTV Plasma TV

The glass panel used for the Studio Experience pd3231 plasma tv is the exact same glass panel that is used for the Sony PFM32C1.  Both these companies get this part from the same source (Fujitsu Corporation). The Studio Experience pd3231 plasma tv flat panel monitor is an amazing display that incorporates the ALIS system.  The pd3231 plasma tv is ideally designed to display SDTV, HDTV and all other DTV signals as well as native computer resolutions up to XGA. Weighing just 49 pounds, this plasma screen wonder can easily be mounted to any place you can imagine.

With the pd-3231 plasma display wide range of features, this 32 inch diagonal monitor can be used in home theater settings, classrooms, corporate boardrooms, or any place that clear images and easy functionality are necessary. This flat panel display also has the ability to accept a wide range of video signal formats. Whether it is to increase the impact of your presentation or add a WOW value to your home theater, the Studio Experience pd-3231 flat panel monitor is the perfect plasma display.  TV Tuner and Table Stand are included in the great plasma tv deal.

SPECIFICATIONS - Studio Experience PD-3231 32 inch Plasma Display

• Screen Size: 32 inch/81.6cm (diagonal) x 28.2 inch/71.6cm (W) x 15.7 inch/39.9cm (H)
• Resolution: 852 x 1024 pixels
• Aspect Ratio: 16:9
• Color Resolution: 16.7 million colors
• Viewing Angle: 160 degree
• Brightness: 600 cd/m²
• Contrast: 450:1
• Power Consumption: <280 W
• Computer Resolution: Compatible up to 1024x768
• Video System: NTSC/PAL/SECAM
• Video Signal: 1080i, 720p, 480p, 480i
• Audio System: AMP: 7Wx2; External Speaker: 7Wx2 (lever terminal)
• Video Input Terminal:
  • RGB Input (VGA1) RGB 15-pin x 1 D-type
  • Audio Input Mini jack (L/R) x 1
• Video Output Terminal:
  • RGB Output RGB 15-pin x 1 D-type (for VGA only)
  • Audio Output RCA jack (L/R) x 1
  • Speaker Output Speaker Output (L/R) x 1
  • TV Turner Slot: For optional TV turner module
• Weight:
  • Approx. 49.6lbs. / 22.5kg - without stand
  • Approx 55.1lbs. / 25kg. - with stand
• Dimension (W x H x D):
  • 32.2 inch x 19.1 inch x 3.2 inch / 81.6cm x 48.6cm x 8.2cm (without stand)
  • 32.2 inch x 21.8 inch x 8.3 inch / 81.6cm x 55.6cm x 21cm (with stand)
• Packing Dimension: 41 inch x 28.1 inch x 15.1 inch / 104cm x 71.4cm 38.4cm
• Ac Input: 90~110Vac / 216 ~ 264Vac, 50Hz / 60Hz
• Warranty: 1 year parts & labor

Studio Experience PD-3231 32 inch Plasma Display PD3231 Tv Tuner Specs:

Video System: NTSC (Progressive Scan), Compatible: 1080i, 720p, 480p, 480i
Input Signal: Component: Y, Cb, Cr/ Y, Pb, Pr, Video: Composite, RF, S-Video
Output: Audio, Video
I/O Terminal:
Input:

• Composite Video BNC x 1 (S-Video Priority)
• S-Video Mini DIN 4-pin x 1
• Component BNC x 3
• Audio RCA jack (L/R) x 2
• RF F Connector

Output:

• Composite Video BNC x 1 (for RF in, AV in & S-Video in)
• Audio RCA jack L/R in x 1 (for RF in, AV in)

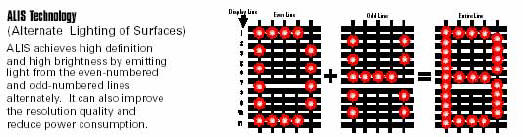

A.L.I.S. System in the Studio Experience PD-3231 Plasma TV

By lighting even lines and odd lines alternately, this system enables higher definition and brightness in the vertical direction. Because lighting duty is only half of conventional systems, a longer service life is assured.

Manufacturer Homepage:  www.studioexperience.com
