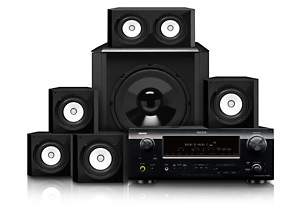

The Brighton 5.1 Cube system will amaze you with its thunderous yet precise performance, stunning cosmetics, and its remarkable ease of use. Both models feature a forward firing active PolyCel driver and dual Passive Depth Radiators for a total of three drivers per sealed enclosure and are timbre matched to all Sinclair speakers, including the Brighton and Sculptura series.
The 5.1 Cube system feature a beautiful combination of textured black and black high gloss that will make it the cosmetic highlight of any room, and the sealed enclosure means it’s more versatile with regards to placement. Ported models can interact negatively with room boundaries and chuffing, or noisy air flow turbulence, can be audible when placed near the listener, whereas the Brighton subs have no such distortion.
Driver: 3" Woven Fibreglass Hybrid
Sensitivity: 88dB
Nominal Impedance: 8 ohm
Maximum Amplifier Power: 100 watts
Frequency Response: 120hz-18kHz
Dimensions (HWD): 11 x 11 x 10cm
CENTER CHANNEL
Driver: Dual 3" Woven Fibreglass Hybrid
Sensitivity: 88dB
Nominal Impedance: 8 ohm
Maximum Amplifier Power: 100 watts
Frequency Response: 120hz-18kHz
Dimensions (HWD): 11 x 22 x 10cm
SUBWOOFER
Driver: 6.5" Active PolyCel woofer
Dual 6.5" Planar Depth Radiators
Amplifier: 100 watts
Frequency response: 38Hz-150Hz
Dimensions: 27 x 27 x 27cm
Speaker Technology:
Woofer
The Injection Molded Polypropylene Cones produce excellent waveform properties and tight tolerances to ensure the Sculptura subwoofer meets Sinclair’s performance standards.
Planar Depth Radiators
Sheets of thin resin bonded wood fibers are heat formed, pressurized into planar radiators, and supported by dual surrounds. In the LS210 sealed cabinet, it provides the benefits of a tuned port without the noise caused by air turbulence.
Aluminum Phase Plug
The Injection Molded Polypropylene Cones produce excellent waveform properties and tight tolerances to ensure every Sculptura driver meets Sinclair’s performance standards. Cones are graphite, carbon and mica injected to create a very strong yet light driver material.
AVR689 Denon 560 watt 7.1 Multi-Zone Home Theater Receiver:
7.1 Digital Surround
7 x 80 watt Ouput
Dolby TrueHD, DTS-HD
3 HDMI Inputs, 1 HDMI Output
1080p Video Passthrough
Sirius & XM Satellite Radio Ready
Denon avr689 560 watt 7.1 Multi-Zone Home Theater Receiver:
Packed with features to maximize audio and video fidelity, the AVR-689 is a powerful 7.1 channel receiver that incorporates the latest surround sound decoding technologies, along with sophisticated video signal handling and upconversion that allows both HDMI v1.3a video inputs as well as providing component video output. The surround section features the same precision 32 bit floating point DSP technology found on our top-line models, and includes a full array of surround sound decoding functions, including Dolby Digital EX as well as DTS ES 6.1 discrete and matrix decoders for the most thrilling, theater-like surround sound experience.
Audio
7 Amplifier Channels, 80w Each
Audyssey Dynamic Volume and Dynamic EQ
Sirius Satellite Radio ready
Discrete devices for ultimate perfomance in each block
32-bit floating point high precision DSP
Minimum signal path design
Direct Mechanical Ground for stable drive
Dual power transformers
Denon customized block capacitors
Compressed Audio Restorer
MultEQ Auto setup and Room EQ
Three Quick Select Buttons
Auto setup, auto surround, auto signal detection
Auto Surround Back Channels on for auto-detection of supporting sources
Auto Surround mode
Audio Delay function (max. 6 frames or 200 msec)
Night Mode for neighbour friendly listening
Muting level settings (Full / -40dB / -20db)
Audio Level Memory, capable of correcting different signal levels for each input device
Volume Level Limiter, for setting maximum volume levels
