High performance, 10-bit multi-standard video decoder
High quality super-adaptive comb filter with 2D Y/C separation
Flexible Digital Audio switching and routing - four audio inputs
and two audio outputs
Precision AV LipSync
intelligent digital Audio Delay technology to match Audio & Video
timing
SUMMARY -Dvdo mm602 iScan HD+ High Resolution HDTV Video Scaling Processor
with DVI/HDCP:
The DVDO iScan HD+ is a high resolution video scaling processor and
A/V switcher that sets a new standard for upconverting,
cross-converting and even downconverting all your video sources.
Whether it's your VCR outputting 480i, your DVD player at 480p, or
your Set-top-box at 720p or 1080i, the iScan HD+ will scale the
output to perfectly match the optimum resolution of your display -
720p, 1080i, or any user-defined resolution up to 1080p. It is HDCP
compliant over DVI, and also accepts your legacy 480i/480p analog
sources. The iScan HD+ functions as your complete A/V hub, providing
simultaneous audio/video switching with automatic video upconversion/processing.
What's the Difference Between the iScan HD and iScan HD+ ?
The only difference between the iScan HD and iScan HD+ is in the
operation of the DVI input and output. Otherwise, both models have the
same performance, including inputs, outputs, and features.
The iScan HD+ is HDCP compliant and processes HD
formats (720p, 1080i) as well as SD formats (480p,576p) on its DVI
input. The iScan HD is HDCP agnostic and supports "processing of" SD
formats (480p, 576p) on its DVI input. The iScan HD will pass-through
all HDCP signals regardless of resolution on its DVI input.

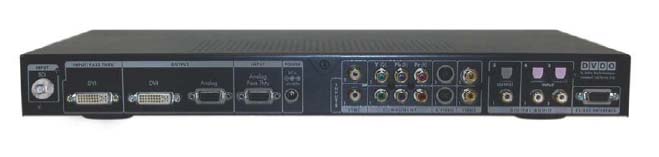

iScan HD+ Rear Panel View
(Click for Larger Image)
DETAILED SPECS -DVDO MM602 HDTV VIDEO SCALER:
Inputs
Nine video inputs
Two Composite inputs accept standard NTSC, PAL, and SECAM
signals
Two S-Video inputs accept standard NTSC, PAL, and SECAM signals
Two Component Video inputs (YPbPr or RGB/S) process 480i, 480p,
576i, 576p signals; pass-through 720p and 1080i High Definition
signals
One VGA Analog Passthrough input - VGA HD-15 connector
One DVI input - DVI-I connector
HD processes 480p, 576p signals; passthrough 720p, 1080i
signals
HD+ processes 480p, 576p, 720p, 1080i signals with HDCP
One SDI (Serial Digital Interface (Optional)
Four digital audio inputs - can be assigned individually to any of
the video inputs:
Two Digital Optical inputs
Two Digital Coaxial input
Accepts S/PDIF Dolby Digital, DTS, LPCM @ 44Ksps to 96 Ksps, 16
bits to 24 bits
Outputs
One DVI Output - DVI-I connector
One Analog Video Output - VGA HD-15 connector
RGB or YPbPr colorspace
Separate H&V sync, composite sync, or sync-on-video
(bi-level or tri-level sync)
Two digital audio outputs
One Digital Optical output
One Digital Coaxial output
RS-232 port
For software downloads and automation control
Controls
Infrared remote control with direct access codes or manual
controls on front panel
Functions accessible via either On Screen Display (OSD) or
front-panel LED display
Fully programmable controls for each separate video input with
non-volatile memories:
