Dvdo MM603 iScan
VP30 HDTV Video Scaling Processor with HDMI Switching
Our Price $1397.24 Including 3 - 5 Day Shipping
Back to
HDTV Video Processors |
|
|
Click For Larger Image |
DVDO MM603 iScan
VP30 HDTV Video Scaling Processor with HDMI Switching
|
OVERVIEW - Dvdo mm603 iScan
VP30 HDTV Video Processor:
The DVDO iScan VP30 is the next generation
high-resolution video processor and A/V switcher that sets a new
standard for up, down, and cross-converting all of your video sources.
Whether it's your 480i cable feed, 480p DVD player, or 720p or 1080i
HD set-top-box signal-the iScan VP30 scales your video output to
perfectly match the optimum resolution of your display, up to 1080p! Plus, it's HDCP compliant over each of the 4 digital HDMI inputs, and accepts any legacy 480i/480p analog sources. Serving as your complete A/V hub, the iScan VP30 provides simultaneous audio/video switching with "any rez in - any rez out" video conversion and one clean wire to your display. Add the iScan VP30 to your home theater today and prepare to be visually Captivated!
|
FEATURES - Dvdo MM603 iScan
VP30 HDTV Video Scaling Processor with HDMI Switching:
- ABT's Precision Video Scaling II technology: 10-bit Scaling, Enhanced Sharpness Control
- Motion and source adaptive video deinterlacing for NTSC (3:2 and 2:2 pulldown; video) and PAL/SECAM (2:2 pulldown; video) sources
- User defined output resolution from 480p to 1080p
- Analog HD Transcoding and Processing
- Flexible Input and Output Aspect Ratio Control
- Display Profiles – For multiple display configurations (4)
- ABT's RightRate High-Performance Framerate Conversion
- ABT's AutoVFR - Intelligent Component Video Inputs with Automatic Video Format Routing
- Advanced Source Transition Management provides seamless transitions between source types
- ABT's AutoCUE-C - Automatic Chroma
Up sampling Error detection & correction
- 10-bit, 300 MHz instrumentation-quality DACs, with up to 10x
over sampling and 2X over sampling for 1080p
- Full-frame Timebase Correction
- High performance, multi-standard video decoders (10-bit: 480i/576i; 12-bit: 480p/576p/720p/1080i)
- High-quality super-adaptive comb filter with 2D Y/C separation
- Flexible Digital and Analog Audio switching and routing – four digital audio inputs and one analog audio input with two digital audio outputs (both active)
- ABT's Precision AV LipSync intelligent digital audio delay technology to match Audio & Video timing
What's the Difference Between the iScan VP30 and iScan VP20 ?
- An additional HDMI input (total of 4)
- Framerate conversion that allows source-locked 48/72Hz output for film-based sources
- Input and Output Aspect Ratio support for non-standard content and displays
- Panamorphic/Anamorphic Lenses on front projectors (constant height configurations)
- User definable content and display aspect ratio
- Analog Component/RGBHV input using high quality BNCs
- Analog Component/RGBHV output using high quality BNCs
- 10-bit, 300 MHz instrumentation-quality DACs with up to 10x over sampling (2x for 1080p)
- Display Profiles - For multiple display configurations (10)
- Additional test patterns to assist in display calibration
- User-definable Output Resolutions between 480p and 1080p (27 Factory Defined Resolutions)
- Optional SD-SDI Input Module for the absolute best picture quality from a standard definition digital source that has an SD-SDI output
|
|
|

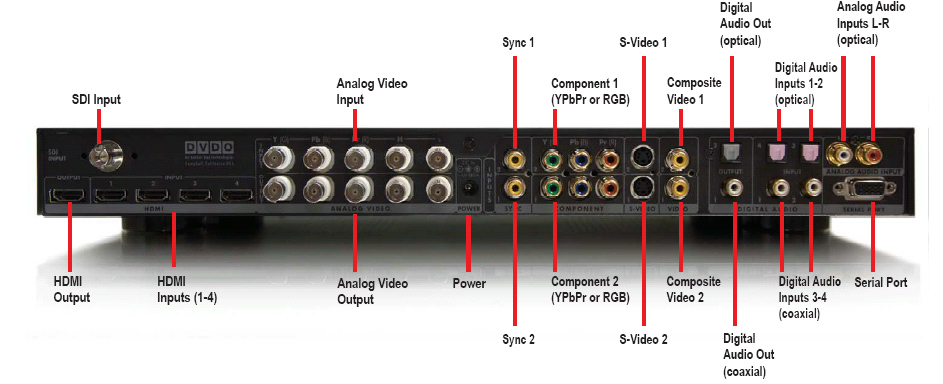

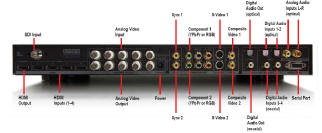

iScan VP30 Rear Panel View
(Click for Larger Image) |
SPECIFICATIONS - DVDO ISCAN
VP30 HDTV VIDEO SCALING PROCESSOR WITH HDMI SWITCHING:
Inputs
Twelve
Video Inputs Available
- Two Composite (NTSC/PAL/SECAM)
- Two S-Video (NTSC/PAL/SECAM)
- Two Component (YPbPr or RGB/S) processes 480i/p, 576i/p, 720p, 1080i
- One RGBHV/Component (BNC-style connectors) processes 480p, 576p, 720p, 1080i
- Four HDMI processes 480i/p, 576i/p, 720p, 1080i
- One SD-SDI (Serial Digital Interface) Optional
Nine Audio Inputs
- Four HDMI
- Two Coaxial Digital
- Two Optical Digital
- One Analog Pair (L/R)
Outputs
One Analog Video Output
- Using High Quality BNC-style connectors
- Configurable for YPbPr, RGBHV, RGB/S, or RGB
One Digital Audio/Video Output
- Using HDMI (High Definition Multimedia Interface) connector
- Configurable for YPbPr or RGB
- Also carries digital audio
Two Digital Audio Outputs
- One Coaxial Digital
- One Optical Digital
Controls
- Infrared remote control with direct access codes or manual controls on front panel
- Functions accessible via either On Screen Display (OSD) or front-panel LED display
- RS-232 port for software downloads and automation
- Fully programmable controls for each separate video input with non-volatile memories:
- Automatic input source detection & input priority selection
- Input aspect ratio select: 4:3 fullframe, 4:3 letterbox, 16:9 fullframe or custom input aspect ratio
- Output aspect ratio select: 4:3, 16:9 or custom output aspect ratio
- Flexible horizontal and vertical Zooming and Panning controls
- Picture controls with memory for each input: Brightness, Contrast, Saturation, Hue, Y/C Delay, Sharpness
Output Controls:
- Analog/Digital, Format/Resolution, Aspect Ratio, Sync Type, Colorspace (RGB or YPbPr), Frame Lock, Display Profiles (4)
- 27 Built-in test patterns for ease of set up
Power
- Universal AC mains input: 100 - 240 VAC @ 50 - 60 Hz
- Consumption < 30W
- Sleep mode - automatic 30 second timeout indicated by power LED color change
Physical Dimensions
- 10.4”x17”x2.2” (26.3cmx43.4cmx5.5cm) with feet
- 10.4”x17”x1.8” (26.3cmx43.4cmx4.6cm) without feet
- Standard 19” 1U 1.75” Rackmount Kit Available (P/N 17-0307-05)
Weight
- Shipping – 10.5 lb (4.8 kg)
- Unit without Power Supply – 6.4 lb (2.9 kg)
Manufacturer Homepage: www.dvdo.com
|
