DVDO MM604 iScan
VP20 HDTV Video Scaling Processor with HDMI Switching
|
OVERVIEW - Dvdo mm604 iScan
VP20 HDTV Video Scaling Processor with HDMI Switching:
The DVDO iScan VP20 is a high-definition video processor and A/V hub that converts standard or high definition from your DVD Player, VCR, PVR, HD set-top box, game console or PC to any of the predefined output resolutions between 480p and 1080p, including popular HDTV resolutions such as 720p or 1080i.
The VP20 serves as your complete A/V hub, providing simultaneous audio/video switching with video up/ down/ cross-conversion with one digital HDMI connection to your display or projector.
|
FEATURES - Dvdo MM604 iScan
VP20 HDTV Video Processor:
- ABT's Precision Video Scaling II technology: 10-bit Scaling, Enhanced Sharpness Control
- Motion and source adaptive video deinterlacing for NTSC
(3:2 and 2:2 pulldown; video) and PAL/SECAM
(2:2 pulldown; video) sources - Accepts Precision Deinterlacing Card
- Analog HD Transcoding and Processing
- Flexible Input and Output Aspect Ratio Control
- ABT's RightRate High-Performance Framerate Conversion (NTSC & PAL)
- ABT's AutoVFR - Intelligent Component Video Inputs with Automatic Video Format Routing
- Advanced Source Transition Management provides seamless transitions between source types
- ABT's AutoCUE-C - Automatic Chroma
Up sampling Error detection & correction
- Full-frame Time base Correction
- High performance, multi-standard video decoder
(10-bit: 480i/576i; 12-bit: 480p/576p/720p/1080i) - High-quality super-adaptive comb filter with 2D Y/C separation
- Flexible Digital and Analog Audio switching and routing – four digital audio inputs and one analog audio input with two digital audio outputs (both active)
- ABT's Precision AV LipSync intelligent digital audio delay technology to match Audio & Video timing
|
|

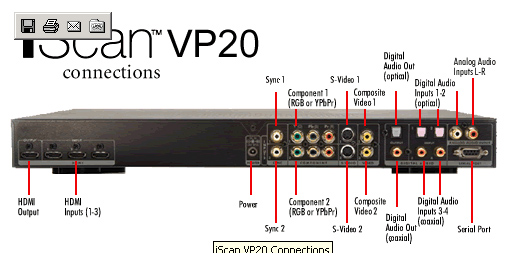

iScan VP20 Rear Panel View
(Click for Larger Image)
|
SPECIFICATIONS - DVDO MM604 ISCAN
VP20 HDTV VIDEO SCALING PROCESSOR WITH HDMI SWITCHING:
Inputs
Nine Video Inputs Available
- Two Composite (NTSC/PAL/SECAM)
- Two S-Video (NTSC/PAL/SECAM)
- Two Component (YPbPr or RGB/S) processes 480i/p, 576i/p, 720p, 1080i
- Three HDMI (YCbCr or RGB processes 480i/p, 576i/p, 720p, 1080i, VGA-XGA @60Hz
Eight Audio Inputs
- Three HDMI
- Two Coaxial Digital
- Two Optical Digital
- One Analog Pair (L/R)
Output
One Digital Audio/Video Output
- Using HDMI (High Definition Multimedia Interface) connector
- Configurable for YPbPr or RGB
- Also carries digital audio
Two Digital Audio Outputs
- One Coaxial Digital
- One Optical Digital
Controls
- Infrared remote control with direct access codes or manual controls on front panel
- Functions accessible via either On Screen Display (OSD) or 2 line, 20 character front-panel LED display
- RS-232 port for software downloads and automation
- Fully programmable controls for each separate video input with non-volatile memories:
- Automatic input source detection & input priority selection
- Input aspect ratio select: 4:3 fullframe, 4:3 letterbox, 16:9 fullframe or custom input aspect ratio (10)
- Output aspect ratio select: 4:3, 16:9
- Flexible horizontal and vertical Zooming and Panning controls
- Picture controls with memory for each input: Brightness, Contrast, Saturation, Hue, Y/C Delay, Sharpness
Output Controls:
- Format/Resolution, Aspect Ratio, Sync Type, Colorspace (RGBor YCbCr), Frame Lock
- 13 Built-in test patterns for ease of set up
Power
- Universal AC mains input: 100 - 240 VAC @ 50 - 60 Hz
- Consumption < 30W
- Sleep mode - automatic 30 second timeout indicated by power LED color change
Physical Dimensions
- 10.4”x17”x2.2” (26.3cmx43.4cmx5.5cm) with feet
- 10.4”x17”x1.8” (26.3cmx43.4cmx4.6cm) without feet
- Standard 19” 1U 1.75” Rackmount Kit Available
Weight
- Shipping – 10.5 lb (4.8 kg)
- Unit without Power Supply – 6.4 lb (2.9 kg)
Manufacturer Homepage: www.dvdo.com
|
