DVDO MM605 iScan
VP50 HDTV Video Scaling Processor with HDMI Switching
|
OVERVIEW - Dvdo mm605 iScan
VP50 HDTV Video Scaling Processor with HDMI Switching:
The DVDO iScan VP50 is a high-definition video processor and A/V hub that converts standard, high definition and PC signals from your DVD player, HD-DVD player, Blu-ray Disc player, HD DVR, game console, or PC to any output resolution between VGA and 1080p, including popular HDTV resolutions such as 720p and 1080i. Up, down, or cross-convert to match the optimum resolution of your display or projector.
The VP50 serves as your complete A/V hub, providing audio/video switching that simultaneously eliminates A/V lipsync and allows a one wire connection to display for all of your video sources.
|
FEATURES - Dvdo MM605 iScan
VP50 HDTV Video Scaling Processor with HDMI Switching:
- VRS Precision Deinterlacing for 480i, 576i and 1080i
- Five-field motion adaptive deinterlacing
- Edge adaptive processing for smooth diagonal edges
- Three frame video processing delay (Max)
- Game Modes with very low latency
- Sub-1 frame delay with edge adaptive processing
- 2 frame delay with edge and motion adaptive processing
- VRS Precision Video Scaling II technology by ABT - 10-bit Scaling with Enhanced Sharpness Control
- ABT's Precision Gamma Correction - individual R/G/B Adjustments (0.5-2.5)
- ABT's Precision AV LipSync - intelligent digital audio delay technology to match Audio & Video timing
- ABT's RightRate - High-Performance Framerate Conversion
- ABT's AutoVFR - Intelligent Component Video Inputs with Automatic Video Format Routing
- ABT's AutoCUE-C- Automatic Chroma Up sampling Error detection & correction
- Analog HD Transcoding and Processing
- 4 HDMI inputs which process up to 1080p-50/60 input signals
- Flexible Input and Output Aspect Ratio Controls
- Display Profiles – For multiple display, framerate, and image shift configurations (10)
- 10-bit, 300 MHz Instrumentation Quality DACs (2x Over sampling for 1080p)
- Full-frame Time base Correction
- High performance, multi-standard video decoder (10-bit: 480i/576i; 12-bit: 480p/576p/720p/1080i)
- High-quality super-adaptive comb filter with 2D Y/C separation
- Flexible Digital and Analog Audio switching and routing – 4 HDMI audio/video inputs, 5 assignable audio inputs (4 digital, 1 analog) with 1 HDMI audio/video output and 2 active digital audio outputs.
- Software Upgradeable
What's the Difference Between the iScan VP50 Over the iScan VP20
and VP30 ?
- World Class 1080i Deinterlacing - Motion, Edge and Source-Adaptive Processing
- Complete processing of 1080p for PC, HD-DVD and Blu-ray Disc formats as well as PS3
- Ability to update all processing algoriths through software updates
- Progressive Source Input Cadence Detection (Source-Locked Output without Deinterlacing)
|
|

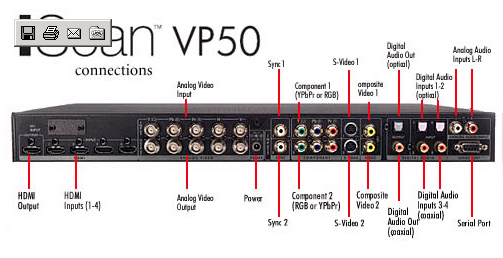

iScan VP50 Rear Panel View
(Click for Larger Image)
|
SPECIFICATIONS - DVDO MM605 ISCAN
VP50 HDTV VIDEO PROCESSOR:
Inputs
Twelve Video Inputs Available
- 2 Composite (NTSC/PAL/SECAM)
- 2 S-Video (NTSC/PAL/SECAM)
- 2 Component (YPbPr or RGB/S) processes 480i/p-60, 576i/p-50, 720p-50/60, 1080i-50/60
- 1 RGBHV/Component (BNC-style connectors) processes 480p-60, 576p-50, 720p-50/60, 1080i-50/60, VGA-SXGA@60Hz
- 4 HDMI (RGB or YCbCr) processes 480i/p-60, 576i/p-50, 720p-50/60, 1080i-50/60, 1080p-50/60, VGA-SXGA@60Hz
- 1 SD-SDI (Serial Digital Interface) Optional processes 480i-60, 576i-50
Nine Audio Inputs
- 4 HDMI
- 2 Assignable Coaxial Digital
- 2 Assignable Optical Digital
- 1 Assignable Analog Pair (L/R)
Outputs
One Analog Video Output
- Using High Quality BNC-style connectors
- Configurable for YPbPr, RGBHV, RGB/S, or RGB
One Digital Audio/Video Output
- Using HDMI (High Definition Multimedia Interface) connector
- Configurable for YPbPr or RGB
- Also carries digital audio
Two Digital Audio Outputs
- One Coaxial Digital
- One Optical Digital
Controls
Input Aspect Ratio Controls
- Presets: 4:3 full frame, 4:3 letterbox, Panorama, 16:9 full frame or user defined aspect ratio (10)
- Flexible Horizontal and Vertical Zooming (up to 2x) & Panning Controls
- Over scan Adjustment per input
Output
Aspect Ratio Controls
- Presets: 4:#, 16:9, 2.35:1, or custom aspect ratio
- Separate Display/Screen Adjustments
- Under scan Adjustment to address Over scan inherent in a display
Picture Controls
- Fully programmable controls with non-volatile memories per input and input resolution
- Brightness, Contrast, Saturation, Hue, Sharpness, and Fine Y/C Delay
Operation
- Intuitive On Screen Display and easy to read 2 line, 20 character Front Panel Display
- Front Panel Controls, including IR Remote Control (discrete codes available), Automation via RS232 port
Output Controls
- Output Resolution, Sync Type, Colorspace (RGB or YPbPr/YCbCr), Frame Lock, Gamma (R/G/B and up to 1024 point Gamma individual RGB correction), Display Profiles (10)
- 35 Built-in test patterns and VRS Optimization & Evaluation DVD included for optimal setup Software Upgradeable via Serial Port (USB-to-Serial Adapter included)
Power
- Universal AC mains input: 100 - 240 VAC @ 50 - 60 Hz
- Consumption < 45W
- Sleep mode - automatic 30 second timeout indicated by power LED turning off
Physical Dimensions
- 10.4”x17”x2.2” (26.3cmx43.4cmx5.5cm) with feet
- 10.4”x17”x1.8” (26.3cmx43.4cmx4.6cm) without feet
- Standard 19” 1U 1.75” Rackmount included
Weight
- Shipping – 10.5 lb (4.8 kg)
- Unit without Power Supply – 6.4 lb (2.9 kg)
