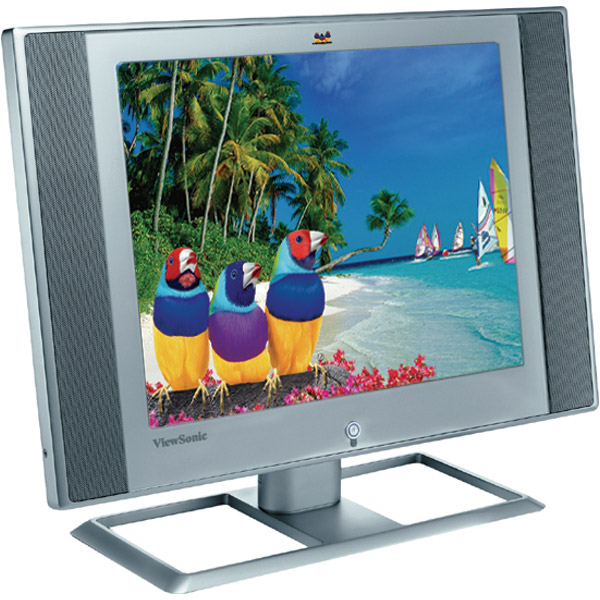

LCD Panel

Type

20" color TFT active matrix XGA LCD

Display Area

16.1" horizontal x 12.0" vertical; 20.1" diagonal

Optimum Resolution

640x480

Contrast Ratio

500:1 (typical)

Viewing Angle

160º horizontal, 140º vertical

Response Time

16ms (typical)

Brightness

500:1 nits cd/m2 (typical)

Panel Surface

Anti-glare

Aspect Ratio

4:3

INPUT SIGNAL

Video

TV/cable, composite (RCA), component YPbPr, S-video

Sync

H/V separated (TTL)

Analog

RGB analog (75 ohms, 0.7/1.0 Vp-p)

Audio

3.5mm mini stereo audio in/out and RCA (left/right) audio in

RGB Frequency

Fh: 30~69kHz, fv: 50~75Hz

OUTPUT

Tuner

NTSC

AUDIO OUTPUT

Speakers

2x5-watts

COURTESY COMPUTER

PC

Compatible with VGA computer resolution (640x480)

CONNECTOR

Analog

15-pin mini D-sub (VGA)

Power

3-pin plug

POWER

Voltage

AC 90-264V (universal), 50-60Hz

Consumption

60W (max)

CONTROLS

Basic

Power, enter, channel +/- and volume +/-

OnView

(PC mode) Auto adjust, contrast/brightness, color adjust, information, image adjust (H/V position, H. size, fine tune), source select (PC, YPbPr, S-video, AV, TV/CATV), setup (OSD position, time out) and memory recall

(Video mode) Contrast, brightness, color, tint (except YPbPr), sharpness, sound (balance, bass, treble), source select (PC, YPbPr, S-video, AV, TV/CATV), PIP (source select, YPbPr, S-video, AV or TV/CATV, AV position, on/off) and memory recall

(TV mode) Contrast, brightness, color, tint, sharpness, sound (balance, bass, treble, mute), closed caption (OFF, C1,C2, C3,C4, T1, T2,T3, T4), source select (PC, YPbPr, S-video, AV, TV/CATV), setup (TV/CATV select, autoscan, channel add/delete, parental control) and memory recall

OPERATING CONDITIONS

Temperature

41-95ºF (5-35ºC)

Humidity

5-90% (non-condensing)

DIMENSIONS
(WxHxD)

Physical

596.6mm (W) x 473.1mm (H) x 195.6mm (D)
23.4" x 18.6" x 7.7"

WEIGHT

Net

19.5lb. (8.9kgs)

Gross

26.4lb. (12kgs)

REGULATIONS

UL, cUL, FCC class B, ICES003, MPR II

WARRANTY

One-year limited warranty on parts, labor and backlight.
