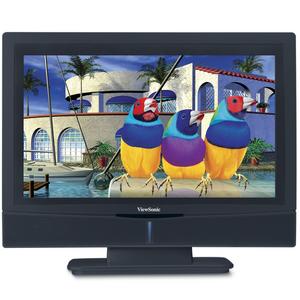

Viewsonic N2060W 20 inch Lcd Tv Monitor viewsonic n2060w

SUMMARY - Viewsonic n2060w 20 inch True HDTV LCD TV Monitor with Built in Tuner:

ViewSonic's N2060w 20" widescreen LCD TV brings big entertainment to small spaces like the bedroom, kitchen or even your RV. For the ultimate gaming experience in small spaces, CONNECT YOUR PC OR GAMING CONSOLE to the N2060w. You'll be amazed by the crystal-clear pictures and digital audio from 3x3-watt stereo speakers. When connected to your PC, the N2060w becomes a brilliant PC monitor with support for screen resolutions as high as 1360x768. Guaranteed to turn heads, CLEARPICTURE ELECTRONICS BOOST COLOR AND CONTRAST TO HIGHER LEVELS OF PRECISE DETAIL. For your complete multimedia experience in tight spaces, choose the ViewSonic N2060w.

DETAILED SPECS - VIEWSONIC N2060W HDTV LCD MONITOR:

LCD

Type

20.1" color TFT active matrix, wide LCD

Display Area

17.5" horizontal x 9.8" vertical; 20.1" diagonal

Optimum Resolution

1366x768

Contrast Ratio

700:1 (typ)

Viewing Angles

160? horizontal, 140? vertical

Response Time

8ms gray-to-gray (avg)

Light Source

Long life, 50,000 hrs. (typ)

Brightness

450 cd/m2 (typ)

Aspect Ratio

16:9

Glass Surface

Anti-reflective coat

INPUT

RGB analog (75 ohms, 0.7 Vp-p)

TV/cable, composite (RCA), component YPbPr/YCbCr, S-video

Audio

3.5mm mini stereo audio in/out and RCA (left/right) audio in

RGB Frequency

Fh: 30~64kHz, Fv: 60~75Hz

Sync

Fh: 30~64kHz, Fv: 60~75Hz

Tuner

NTSC

AUDIO OUPUT

Speakers

3x3-watt

INPUT SIGNALS

TV/Video Comp.

480i, 480p, 720p, 1080i

COMPATIBILITY

Analog: from VGA up to 1600x1200

Mac

Power Mac™ G3/G4/G5 up to 1360x768

CONNECTOR

Analog

15-pin mini D-sub (VGA)

Power

3-pin plug

POWER

Voltage

AC 100-240V (universal), 47-63Hz

Consumption

90W (typ)

CONTROLS

Basic

Power, channel +/-, volume +/-, menu, source

OnView (PC Mode)

Video adjust, auto adjust, contrast, brightness, language, bass, treble, volume, position, source, audio select, clock, color temperature

(Video Mode)

Picture (contrast, brightness, color, tint, sharpness, position, video noise, black level, color temperature), sound (volume, balance, bass, treble, AVL, loudness preset, equalizer)

OPERATING CONDITIONS

Temperature

32-95?F (0-55?C)

Humidity

20-90% (non-condensing)

DIMENSIONS
(W x H x D)

Physical (mm)

522mm x 424mm x 185mm
522mm x 382mm x 102mm (without stand)

Physical (in)

20.5" x 16.7" x 7.3"
20.5" x 15.0" x 4.0" (without stand)

WEIGHT

Net

15.2 lb. (6.9 kg)

Gross

19.8 lb. (9.0 kg)

PACKAGE CONTENTS

LCD PC/TV display, power cable(s), remote control with batteries, VGA cable, RCA A/V cable, Quick Start Guide, User Guide

REGULATIONS

UL, cUL, FCC, NOM, CB

WARRANTY

One-year limited warranty on parts and backlight

Manufacturer Homepage: www.viewsonic.com
