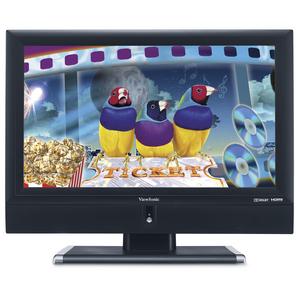

Viewsonic N2652W Lcd Tv Monitor viewsonic n2652w

SUMMARY - Viewsonic n2652w 26 inch Widescreen HDTV LCD TV Monitor:

The Viewsonic N2652W lcd television features a 26" LCD Display with 1366x768 native Resolution and 16:9 Aspect Ratio. Perfect for viewing HDTV television signals and DVD movies. In addition, this unit comes with built-in speakers, table stand and ATSC/NTSC tuner. Enjoy maximum versatility with a full range of inputs that include HDMI, component and PC inputs.

DETAILED SPECS - VIEWSONIC N2652W HDTV LCD MONITOR:

LCD

Type

26" color TFT active matrix, wide 1366x768 LCD

Display Area

22.6" horizontal x 12.74" vertical; 26.0" diagonal

Optimum Resolution

1366x768

Contrast Ratio

800:1 (typ)

Viewing Angles

160° horizontal, 150° vertical

Response Time

8ms gray-to-gray (avg)

Light Source

Long life, 50,000 hrs. (typ)

Brightness

500 cd/m2 (typ)

Aspect Ratio

16:9

Glass Surface

Anti-glare, anti-reflective coat

INPUT

RGB analog (75 ohms, 0.7 Vp-p)

TV/cable, composite (RCA), component YPbPr/YCbCr, S-video

Audio

3.5mm mini stereo audio in/out and RCA (left/right) audio in

RGB Frequency

Fh: 30~64kHz, Fv: 60~75Hz

Sync

H/V separated (TTL)

Digital

HDMI (DVI compatible) with HDCP (content protection)

Tuner

ATSC/NTSC

AUDIO OUPUT

Speakers

2x10-watt with Dolby Digital sound

COMPATIBILITY

Compatible from VGA up to 1360x768 non-interlaced

Mac

Power Mac G3/G4/G5 up to 1360x768

INPUT SIGNAL

TV/Video

480i, 480p, 720p, 1080i

CONNECTOR

Analog

15-pin mini D-sub (VGA)

Digital

HDMI

Power

3-pin plug

POWER

Voltage

AC 90-240V (universal), 47-63Hz

Consumption

1500W (typ)

CONTROLS

Basic

Power, enter, channel +/-, volume +/-, menu

OnView (PC Mode)

Auto adjust, contrast, brightness, H. position, V. position, H. size, fine tune, aspect ratio, information, text/graphic mode, color temperature

(Video Mode)

Picture (contrast, brightness, color, tint, sharpness, aspect ratio, fine tune, color temperature), sound (volume, balance, bass, treble, surround on/off), input menu (TV/DTV, AV, S-video, YCbCr, YPbPr, HDMI, VGA), parental control (caption, change password, TV ratings, MPAA movie ratings, V-chip temporary disable), PIP (input, POP, mode disable, audio, SWAP, size/position), set up (OSD H/V position), time out, transparency, language, memory recall)

(TV Mode)

MTS, TV/CATV, auto scan, set channel, channel delete

OPERATING CONDITIONS

Temperature

32-104°F (0-40°C)

Humidity

10-90% (non-condensing)

VESA MOUNT

100mm x 200mm

DIMENSIONS
(W x H x D)

Physical (mm)

660mm x 559mm x 210mm (with stand)
660mm x 493mm x 107mm (without stand)

Physical (in)

25.9" x 19.4" x 8.3" (with stand)
25.9" x 19.4" x 4.2" (without stand)

PACKAGE CONTENTS

LCD TV display, power cable(s), 51-key remote control with batteries, VGA cable, RCA A/V cable, Quick Start Guide, User Guide

WEIGHT

Net

35.4 lb. (16.1 kg) (with stand)
TBD (without stand)

Gross

43.1 lb. (19.6 kg) (with stand)

REGULATIONS

cUL, FCC, NOM, ICES003

WARRANTY

One-year limited warranty on parts and backlight
