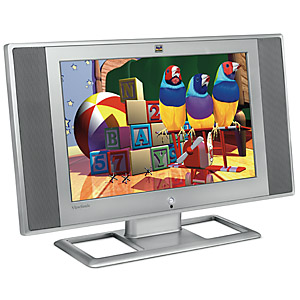

LCD Panel

Type

27" color TFT active matrix, wide 1280x720 LCD, true HDTV format

Display Area

23.5" horizontal x 13.2" vertical; 27.0" diagonal

Contrast Ratio

500:1 (typical)

Viewing Angle

170° horizontal, 170° vertical

Response Time

25ms (typical), 16ms gray to gray

Brightness

500 nits cd/m2 (typical)

Panel Surface

Anti-glare, anti-reflective coat, hard DHD coat

Aspect Ratio

16:9

INPUT SIGNAL

Video

TV/cable, composite (RCA), component YPbPr/YCbCr

Sync

H/V separated (TTL)

Analog

RGB analog (75 ohms, 0.7/1.0 Vp-p)

Digital

DVI with HDCP (content protection)

Audio

3.5mm mini stereo audio in/out and RCA (left/right) audio in

RGB Frequency

Fh: 30~64kHz, fv: 60~75Hz

OUTPUT

Tuner

NTSC

AUDIO OUTPUT

Speakers

2x10-watts

COMPATIBILITY

PC

VGA up to 1280 x 1024 non-interlaced, 1280 x 720 (preferred)

Mac

Power Mac G3/G4 up to 1280 X 1024, 1280 X 720 (preferred)
(*Adapter may be required. Analog adapter available from ViewSonic)

CONNECTOR

Analog

15-pin mini D-sub (VGA)

Power

3-pin plug

POWER

Voltage

AC 90–240V (universal), 50-60Hz

Consumption

140W (typical)

CONTROLS

Basic

Power, enter, channel +/- and volume +/-

OnView

(PC mode) Auto adjust, contrast/brightness, color adjust, information, image adjust (H/V position, H. size, fine tune), source select (PC, YPbPr, AV, TV/CATV), setup (OSD position, time out) and memory recall

(Video mode) Contrast, brightness, color, tint (except YPbPr), sharpness, sound (balance, bass, treble), source select (PC, YPbPr, S-video, AV, TV/CATV), PIP (source select, YPbPr, AV or TV/CATV, AV position, on/off) and memory recall

(TV mode) Contrast, brightness, color, tint, sharpness, sound (balance, bass, treble, mute), closed caption (OFF, C1,C2, C3,C4, T1, T2,T3, T4), source select (PC, YPbPr, AV, TV/CATV), setup (TV/CATV select, autoscan, channel add/delete, parental control) and memory recall

OPERATING CONDITIONS

Temperature

32–104°F (0–40°C)

Humidity

10–90% (non-condensing)

DIMENSIONS
(WxHxD)

Physical

786mm (W) x 526mm (H) x 225mm (D)
30.9" x 20.7" x 8.7"

WEIGHT

Net

30.8 lb. (14.0 kg)

Gross

40.5 lb. (18.4 kg)

REGULATIONS

UL, cUL, FCC class B, CE, NOM

WARRANTY

One-year limited warranty on parts, labor and backlight.
