LCD Panel

Type

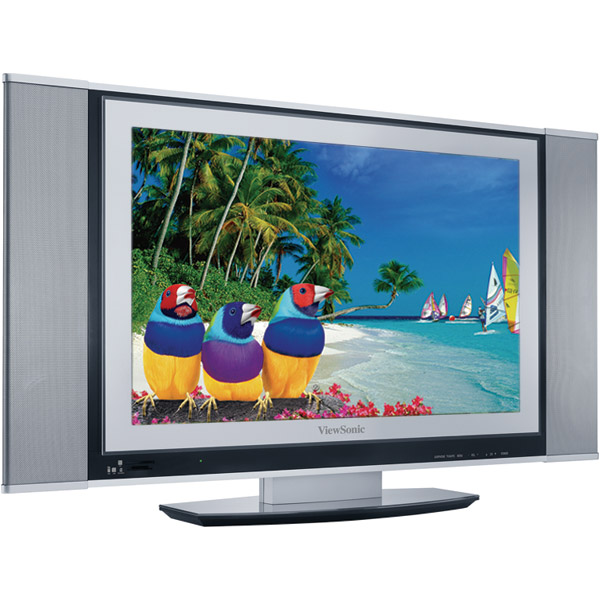

32" wide color 1280x768 LCD TV

Display Area

27.06" horizontal x 16.24" vertical; 32" diagonal

Contrast Ratio

600:1 (typical)

Viewing Angle

170° horizontal, 170° vertical @CR>10

Response Time

9ms (Tr, Tf) (typical)

Brightness

550 cd/m2 (typical)

Aspect Ratio

15:9

Glass Surface

Anti-glare

VIDEO INPUT

Tuner

NTSC

Analog

RGB analog (75 ohms, 0.7/1.0 Vp-p)

Video

S-video, composite (RCA jack), YCbCr or YPbPr signal (component 1 & 2), RGB

Digital

DVI with HDCP (content protection)

VIDEO OUTPUT

Output 1

R/L audio

AUDIO OUTPUT

Speakers

2x12-watts

COMPATIBILITY

PC

Compatible from VGA up to 1280x1024 non-interlaced, 1280x768 preferred

Mac

Power Mac™ G3/G4 up to 1280x1024, 1280x768 (preferred)

POWER

Voltage

100-240 (universal), 50-60Hz

Consumption

190W (typ)

Connector

3-pin plug

CONTROLS

Basic

Volume +, -, channel up/down, sources, menu, power, headphone

Remote

51-key, IR, AAA battery type

ONVIEW


Contrast, brightness, color, tint, sharpness, video mode

Sound

Volume, treble, bass, balance, audio mode, speaker, MTS

Setup

TV (air/cable), auto scan, channel skipped, channel select, closed caption, parental control, current time, TV on status, TV on timer, sleep timer, languages, noise reduction, preference

Screen

Picture-in-picture (PIP), PIP position, picture-on-picture (POP), SWAP, screen mode

OPERATING CONDITIONS

Temperature

32-104°F (0-40°C)

Humidity

10-90% (non-condensing)

DIMENSIONS
(WxHxD)

Physical

1054mm x 623mm x 220mm
42.2" x 24.9" x 8.8"

WEIGHT

Net

22.5 kg (49.6 lb.)

Gross

28.5 kg (62.8 lb.)

REGULATIONS

FCC-B, UL, cUL, ICES005

WARRANTY

One-year limited warranty on parts, labor and backlight.
