Viewsonic N3252W Lcd Tv Monitor viewsonic n3252w

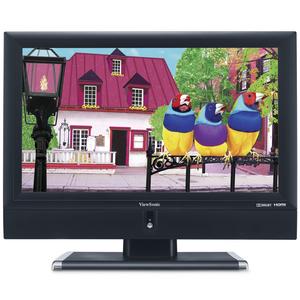

SUMMARY - Viewsonic n3252w 32 inch Widescreen HDTV LCD TV Monitor:

ViewSonic's N3252w high-definition, 32" widescreen LCD HDTV delivers stunning high-definition images whether you're using it as a PC display or the centerpiece of your visual entertainment. Advanced CLEARPICTURE ELECTRONICS, 1366x768 resolution, high brightness and 1000:1 contrast ratio (typ) deliver amazingly sharp video and graphics. Connect HD set-top boxes, DVD players, game consoles and more through the multiple video and audio connections for a complete high-definition home theater system. Two powerful 10-watt stereo speakers and Dolby Digital sound complete your visual experience. HDMI digital input provides ease of connection with audio and video in one cable and long-term compatibility ensures you'll continue to enjoy high-definition video entertainment and computer graphics into the future

DETAILED SPECS - VIEWSONIC N3252W HDTV LCD MONITOR:

LCD

Type

32" color TFT active matrix, wide LCD

Display Area

27.5" horizontal x 15.4" vertical; 32" diagonal

Native Resolution

1366x768

Contrast Ratio

1000:1 (typ)

Viewing Angles

170° horizontal, 170° vertical

Response Time

8ms

Light Source

Long life, 50,000 hrs. (typ)

Brightness

550 cd/m2 (typ)

Aspect Ratio

16:9

Glass Surface

Anti-glare, anti-reflective coat

INPUT

RGB analog (75 ohms, 0.7 Vp-p)

TV/cable, composite (RCA), component YPbPr/YCbCr, S-video

Audio

3.5mm mini stereo audio in/out and RCA (left/right) audio in

RGB Frequency

Fh: 30~64kHz, Fv: 60~75Hz

Sync

H/V separated (TTL)

Digital

HDMI (with HDCP and audio support)

Tuner

ATSC/NTSC

AUDIO OUPUT

Speakers

2x10-watt Dolby Digital sound

INPUT SIGNALS

TV/Video Comp.

480i, 480p, 720p, 1080i

COMPATIBILITY

1360x768 (preferred), 1024x768, 1280x768

Mac

Power Mac G3/G4/G5 up to 1280x1024

CONNECTOR

Analog

15-pin mini D-sub (VGA)

Digital

HDMI

Power

3-pin plug

POWER

Voltage

AC 90-240V (universal), 47-63Hz

Consumption

150W (typ)

CONTROLS

Basic

Power, enter, channel +/-, volume +/-, menu

OnView (PC Mode)

Auto adjust, contrast, brightness, H. position, V. position, H. size, fine tune, aspect ratio, information, text/graphic mode, color temperature

(Video Mode)

Picture (contrast, brightness, color, tint, sharpness, aspect ratio, color temperature), sound (volume, balance, bass, treble, input menu (TV, AV, S-video, YCbCr, YPbPr, HDMI, VGA), parental control (caption, change password, TV ratings, MPAA movie ratings, V-chip temporary disable), PIP (input, POP, mode disable, audio, SWAP, size/position), set up (OSD H/V position), time out, transparency, OSD color, language, memory recall)

(TV Mode)

MTS, TV/CATV, auto scan, set channel, channel delete, label, favorite, fine tune

OPERATING CONDITIONS

Temperature

32-104°F (0-40°C)

Humidity

10-65% (non-condensing)

VESA MOUNT

200mm x 400mm

DIMENSIONS
(W x H x D)

Physical (mm)

808mm x 646mm x 210mm(with stand)
808mm x 574mm x 118mm (without stand)

Physical (in)

31.8" x 25.4" x 8.3"(with stand)
31.8" x 22.6" x 4.6" (without stand)

PACKAGE CONTENTS

LCD TV display, power cable(s), remote control with batteries, VGA cable, RCA A/V cable, Quick Start Guide, User Guide

WEIGHT

Net with stand

50.4 lb. (22.9 kg)

Net without stand

44.3 lb. (20.1 kg)

Gross with stand

59.6 lb. (27.05 kg)

REGULATIONS

cUL, FCC, NOM, EN 55013, CB

RECYCLING/DISPOSAL

The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.

WARRANTY

One-year limited warranty on parts and backlight
