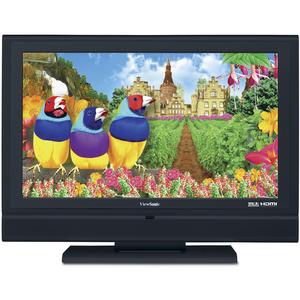

Viewsonic N3260W 32 inch Lcd Tv Monitor viewsonic n3260w

KEY POINTS - Viewsonic N3260W 32 inch True HDTV LCD TV Monitor with Built-in Speakers Stand and Tuner:

1366 x 768 pixel resolution

800:1 contrast ratio

16:9 aspect ratio

8ms response time

Compatible with 480i, 480p, 720p, and 1080i video sources

170°H/170ºV viewing angle

500 cd/m2 brightness

2 x 10-watt SRS TruSurround XT

DNX image processing technology

Video inputs: HDMI w/HDCP, composite, S-Video, RCA component, RGB 15 D-sub

Built-in NTSC and ATSC tuner

Full PIP/POP swap capability

32 1/4 inch W x 25 5/8 inch H x 9 1/8 inch D

weight 48 1/2lbs.

1 year limited warranty

Includes remote

SUMMARY - Viewsonic n3260w 32 inch True HDTV LCD TV Monitor with Built-in Speakers Stand and Tuner:

ViewSonic's N3260w high-definition 32" widescreen LCD TV provides the ultimate high-definition visual experience by combining DNX IMAGE PROCESSING TECHNOLOGY with a super-fast 8ms video response time. WATCH OFF-THE-AIR BROADCASTS on true HDTV with 1366x768 resolution, high brightness and contrast ratio, the N3260w delivers rich, saturated color for DVDs, movies and sports. SRS TRUSURROUND XT AUDIO DELIVERS CLEAR DIGITAL AUDIO to the integrated dual 10-watt speakers or to your home stereo system. Multiple connectors including HDMI with HDCP digital input provide connections for DVD players, set-top boxes, game consoles and more. Enjoy the ultimate in visual entertainment with the elegantly designed, high-performance N3260w.

DETAILED SPECS - VIEWSONIC N3260W HDTV LCD MONITOR:

LCD Panel

Type

32" (31.5" viewable) color TFT active matrix, wide LCD

Display Area

27.5" horizontal x 15.4" vertical; 31.5" diagonal

Native Resolution

1366x768

Contrast Ratio

800:1 (typ)

Viewing Angle

170° horizontal, 170° vertical

Response Time

8ms

Brightness

500 cd/m2 (typ)

Light Source

Long life, 60,000 hrs. (typ)

Aspect Ratio

16:9

Glass Surface

Anti-glare, hard coating (3H)

INPUT

RGB analog (75 ohms, 0.7 Vp-p)

TV/cable, composite (RCA), component YPbPr/YCbCr, S-video

Audio

3.5mm mini stereo audio in/out and RCA (left/right) audio in

RGB Frequency

Fh: 30~64kHz, Fv: 60~75Hz

Sync

H/V separated (TTL)

Digital

HDMI (with HDCP and audio support)

Tuner

NTSC/ATSC

AUDIO OUTPUT

Speakers

2x10-watt SRS TruSurround XT

INPUT SIGNAL

TV/Video Comp.

480i, 480p, 720p, 1080i

COMPATIBILITY

1360x768 (preferred), 1024x768, 1280x768

Mac

Power Mac G3/G4/G5 up to 1280x1024, 1280x720 (preferred)

CONNECTOR

Analog

15-pin mini D-sub (VGA)

Digital

HDMI

Power

3-pin plug

POWER

Voltage

AC 90-240V (universal), 50/60Hz

Consumption

190W (typ)

CONTROLS

Basic

Power, enter, channel +/-, volume +/-, menu

OnView (PC mode)

Auto adjust, contrast, brightness, H. position, V. position, H. size, fine tune, aspect ratio, information, text/graphic mode, color temperature

(Video mode)

Picture (contrast, brightness, color, tint, sharpness, aspect ratio, color temperature), sound (volume, balance, bass, treble, input menu (TV, AV, S-video, YCbCr, YPbPr, HDMI, VGA), parental control (caption, change password, TV ratings, MPAA movie ratings, V-chip temporary disable), PIP (input, POP, mode disable, audio, SWAP, size/position), set up (OSD H/V position), time out, transparency, OSD color, language, memory recall)

(TV mode)

MTS, TV/CATV, auto scan, set channel, channel delete, label, favorite, fine tune

REGULATIONS

cUL, NOM, CB, FCC-B

DIMENSIONS
(WxHxD)

Physical (mm)

820mm x 650mm x 230mm (with stand)

Physical (in.)

32.28" x 25.59" x 9.06" (with stand)

OPERATING CONDITIONS

Temperature

-4-140°F (-20-\-60°C)

Humidity

5-90% (non-condensing)

WEIGHT

Net

48.4 lb. (21.98 kg) (with stand)

Gross

57.2 lb. (25.9 kg) (with stand)

PACKAGE CONTENTS

LCD TV display, power cable, remote control with batteries, RCA A/V cable, Quick Start Guide, User Guide

WARRANTY

One-year limited warranty on parts and backlight
