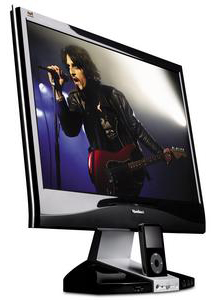

Viewsonic VX1945WM 19 inch LCD Computer Monitor with iPod Dock

Item Currently Unavailable

Return to Viewsonic LCD Monitor Main

KEY POINTS - VX1945wm Viewsonic 19 inch LCD Computer Monitor with iPod Dock:

• Optimum Resolution 1440x900
• Contrast Ratio 700:1 (typ)
• Response Time 5ms (typ)
• Brightness 300 cd/m2 (typ)
• Built-In iPod Dock

SUMMARY - Viewsonic vx1945wm 19 inch LCD Computer Monitor with iPod Dock:

ViewSonic's 19" VX1945wm ViewDock LCD blasts through barriers with its INNOVATIVE FUNCTIONALITY and beautiful piano-black, gloss finish. Dock your iPod and listen to tunes while you surf the Internet or do your work. You can even DOWNLOAD MUSIC DIRECTLY TO YOUR IPOD on the ViewDock. Defend against all comers in your games with no blurs, ghosting or jagged to slow you down. Feel the sound with the INTEGRATED STEREO SPEAKERS AND SUBWOOFER driving unprecedented audio richness to your desktop display. The VX1945wm sets new standards in multimedia displays with an 8-in-1 card reader*, USB connection for your joystick/game control, integrated microphone and headphone jack. Your desktop experience will never be the same once you bring it all together with your VX1945wm ViewDock and iPod.


DETAILED SPECS - VIEWSONIC VX1945WM 19 INCH LCD COMPUTER MONITOR WITH IPOD DOCK:

LCD
• Panel Type 19" Wide Color TFT Active Matrix LCD
• Display Area 16.1" horizontal x 10.0" vertical; 19" diagonal
• Optimum Resolution 1440x900
• Contrast Ratio 700:1 (typ)
• Viewing Angle 160° horizontal, 160° vertical @ contrast ratio > 10:1
• Response Time 5ms (typ)
• Brightness 300 cd/m2 (typ)
• Light Source Long life, 40,000 hrs. (typ)
• Panel Surface Anti-glare


AUDIO
• Speakers 2x2-watt
• Sub-woofer 1x3-watt


POWER
• Voltage AC 100-240V, 50-60Hz (auto switch)
• Consumption 59W (typ)


COMPATIBILITY
• PC VGA up to 1440x900 non-interlaced
• Mac** Power Mac G3/G4/G5 up to 1440x900


CONNECTOR
• Analog/Digital 15-pin mini D-sub/DVI-D
• Power 3-pin AC plug (CEE22)
• Base iPod dock, USB (A type)x4, USB (B type)x1, audio out stereo jack, 2-in-1 audio in, headphone jack


CONTROLS
• Basic Power, 1, down, up, 2, sub volume
• OnView Auto image adjust, brightness, contrast, input select (analog, digital), ViewMatch color adjust (sRGB, 9300K, 6500K-default, 5400K, user color - RGB), information (resolution, H. frequency, V. frequency, pixel clock, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness, setup menu, language, resolution notice, OSD position, OSD timeout, OSD background), memory recall


DIMENSIONS (WxHxD)
• Physical (mm) 450mm x 449mm x 212mm (with stand)
• 450mm x 341mm x 65.5mm (without stand)
• Physical (in.) 17.7" x 17" x 8.4" (with stand)
• 17.7" x 13.4" x 2.6" (without stand)


OPERATING CONDITIONS
• Temperature 41-95°F (5-35°C)
• Humidity 20-80% (non-condensing)
• WEIGHT Net with stand 12.3 lb. (5.6 kg)
• Net without stand 10.3 lb. (4.7 kg)
• Gross with stand 14.5 lb. (6.6 kg)


REGULATIONS
• UL, cUL, FCC-B, CB, CE, ENERGY STAR, NOM, NEMKO/GS (covers TUV/GS), NEMKO ERGO (covers TUV/ERGO, ISO13406-2 & MPR II), MPR II, GOST-R + 20 original copies hygienic, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, Argentina-S, Green Mark, RoHS


RECYCLING/DISPOSAL
• The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.


POWER MANAGEMENT
• Meets MPR II and ENERGY STAR standards


PACKAGE CONTENTS
• LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD


VIDEO INPUT
• Analog/Digital RGB analog (75 ohms, 0.7 Vp-p)/DVI-D (TMDS, 100 ohms)
• Frequency Fh: 30~82kHz, Fv: 50~85Hz
• Sync H/V separated (TTL), composite, sync-on-green


WARRANTY
• Three-year limited warranty on LCD, parts and labor.

Manufacturer Link: www.viewsonic.com
