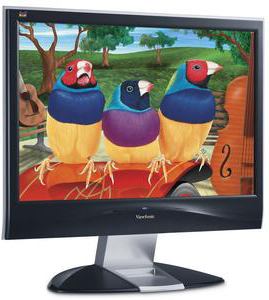

Viewsonic VX2035WM 20 inch LCD Computer Monitor

Item Currently Unavailable

Return to Viewsonic LCD Monitor Main

KEY POINTS - VX2035wm Viewsonic 20 inch LCD Computer Monitor:

• Optimum Resolution 1680x1050
• Contrast Ratio 800:1 (typ)
• Brightness 300 cd/m2 (typ)
• Response Time 5ms white-black-white (typ); 8ms gray-to-gray (avg)

SUMMARY - Viewsonic vx2035wm 20 inch LCD Computer Monitor:

ViewSonic's 20.1" VX2035wm sets new standards in style and performance. The 16:10 widescreen aspect ratio immerses you in games, videos and Internet content like never before. The large screen size is perfect for working in two documents or applications simultaneously with no toggling. And when it's time for games, you'll see more of the action and your scores will soar. The FAST 5MS VIDEO RESPONSE time delivers blur-free, full-motion video and scrolling text. OptiSync digital and analog inputs let you connect multiple components and the INTEGRATED STEREO SPEAKERS AND AMP complete the desktop entertainment. The latest OSD and power lock prevent accidental changes to your monitor settings, while the Kensington security port offers theft deterrence. The VX2035wm is the fast, fun desktop display with a difference.


DETAILED SPECS - VIEWSONIC VX2035WM 20 INCH LCD COMPUTER MONITOR:

LCD
• Panel Type 20.1" Wide Color TFT Active Matrix LCD
• Display Area 17.1" horizontal x 10.7" vertical; 20.1" diagonal
• Optimum Resolution 1680x1050
• Contrast Ratio 800:1 (typ)
• Viewing Angle 160° horizontal, 160° vertical @ contrast ratio > 10:1
• Response Time 5ms white-black-white (typ); 8ms gray-to-gray (avg)
• Brightness 300 cd/m2 (typ)
• Light Source Long life, 40,000 hrs. (typ)
• Panel Surface Anti-glare


AUDIO
• Speakers 2x1.5-watt


POWER
• Voltage AC 100-240V, 50-60Hz (auto switch)
• Consumption 43W (typ)


COMPATIBILITY
• PC VGA up to 1680x1050 non-interlaced
• Mac* Power Mac" G3/G4/G5 up to 1680x1050


CONNECTOR
• Analog/Digital 15-pin mini D-sub and DVI-D
• Power 3-pin AC plug (CEE22)


CONTROLS
• Basic Power, 1, down, up, 2
• OnView Auto image adjust, brightness, contrast, input select (analog, digital), Audio adjust (volume mute), ViewMatch color adjust (sRGB, 9300K, 6500K-default, 5400K, user color - RGB), information (resolution, H. frequency, V. frequency, pixel clock, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness, setup menu, language, resolution notice, OSD position, OSD timeout, OSD background), memory recall


DIMENSIONS (WxHxD)
• Physical (mm) 491mm x 458mm x 244mm (with stand)
• 491mm x 364mm x 70mm (without stand)
• Physical (in.) 19.3" x 18" x 9.6" (with stand)
• 19.3" x 14.3" x 2.8" (without stand)


OPERATING CONDITIONS
• Temperature 32-104°F (0-40°C)
• Humidity 20-90% (non-condensing)


WEIGHT
• Net with stand 15.4 lb. (7.0 kg)
• Net without stand 12.8 lb. (5.8 kg)
• Gross with stand 18.9 lb. (8.6 kg)


REGULATIONS
• UL, cUL, FCC-B, CB, CE, ENERGY STAR, NOM, NEMKO/GS (covers TUV/GS), NEMKO ERGO (covers TUV/ERGO, ISO13406-2 & MPR II), GOST-R + 20 original copies hygienic, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, Argentina-S, Green Mark, RoHS


RECYCLING/DISPOSAL
• The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.


POWER MANAGEMENT
• Meets MPR II and Energy Star standards


PACKAGE CONTENTS
• LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD


VIDEO INPUT
• Analog/Digital RGB analog (75 ohms, 0.7 Vp-p); DVI-D
• Frequency Fh: 30~82kHz, Fv: 50~85Hz
• Sync H/V separated (TTL), composite, sync-on-green


WARRANTY
• Three-year limited warranty on LCD, parts and labor

Manufacturer Link: www.viewsonic.com
