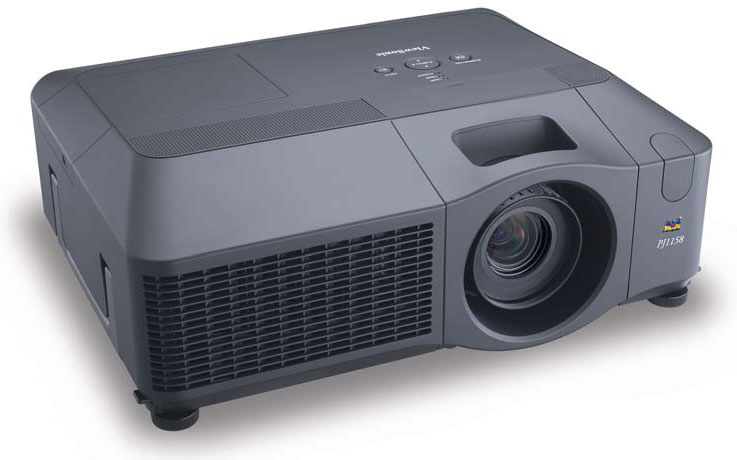

ViewSonic PJ1158 3LCD Multimedia Video Projector viewsonic p

KEY POINTS - PJ1158 Viewsonic 4000 ANSI Lumens 3LCD Multimedia Projector:

4000 ANSI Lumens

Native 1024 x 768 XGA Resolution

1000:1 Contrast Ratio

Network control through RJ-45

Enhanced security features - PIN lock, Kensington® security lock, security bar

Superior 16-watt stereo sound

Ultimate video source flexibility - view the same projected image on another display

SUMMARY - Viewsonic pj1158 4000 ANSI Lumens 3LCD Multimedia Projector:

The ViewSonic® PJ1158 delivers maximum impact for large-venue presentations. With 4,000 LUMENS and 1000:1 contrast ratio (typ), this PREMIUM PROJECTOR is ideally suited for conference rooms, lecture halls, religious sanctuaries and boardrooms. The PJ1158 is full-featured with native XGA 1024x768 resolution, advanced image processing, manual lens shift, and horizontal and vertical (auto) keystone correction for perfect images.

Network connectivity allows you to REMOTELY CONTROL AND MANAGE YOUR PROJECTOR and the 4x4-watt SRS® WOW STEREO SPEAKERS give your presentations powerful sound. The security bar and PIN lock guard against theft and unauthorized use. The PJ1158 is the full-featured choice for dynamic presentations and smooth video entertainment in large venues.

DETAILED SPECS - VIEWSONIC PJ1158 4000 ANSI LUMENS 3LCD MULTIMEDIA PROJECTOR:

TECHNOLOGY

Type

0.8" Poly-Si TFT with micro-lens

Pixel Format

1024x768 XGA

Lens

Manual zoom, manual focus, manual lens shift

Zoom Factor

1.2

Keystone

Auto-vertical ± 40º, horizontal ± 20º

DISPLAY

Contrast Ratio

1000:1

Display size

30"-300" (diagonally)

Aspect Ratio

4:3 (native), 16:9

Throw Distance

35"-512"

Throw Ratio

1.5~1.8:1

Lamp type

285W, 2,000 hours*

Brightness

4,000 ANSI lumens

COMPATIBILITY

Analog: from VGA up to UXGA (compressed)

Mac®+

Analog: up to SXGA (may require a Mac adapter)

INPUT SIGNAL

Computer and Video

RGB analog, NTSC M, NTSC 4.45, PAL, SECAM, HDTV (480i, 480p, 575i, 720p, 1080i)

Frequency

Fh: 31-92kHz; Fv: 56-120Hz

AUDIO

Speakers

4x4-watt with SRS® WOW technology

CONNECTOR

RGB Input

Analog RGB: DB-15 (x2), Digital RGB:M1-D

Composite Video Input

RCA jack (x1)

S-Video Input

Mini-Din 4-pin (x1)

Component Video Input

RCA jack (x1 set)

RGB Output

DB-15 (x1)

Audio Input

3.5mm stereo mini-jack (x2) for RGB, RCA L/R jack (x1 set)

Audio Output

3.5mm stereo mini-jack (x1)

Control

RS232 9-pin D-sub (x1)

Network

RJ-45 (x1)

Mouse Control

VIA M1-D

POWER

Voltage

90-264 VAC, 50/60Hz (universal)

Consumption

460W (typ)

CONTROLS

Basic

Standby, menu, input, reset, H/V keystone, search, picture mode

OPERATING CONDITIONS

Temperature

32-95°F (0-35°C)

Humidity

10-85% (non-condensing)

NOISE LEVEL

Normal

36 dB (typ)

Whisper mode

30 dB (typ)

DIMENSIONS
(WXHXD)

Physical (mm)

420mm x 139.7mm x 320mm

Physical (in.)

16.5" x 5.5" x 12.6"

WEIGHT

Net

15.6 lb. (7.1 kg)

Gross

25.6 lb. (11.6 kg)

REGULATIONS

UL 60950, C-UL, FCC-B, GS, CB, CE, C-TICK, GHOST, NOM, CCC, PSB

OTHER

Lens shift, progressive scan, PIN lock, network control, anti-theft security bar, daylight mode, 16-watt speakers, optional lenses, active iris, eShot, adjustable fan speed, mouse with laser pointer

PACKAGE CONTENTS

Projector, power cords, VGA cable, RCA video cable, remote control, lens cap, ViewSonic Wizard CD, Quick Start Guide

WARRANTY

Three-year limited warranty on parts and labor, first-year Express Exchange® Service. One-year limited warranty on lamp**
