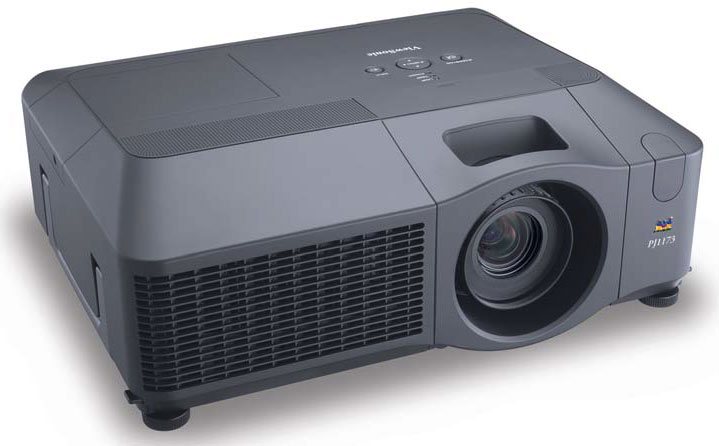

ViewSonic PJ1173 3LCD Multimedia Video Projector viewsonic p

KEY POINTS - PJ1173 Viewsonic 5000 ANSI Lumens 3LCD Multimedia Projector:

5000 ANSI Lumens

Native 1024 x 768 XGA Resolution

1000:1 Contrast Ratio

4:3 Native Aspect Ratio

Weighs 15.6 lbs

Enhanced security feature: PIN lock, Kensington® security lock and a security bar

Network control through RJ-45

Superior 16-watt stereo sound: Four 4-watt speakers with SRS® WOW technology for panoramic 3D sound.

Easy maintenance: Easy access to the lamp and filter covers even when the projector is mounted.

SUMMARY - Viewsonic pj1173 5000 ANSI Lumens 3LCD Multimedia Projector:

ViewSonic's PJ1173 projector delivers maximum impact for large-venue presentations. With 5,000 LUMENS and 1000:1 contrast ratio (typ), this PREMIUM PROJECTOR is ideally suited for conference rooms, lecture halls, religious sanctuaries and boardrooms. The PJ1173 is full-featured with native XGA 1024x768 resolution, advanced image processing, manual lens shift, horizontal and vertical (auto) keystone correction, and HDMI input for perfect high-def images.

The image reversing function offers versatile installation options. Network connectivity allows you to REMOTELY CONTROL AND MANAGE YOUR PROJECTOR and the 4x4-watt SRS® WOW STEREO SPEAKERS give your presentations powerful sound. The security bar and PIN lock guard against theft and unauthorized use. The PJ1173 projector is the full-featured choice for dynamic presentations and smooth video entertainment in large venues.

DETAILED SPECS - VIEWSONIC PJ1173 5000 ANSI LUMENS 3LCD MULTIMEDIA PROJECTOR:

PROJECTOR

Type

0.8" Polu-Si TFT with micro lens

Pixel Format

1024x768 XGA

Lens

Manual zoom, manual focus, manual lens shift

Zoom Factor

1.2

Keystone

Auto-vertical ± 40º, horizontal ± 20º

DISPLAY

Size

30" to 350" (diagonally)

Throw Distance

35" - 425"

Throw Ratio

1.5~1.8:1

Brightness

5,000 ANSI lumens

Contrast Ratio

1000:1 (typ)

Aspect Ratio

4:3 (native), 16:9

AUDIO

Speakers

4x4-watt with SRS WOW technology

INPUT SIGNAL

Computer and Video

RGB analog, NTSC M, NTSC 4.45, PAL, SECAM, HDTV (480i, 480p, 575i, 720p, 1080i)

Frequency

Fh: 31-92kHz, Fv: 56-120Hz

COMPATIBILITY

Analog: from VGA up to UXGA (compressed)

Mac®+

Analog: up to SXGA (may require Mac Adapter)

CONNECTOR

RGB Input

Analog RGB: DB-15 (x2), Digital RGB: M1-D

HDMI (input)

HDMI 1.3 with audio (x1)

RS-232

9-pin D-sub (x1)

RGB Output

DV-15 (x1)

RGB

BNC-5 (x1 set)

Composite Video

RCA-3 jack (x1 set)

Component Video

RCA Jack (x1 set)

S-Video

Mini Din 4-pin (x1)

Audio Input

3.5mm stereo mini jack (x2) for RGB, RCA l/R jack (1 set)

Audio Output

3.5mm stereo mini jack (x1)

Remote

Wireless Remote Control IR (x3)

Network

RJ-45

Mouse Control

M1-D

POWER

Voltage

100-240 VAC/50-60 (universal)

Consumption

460W (typ)

CONTROLS

Basic

Standby, menu, input, reset, H/V keystone, search, picture mode

OPERATING CONDITIONS

Temperature

32° F to 95° F (0° C to 35° C)

Humidity

10% to 85% (non-condensing)

Altitude

0-6,000 ft+

NOISE LEVEL

Normal

39 dB (typ)

Eco-mode

33dB (typ)

DIMENSIONS
(WXHXD)

Physical (mm)

418mm x 139mm x 319mm

Physical (in.)

16.5" x 5.5" x 12.6"

WEIGHT

Net

15.6 lb. (7.1 kg)

Gross

25.6 lb. (11.6 kg)

REGULATIONS

UL 60950, C-UL, FCC-B, TUV/GS, CB, CE, C-TICK, GHOST, NOM, CCC, PSB

OTHER

Lens shift, progressive scan, PIN lock, network control, anti-theft security bar, daylight mode, 16-watt speakers, optional lenses, active iris, eShot, adjustable fan speed, mouse with laser pointer

PACKAGE CONTENTS

Projector, power cords, VGA cable, RCA video cable, wireless remote control, lens cap, ViewSonic Wizard CD, Quick Start Guide

WARRANTY

Three-year limited warranty on parts and labor. One-year warranty on lamp. First-year free Express Exchange service.
