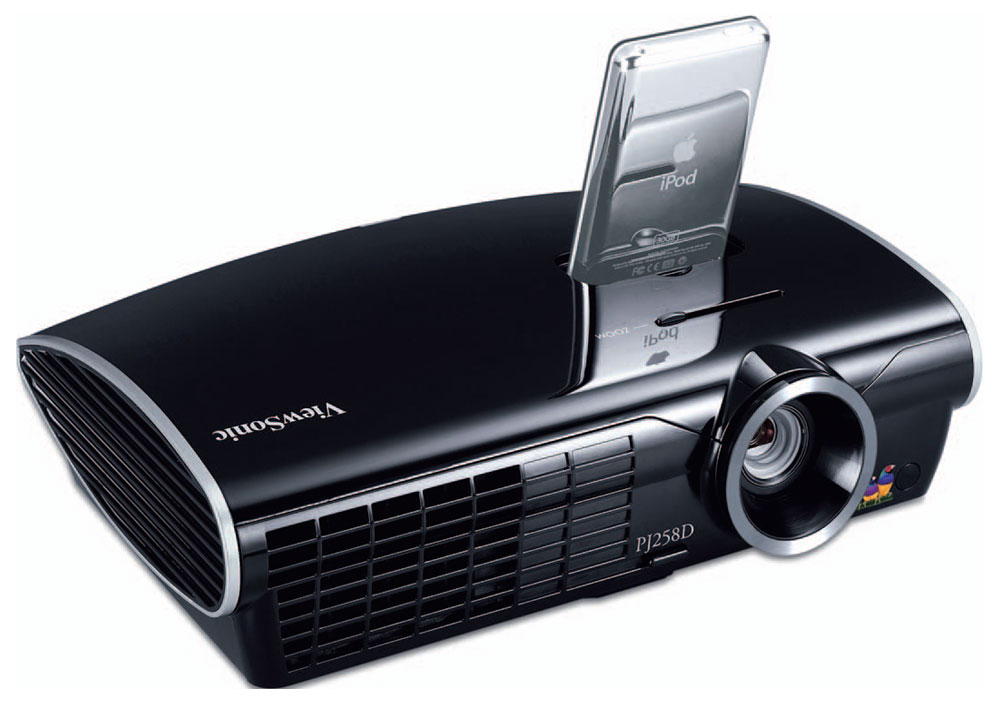

ViewSonic PJ258D DLP Portable Video Projector viewsonic pj25

SUMMARY - Viewsonic pj258d 2000 ANSI Lumens DLP Portable Projector:

ViewSonic's PJ258D ViewDock™ projector sets the bar for ultra-portable projectors for work and play by converging entertainment excitment with professional practicality. The integrated iPod with video dock lets you PROJECT CONTENT DIRECTLY FROM YOUR IPOD for larger-than-life pictures and videos. The array of projector connectivity options allows you to connect a PC, DVD player, game console, and more.

The PJ258D projector uses Texas Instruments DLP® technology for RAZOR SHARP DIGITAL IMAGES and brilliantly displays 2,000 lumens for use in virtually any setting. The PJ258D is perfect for table top use in meeting rooms and for the business traveler who needs a lightweight but powerful projector. Its stylishly contoured design is sophisticated for the contemporary professional on the go and the entertainment aficionado by night.

DETAILED SPECS - VIEWSONIC PJ258D 2000 ANSI LUMENS DLP PORTABLE PROJECTOR:

PROJECTOR

Type

0.55" DDR DMD, DLP®

Pixel Format

1024x768 XGA

Lens

Manual zoom, manual focus

Zoom Factor

1.2

Keystone

Vertical ± 15º

DISPLAY

Size

40"-300" (diagonally)

Throw Distance

62.4"-468"

Throw Ratio

1.94-2.27:1

Lamp

200W, 2,000 hours normal, up to 3000** hours eco

Brightness

2,000 ANSI lumens (max)

Contrast Ratio

2000:1 (max)

Aspect Ratio

4:3 (native), 16:9

AUDIO

Speakers

1x1-watt

INPUT SIGNAL

Computer and Video

RGB analog, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N60), SECAM (B, D, G, K, K1, L), 480i, HDTV (720p, 1080i)

Frequency

Fh: 31.5-79.8kHz; Fv: 56-85Hz

COMPATIBILITY

Analog: from VGA to SXGA (scaled)

Mac®+

Analog: to SXGA (may require a Mac adapter)

CONNECTOR

RGB Input

15-pin HD, D-sub (x2)

Composite Video Input

RCA jack (x1)

S-Video Input

Mini-Din 4-pin (x1)

Component Video Input

VGA to RCA component adapter* (optional)

iPod

Dock

POWER

Voltage

100-240 VAC, 50/60Hz (universal)

Consumption

280W (typ)

CONTROLS

Basic

Standby/On, input, menu

OnView®

Display (mode, brightness, contrast, white intensity, color temp, saturation), management (menu location, projection, keystone, source lock, high altitude, translucence, reset), frequency, phase, H. position, V. position, degamma, aspect ratio, V. shift 16:9, OSD language, color setting, lamp setting

OPERATING CONDITIONS

Temperature

32º-104°F (0-40°C)

NOISE LEVEL

Normal

37 dB (typ)

Whisper mode

34 dB (typ)

DIMENSIONS
(WXHXD)

Physical (mm)

288mm x 190mm x 83mm

Physical (in.)

11.3" x 7.5" x 3.5"

WEIGHT

Net

3.9 lb. (1.8 kg)

Gross

10.1 lb. (4.6 kg)

REGULATIONS

UL, C-UL, FCC-B, CB, CE, TUV/GS, CCC, PSB, NOM

OTHER

Whisper mode, iPod dock, optical zoom, wireless remote control, soft carrying case, progressive scan, direct off for unplug and go, daylight mode

PACKAGE CONTENTS

iPod dock, projector, power cords, VGA cable, RCA video cable, remote control, soft case, lens cap, ViewSonic Wizard CD, Quick Start Guide

WARRANTY

Three-year limited warranty on parts and labor, first-year Express Exchange® Service. One-year limited warranty on lamp**
