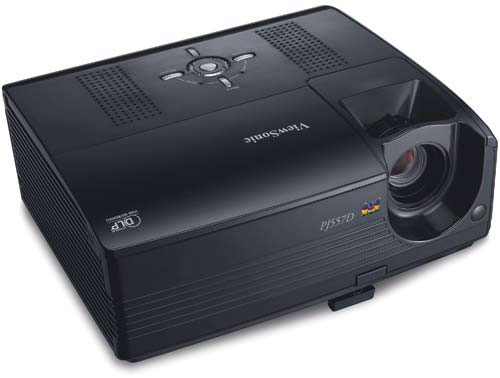

ViewSonic PJ557D DLP Portable Video Projector viewsonic pj55

KEY POINTS - PJ557D Viewsonic 2300 ANSI Lumens DLP Portable Projector:

2300 ANSI Lumens

Native 1024 x 768 XGA Resolution

2000:1 Contrast Ratio

Ultimate video source flexibility - connect a computer or add a video source for dynamic meetings and presentations

Supports HD signals including 720p and 1080i

Customizable start-up screen

Lamp life up to 3,500 hours (in eco-mode)

SUMMARY - Viewsonic pj557d 2300 ANSI Lumens DLP Portable Projector:

The ViewSonic® PJ557D DLP® projector features 2,300 lumens, native 1024x768 resolution, ultra-high 2000:1 contrast ratio (typ) and Brilliant ColorTM for precise images in virtually any setting. This full-feautered projector includes MULTIPLE INPUTS for connecting a computer or video source, dual 5-watt speakers for complete multimedia presentations, VERTICAL KEYSTONE CORRECTION for easy image adjustment and DIRECT OFF FEATURE.

Choose from whiteboard, blackboard or greenboard mode for the best picture on your projection surface. Eco-mode extends lamp life and reduces fan noise as low as 34dB. Protect your projector from theft and unauthorized use with the Kensington® security port and PIN lock password. This projector is perfect for multimedia classroom lessons and corporate presentations.

DETAILED SPECS - VIEWSONIC PJ557D 2300 ANSI LUMENS DLP PORTABLE PROJECTOR:

TECHNOLOGY

Type

0.55" DMD DDR, DLP

Pixel Format

1024x768 XGA

Lens

Manual zoom/focus

Zoom Factor

1.1

Keystone

Vertical ± 15º

DISPLAY

Brightness (max)

2,300 ANSI lumens

Contrast Ratio

2000:1

Display size

27.2" to 250" (diagonally)

Aspect Ratio

4:3 (native), 16:9

Throw Distance

47.2" - 393.6"

Throw Ratio

1.97~2.16:1

Lamp type

180W 3,500 hours normal, up to 4,000 eco mode**

COMPATIBILITY

Analog: from VGA up to SXGA (scaled)

Mac®+

Analog: up to SXGA

INPUT SIGNAL

Computer and Video

RGB analog, NTSC, NTSC 4.43, PAL, SECAM, HDTV (480p, 720p, 1080i)

Frequency

Fh: 31-79kHz; Fv: 50-85Hz

AUDIO

Speakers

2x5-watt

CONNECTOR

RGB Input

15-pin HD, D-sub (x2)

Composite Video Input

RCA jack

S-Video Input

Mini-DIN 4-pin

Component Video Input

VGA DB-15 to HDTV/component cable

USB

Type B for mouse control only

POWER

Voltage

100-240 VAC, 50-60Hz (universal)

Consumption

250W (typ)

CONTROLS

Basic

Standby/On, input, menu

OnView®

Display mode, brightness, contrast, keystone, aspect ratio, blank screen, color temperature, user color, video (sharpness, saturation, tint), display (phase, H. position, V. position), advance (auto source select, eco mode, lamp hours, lamp reset, auto shutdown, OSD timeout, menu position, factory reset), audio (audio mute)

OPERATING CONDITIONS

Temperature

32° to 104° F (0° to 40° C)

Humidity

10% to 90% (non-condensing)

Altitude

0-10,000 ft+

NOISE LEVEL

Normal

34dB (typ)

Eco-mode

32dB (typ)

DIMENSIONS
(WXHXD)

Physical

8.9" x 4.3" x 8.8"(277mm x 109mm x 223mm)

WEIGHT

Net

6.0 lb. (2.7 kg)

Gross

0.0 lb. (0.0 kg)

REGULATIONS

UL/cUL, FCC-B, CE, CB, CCC, NOM, C-UL, ICES-003, GS, GOST-R, Hygienic, SASO, UKrSEPRO, RoHS

PACKAGE CONTENTS

Projector, power cable, VGA cable, S-video cable, remote control with batteries, soft case, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

WARRANTY

Three-year limited warranty on parts and labor. One-year warranty on lamp. First-year free Express Exchange service.

RECYCLING/DISPOSAL

The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
