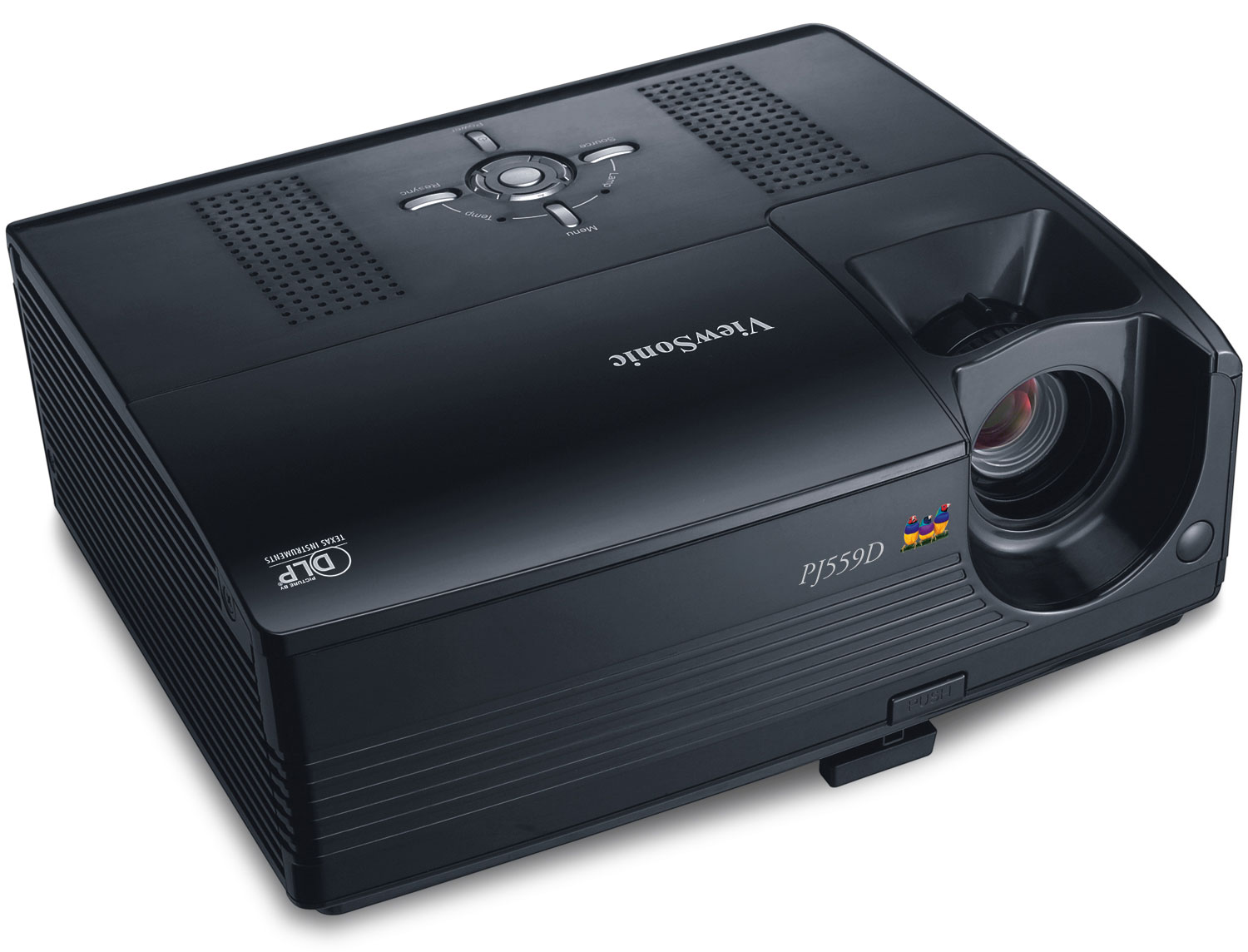

ViewSonic PJ559D DLP Portable Video Projector viewsonic pj55

KEY POINTS - PJ559D Viewsonic 2700 ANSI Lumens DLP Portable Projector:

2700 ANSI Lumens

Native 1024 x 768 XGA Resolution

2000:1 Contrast Ratio

Ultimate video source flexibility - connect a computer or add a video source for dynamic meetings and presentations

Supports HD signals including 720p and 1080i

Customizable start-up screen

Lamp life up to 4,000 hours (in eco-mode)

SUMMARY - Viewsonic pj559d 2700 ANSI Lumens DLP Portable Projector:

The ViewSonic® PJ559D DLP® projector features 2,700 lumens, native 1024x768 resolution, ultra-high 2000:1 contrast ratio (typ) and Brilliant ColorTM technology for precise images in any lighting condition. This full-featured projector includes MULTIPLE INPUTS for connecting several display sources simultaneously, dual 5-watt speakers for complete multimedia presentations, VERTICAL KEYSTONE CORRECTION for easy image adjustment and DIRECT OFF FEATURE.

Choose from whiteboard, blackboard or greenboard mode for the best picture on your projection surface. Eco-mode extends lamp life and reduces fan noise as low as 34dB. Protect your projector from theft and unauthorized use with the Kensington® security port and PIN lock password. Choose the PJ559D for education and business use.

DETAILED SPECS - VIEWSONIC PJ559D 2700 ANSI LUMENS DLP PORTABLE PROJECTOR:

TECHNOLOGY

Type

0.55" DDR DMD, DLP

Pixel Format

1024x768 XGA

Lens

Manual zoom/focus

Zoom Factor

1.1

Keystone

Vertical ± 40º

DISPLAY

Brightness (max)

2,700

Contrast Ratio

2000:1

Display size

27.2" to 250" (diagonally)

Aspect Ratio

4:3 (native), 16:9

Throw Distance

47.2" - 393.2"

Throw Ratio

1.97~2.6:1

Lamp type

200W, 3,500 hours normal, up to 4,000 eco mode**

COMPATIBILITY

Analog: from VGA up to SXGA< (scaled)

Mac®+

Analog: up to SXGA

INPUT SIGNAL

Computer and Video

RGB analog, NTSC, NTSC 4.43, PAL, SECAM, HDTV (480p, 720p, 1080i)

Frequency

Fh: 31-79kHz; Fv: 56-86Hz

AUDIO

Speakers

2x5-watt

CONNECTOR

Composite Video Input

RCA jack

Component Video Input

VGA DB-15 to HDTV/component cable*

RS-232

6-pin D-sub

RGB (input/output)

15-pin HD, D-sub (x2)

Audio Input

Stereo mini-jack

Audio Output

Stereo mini jack

USB

Type B for mouse control only

POWER

Voltage

100-240 VAC, 50-60Hz (universal)

Consumption

200W (typ)

CONTROLS

Basic

Standby/On, input, menu

OnView®

Display mode, brightness, contrast, keystone, aspect ratio, blank screen, color temperature, user color, video (sharpness, saturation, tint), display (phase, H. position, V. position), advance (auto source select, eco mode, lamp hours, lamp reset, auto shutdown, OSD timeout, menu position, factory reset) audio (audio mute)

OPERATING CONDITIONS

Temperature

32° to 104° F (0° to 40° C)

Humidity

10% to 90% (non-condensing)

Altitude

0-10,000 ft+

NOISE LEVEL

Normal

35dB (typ)

Eco-mode

33dB (typ)

DIMENSIONS
(WXHXD)

Physical

8.9" x 4.3" x 8.8" (277mm x 109mm x 233mm)

WEIGHT

Net

6.0 lb. (2.7 kg)

Gross

13.0 lb. (5.9 kg)

REGULATIONS

UL/cUL, FCC-B, CE, CB, CCC, NOM, ICES-003, IRAM, GS, GOST-R, Hygienic, UKrSEPRO, RoHS

PACKAGE CONTENTS

Projector, power cable, VGA cable, S-video cable, remote control with built-in laser, soft case, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

WARRANTY

Three-year limited warranty on parts and labor. One-year warranty on lamp. First-year free Express Exchange service.

RECYCLING/DISPOSAL

The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
