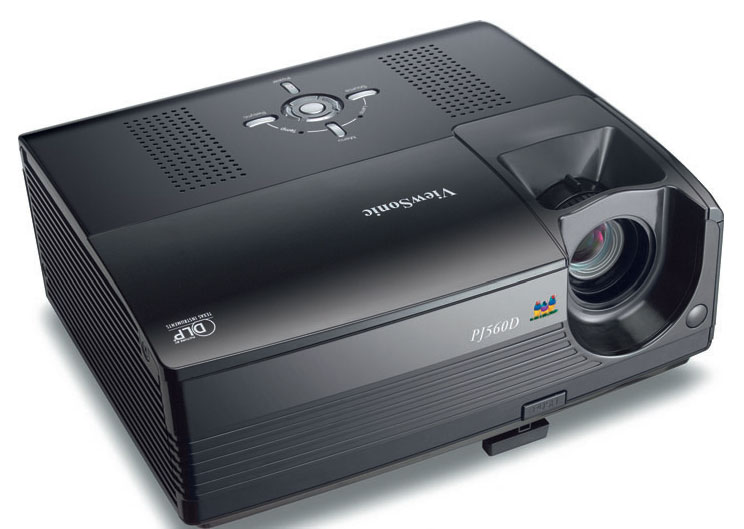

ViewSonic PJ560D DLP Portable Video Projector viewsonic pj56

KEY POINTS - PJ560D Viewsonic 3200 ANSI Lumens DLP Portable Projector:

3200 ANSI Lumens

Native 1024 x 768 XGA Resolution

2000:1 Contrast Ratio

Ultimate video source flexibility - connect a computer or add a video source for dynamic meetings and presentations

Supports HD signals including 720p and 1080i

Customizable start-up screen

Lamp life up to 4,000 hours (in eco-mode)

SUMMARY - Viewsonic pj560d 3200 ANSI Lumens DLP Portable Projector:

The ViewSonic® PJ560D DLP® projector features native 1024x768 resolution, 3,200 lumens, ultra-high 2000:1 contrast ratio (typ) and Brilliant ColorTM technology for precise images in any lighting condition. This full-featured projector includes MULTIPLE INPUTS for connecting several display sources simultaneously, zoom and focus, VERTICAL KEYSTONE CORRECTION and DIRECT OFF FEATURE.

Choose from whiteboard, blackboard or greenboard mode for the best picture on your projected surface. Eco-mode extends lamp life and reduces fan noise as low as 34dB. Protect your projector from theft and unauthorized use with the Kensington® security port and PIN lock password. Choose the PJ560D for education and business use. Start up your projector with a customized photo or company logo with the MyScreen feature. Great for mobile presentations on the road, in the office or in the classroom.

DETAILED SPECS - VIEWSONIC PJ560D 3200 ANSI LUMENS DLP PORTABLE PROJECTOR:

TECHNOLOGY

Type

0.55" DDR DMD, DLP

True Resolution

1024x768 XGA

Lens

Manual zoom/focus

Zoom Factor

1.1

Keystone

Vertical ± 40º

DISPLAY

Brightness (max)

3,200 ANSI lumens

Contrast Ratio

2000:1

Display size

27.2" to 250" (diagonally)

Aspect Ratio

4:3 (native), 16:9

Throw Distance

47.2" - 393.7"

Throw Ratio

1.97~2.16:1

Lamp type

280W, 3,500 hours normal, up to 4,000 eco mode**

COMPATIBILITY

Analog: from VGA up to SXGA (scaled)

Mac®+

Analog: up to SXGA

INPUT SIGNAL

Computer and Video

RGB analog, NTSC, NTSC 4.43, PAL, SECAM, HDTV (480p, 720p, 1080i)

Frequency

Fh: 31-79kHz; Fv: 56-85Hz

AUDIO

Speakers

2x5-watt

CONNECTOR

RGB Input

15-pin HD, D-sub (x2)

Composite Video Input

RCA jack

S-Video Input

Mini-DIN 4-pin

Component Video Input

VGA DB-15 to HDTV/component cable*

RS-232

6-pin D-sub

RGB Output

15-pin HD, D-sub

Audio Input

Stereo mini jack

Audio Output

Stereo mini jack

USB

Type B for mouse control and firmware upgrades

POWER

Voltage

100-240 VAC, 50-60Hz (universal)

Consumption

280W (typ)

CONTROLS

Basic

Standby/On, input, menu

OnView®

Display mode, brightness, contrast, keystone, aspect ratio, blank screen, color temperature, user color, video (sharpness, saturation, tint), display (phase, H. position, V. position), advance (auto source select, eco mode, lamp hours, lamp reset, auto shutdown, OSD timeout, menu position, factory reset), audio (audio mute)

OPERATING CONDITIONS

Temperature

32° to 104° F (0° to 40° C)

Humidity

10% to 90% (non-condensing)

Altitude

0-30,000 ft+

NOISE LEVEL

Normal

37dB (typ)

Eco-mode

32dB (typ)

DIMENSIONS
(WXHXD)

Physical

8.9" x 4.3" x 8.7" (277mm x 109mm x 223mm)

WEIGHT

Net

6.0 lb. (2.7 kg)

Gross

13.0 lb. (5.9 kg)

REGULATIONS

UL/cUL, FCC-B, CE, CB, CCC, NOM, C-UL, ICES-003, IRAM, GS, GOST-R, Hygienic, SASO UKrSEPRO, RoHS

PACKAGE CONTENTS

Projector, power cable, VGA cable, RCA video cable, S-video cable, remote control with batteries, soft case, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

WARRANTY

Three-year limited warranty on parts and labor. One-year warranty on lamp. First-year free Express Exchange service.

RECYCLING/DISPOSAL

The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
