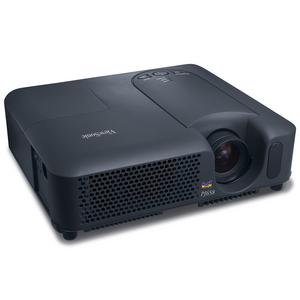

The ViewSonic PJ658 XGA projector is highly portable at 6.6 pounds with amazing 2,500 lumens for powerful presentations in any lighting environment. With multiple inputs, you can connect multiple display sources to the PJ658 for dynamic multimedia presentations. Advanced image processing, digital keystone correction and manual zoom and focus ensure that your images are crisp, clear and sharp. The security bar and Kensington security lock port give you the peace of mind that your projector is secure. The PJ658 features a sliding cover that allows for easy access to the projector's filter and lamp, especially in installed units. The PJ658 is loaded with features in a portable form factor that won't weigh you down.
Language, brightness, contrast, gamma, color
temperature, color, tint, sharpness, progressive, My Memory,
aspect, overscan, V./H. position, H. phase, H. size, auto
adjust, color space, component, video format, frame lock,
information, V. keystone, whisper, mirror, volume, audio,
language, menu position, OSD bright, blank color, start up, My
Screen, My Screen Lock, message, auto search, auto off, lamp
time, filter time, service menu
POWER
Voltage
100240 VAC, 50/60Hz (universal)
Consumption
310W (typ)
OPERATING CONDITIONS
Temperature
41-95?F (5-35?C)
Humidity
10-85% (non-condensing)
Altitude
Sea level to +6,000 ft.
NOISE LEVEL
Normal
39 dB (typ)
Whisper mode
34 dB (typ)
WEIGHT
Net
6.6 lb. (3 kg)
Gross
16.5 lb. (7.5 kg)
PACKAGE CONTENTS
Projector, power cords, VGA cable, RCA video
cable, remote control, soft case, lens cap, ViewSonic Wizard CD,
Quick Start Guide
DIMENSIONS
(WXDXH)
Physical (mm)
306mm x 100mm x 249mm
Physical (in.)
12" x 3.9" x 9.8"
OTHER
Auto vertical digital keystone correction,
progressive scan, 3:2 pull down, whisper mode, pin lock,
security bar, kensington security port, blackboard/whiteboard
projection modes, My Screen
REGULATIONS
UL 60950, C-UL, FCC-B, TUV/GS, CB, CE, C-TICK,
NOM
WARRANTY
Three-year limited warranty on parts and labor,
first-year Express Exchange Service. One-year limited warranty
on lamp
