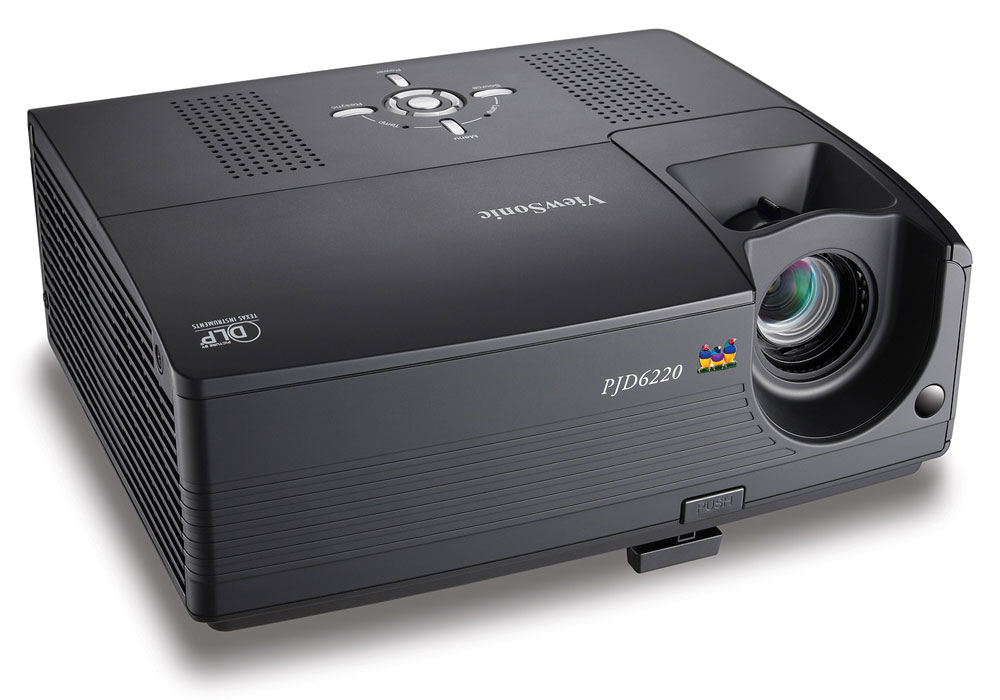

ViewSonic PJD6220 DLP Portable Video Projector viewsonic pjd

SUMMARY - Viewsonic pjd6220 2300 ANSI Lumens DLP Portable Projector:

The PJD6220 projector is the lightweight DLP® powerhouse that delivers sharp and bright images for virtually any environment. BrilliantColor™ technology produces more vibrant colors, while the high brightness and contrast ratios make this projector shine in most any lighting situation.

This projector is designed for table-top use or can be mounted on the ceiling for classrooms and meeting rooms. RJ-45 connectivity enables remote network control, while the extensive input options and integrated 2x5-watt speakers deliver a truly dynamic multimedia experience. This projector even features closed captioning for the hearing impaired. The Viewsonic PJD6220 projector is ideal for use in classrooms and corporate settings.

DETAILED SPECS - VIEWSONIC PJD6220 2300 ANSI LUMENS DLP PORTABLE PROJECTOR:

DISPLAY

Type

0.55” Digital Micromirror Device (DLP®)

Pixel Format

XGA 1024x768 (native) / SXGA 1280x1024 (compressed)

Lens

1.1× Manual Optical Zoom / Manual focus

Keystone

Vertical Digital keystone correction: +/- 40 degrees

Size

30”-300” (Diagonal) / 0.8m-7.6m

Throw Distance

1.2m-10m (47”-393”)

Throw Ratio

1.97:1~2.16:1

Lamp

180 watt

Lamp Life (Normal / Eco Mode)

3500 / 4000* (hours)

Brightness (max)

2,300 ANSI lumens

Contrast Ratio

2000:1 (typ)

Aspect Ratio

4:3 (native), 16:9

Color Gamut

85% NTSC (CIE 1931)

AUDIO

Speakers

2 x 5w

INPUT SIGNAL

Computer and Video

RGB analog, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N, 60), SECAM, SDTV / EDTV (480i/p, 576i/p), HDTV (720p, 1080i/p)

Frequency

Fh: 15-100 KHz, Fv: 43-85 Hz

COMPATIBILITY

Analog /: VGA up to SXGA (scaled)

Mac®+

Analog /: up to XGA (scaled)

CONNECTOR

RGB Input / Output

2 × in / 1× out (15-pin D-sub)

Composite Input

1× RCA jack

S-Video Input

1× 4-pin mini-DIN

Audio Input / Output

In ×1 / out ×1 (3.5mm Mini Jack)

USB

1× USB type B (firmware upgrade only)

Control

1× RS232 (6 pin D-Sub)

Network

1×RJ-45

POWER

Voltage

100~240VAC (Auto Switching), 50/60Hz (universal)

Consumption

265W (typ.) / 9W (Stand-by mode)

CONTROLS

Basic

Standby / On, input, menu

OSD

Picture: brightness, contrast, color setting, keystone, aspect ratio,image, white intensity, gamma

Computer image: frequency, tracking, H position, V position

Video image: saturation, sharpness, tint

Sound: volume, mute

Setting: menu position, projection, signal type, lamp hour, lamp hour reset, power saving, auto source, ECO mode, high altitude, OSD timeout

Option: blank screen, start-up screen, screen capture, password, DCR, closed caption, network control, BrilliantColor™

Network config: DHCP, IP address, subnet mask, gateway

Factory default

OPERATING CONDITIONS

Temperature

32ºF - 104ºF (0ºC - 40ºC)

Humidity

10% to 80% (non-condensing)

Altitude

0 to +10,000 ft (3,048 m)

NOISE LEVEL

Normal

36dB

Eco-mode

34dB

DIMENSIONS

W x H x D

8.93" x 4.3" x 8.77" ( 271mm× 110mm × 223mm)

WEIGHT

Net

6.5 lbs (2.9 kg)

Gross

11.1 lbs (5.0 kg)

REGULATIONS

CB, UL/cUL, FCC-B, ICES-003, IRAM, NOM, CE, GS, GOST- R, Hygienic, SASO, UKrSEPRO, CCC, C-tick, EK

PACKAGE CONTENTS

Projector, Power cable, VGA cable, Remote control with batteries, Composite cable, S-video cable, Soft carrying case, Lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide), VGA-component adapter

WARRANTY

3-year limited warranty on parts, 1-year limited warranty on lamp, 1st year Express Exchange® service.
