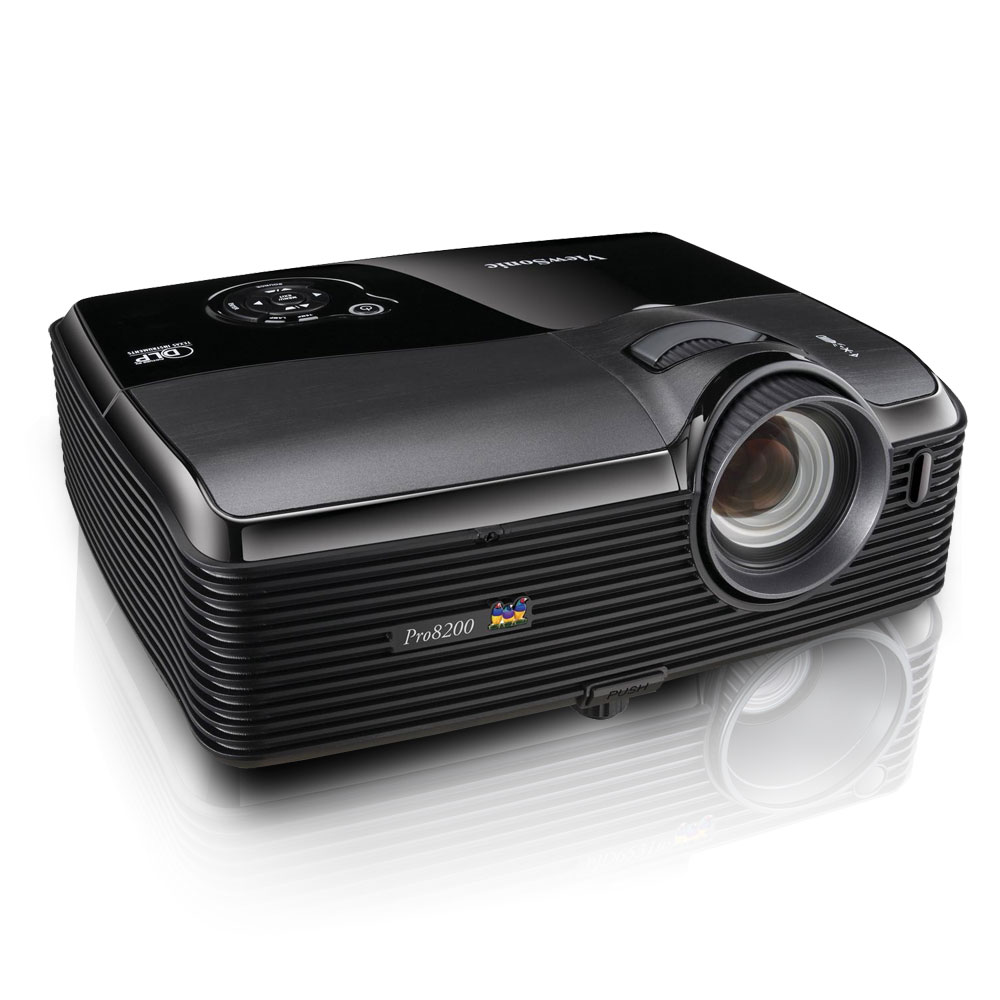

Viewsonic PRO8200 Home Theater Video Projector pro8200

Ultimate display source flexibility

SUMMARY - Viewsonic pro8200 HD DLP Home Theater Video Projector:

The Viewsonic Pro8200 combines state-of-the art DLP and BrilliantColor technology with 2,000 lumens and 4000:1 contrast ratio to deliver a stunning visual experience to any home theater. The ViewSonic pro8200 delivers a true HD home theater entertainment experience to even the most discriminating home theater enthusiast. Get ready for beautifully clear home theater entertainment.

DETAILED SPECS - VIEWSONIC PRO8200 HD DLP HOME THEATER VIDEO PROJECTOR:

DISPLAY

Type

0.66" Digital Micromirror Device (DLP)

Resolution

1920x1080 (1080p)

Lens

1.5× Manual optical zoom / Manual optical focus

Keystone

Vertical digital keystone correction: +/– 20 degrees

Display size

30"–300" / 0.76m–7.6m

Throw Distance

0.9m–10m / 3ft–32.8ft

Throw Ratio

1.4 – 2.14:1

Lamp type

230 watt

Lamp life (normal/eco-mode)

4000 / 6000* hours

Brightness

2000 Lumens

Contrast Ratio

4000:1 (dynamic)

Aspect Ratio

16:9 (native), 4:3, 16:10, Auto

Color Gamut

70% NTSC 1931 CIE

INPUT SIGNAL

Computer and Video

NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i and 1080p

Frequency

Fh: 30-100KHz, Fv: 50–85Hz

COMPATIBILITY

VGA to 1080p

Mac®

Up to 1080p

CONNECTOR

Digital

HDMI 1.3 (x2)

Composite Input

RCA jack

S-Video Input

4-pin mini-DIN

Component

RCA (x3)

Control

RS-232 (DB-9)

RGB (input/output)

15-pin mini D-sub (x2) / 15-pin mini D-sub

Audio (input/output)

3.5mm mini jack (x2), RCA (L/R) x1 / 3.5mm mini jack

USB

Type A for firmware update

Screen Trigger

3.5mm (12V/1A)

AUDIO

Speakers

10W (x2)

POWER

Voltage

100~240VAC (Auto Switching), 50/60Hz (universal)

Consumption

310W (max) / <1W (stand-by mode)

CONTROLS

Basic

Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, enter, source

OSD

Picture: Color Mode, Brightness, Contrast, Video Setting, Color Setting, User Color, Gamma Video/Audio: Frequency, Tracking, H Position, V Position, Overscan, Noise Reduction, Audio Setting, Microphone Volume, Speaker Volume, Mute Setting: Auto Keystone, Keystone, Aspect Ratio, Projection, Auto Source, Signal Type, Eco-mode, Filter Mode, High Altitude, Quick Power ON, Quick Cooling, DC 12V Trigger Information: Input Source, Resolution, H Frequency, V Frequency, Filter Hours, Filter Hours Reset, Equivalent Lamp Hours, Equivalent Lamp Hours Reset, Factory Default Option: Blank Screen, Password, OSD Setting, Closed Caption, Others, Display Type, Swap, Function

OPERATING CONDITIONS

Temperature

32ºF–104ºF (0ºC–40ºC)

Humidity

10%–90% (non-condensing)

Altitude

0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)

NOISE LEVEL

Normal

31dB

Eco-mode

27dB

DIMENSIONS (WxHxD)

Physical

13.1 × 4.3 × 10.4 (in) / 332.7× 110 × 264.2 (mm)

Packaging

16.3 × 14.8 × 7.5 (in) / 414 ×375.9 × 190.5 (mm)

WEIGHT

Net

8.5 lb (3.86 kg)

Gross

11.8 lb (5.36 kg)

REGULATIONS

CB, RoHS, SVHC, WEEE, UL/cUL, FCC-B, ICES-004, TUV-S (Argentina), NOM, PSB, C-tick, KC, CE, GOST-R, Hygienic, UKrSEPRO, CCC

PACKAGE CONTENTS

ViewSonic projector, power cable, VGA cable, HDMI cable, remote control/laser with batteries, lens cap, Quick Start Guide, ViewSonic Wizard DVD (with User Guide)

WARRANTY

3-year limited warranty on parts, 1-year limited warranty on lamp, 1st year Express Exchange service.

viewsonic pro8200 home theater video projector pro8200

Viewsonic PRO8200 HD DLP Home Theater Video Projector

KEY POINTS - Viewsonic pro8200 hd dlp home theater video projector:

BrilliantColor technology

Bright in virtually any setting with 2,000 lumens

Closed captioning

Control capabilities

Full 1080p HD resolution

Go green and save

Pixelworks high performance PW980 video processor

Stay connected
