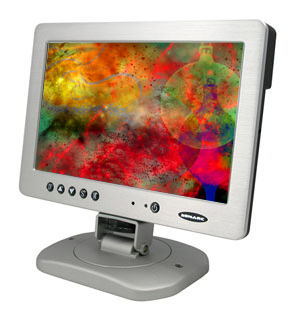

Xenarc 1020TSV 10.2 inch TFT LCD Touch screen Monitor w/ VGA & AV inputs

This unit is subject to MAP Policy, and we are unable to advertise our price. Please click ADD TO CART button to see our price. Clicking does not commit you to purchase.

Return to Xenarc LCD Page

Xenarc Technologies Corp. is one of the first LCD manufacturers to introduce a 10.2" LCD screen with VGA input and Touch screen.  In-Car computing is the next step in computing technology, and we are committed to serving this up and coming technology sector.

This popular product incorporates the innovation of our VGA 10.2" model along with a 4-wire resistive Touch-Screen panel.  Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface.  You can connect several of our touch screen monitors to your computer and the touch screens would work simultaneously through the multi-monitor support.

The brushed, anodized aluminum face plate gives the monitor a futuristic yet elegant look.  The entire enclosure is constructed with aluminum, making the unit both strong and light weight.  The thin profile (only 1.19") makes the monitor very space saving.

This monitor comes included with an instruction manual, an aluminum monitor stand, a U-Shape mount, an AC adaptor, a connection cable, a cigarette lighter car adaptor, and touch screen drivers for DOS, Windows, Linux, and Mac OS.

Please take a look at the non-touch version 1020YV if you don't need a touch screen.

• For In-Car Computing, PC, Server, GPS, and various VGA Use
• 4-wire resistive Touch Screen (USB)
• Multi-Monitor Touchscreen Support
• VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• Picture In Picture / Split Screen
• Audio Input / Built-in Speaker
• NTSC / PAL Multi-System
• 16x9 Aspect Ratio
• High Resolution Display - up to 1024 x 768
• Adjustable backlight level for night-time use
• Dimmer Button for night-time use
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input memory
• Last Power setting memory
• IR Remote Control
• Auto power-on upon signal detection
• Automatic display adjustment
• On Screen Display Control
• Mirror Image Flip (VGA and Video Modes)
• Vertical Image Flip (VGA and Video Modes)
• Desktop Stand: 360° Adjustment
• VESA 75mm mounting holes
• 20-Pin heavy-duty connector
• Anti Glare Coating
• Brushed, anodized aluminum face plate
• Aluminum Casing
• Supports 11V DC ~ 24V DC
• "E" Mark Certified for Automotive use

• Model #: 1020TSV
• Screen Size:  Diagonal 10.2"  (16:9)
• Physical Resolution: 800 (H)  x 480 (V) WVGA
• Supported Resolution:  640 x 480 ~ 1024 x 768
• Dot Resolution: 2400 x 480 = 1,152,000 (dots)
• LCD Brightness: 500 cd/m>²
• Contrast Ratio: 300:1
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 11V ~ 24V, 1A
• Power Supply: DC 12V
• Power Consumption:  <8W
• Operating Temperature:  23°F ~ 158°F
• Storage Temperature:  -40°F ~ 203°F
• Dimension (in):  10.44W x 7.31H x 1.19D
• Weight (lb):  3.2
• FCC, CE, E13 Certification
• ROHS Compliant
• 18 Month Warranty

Manufacturer Homepage: www.xenarc.com
