Xenarc 1040TS 10.4-Inch Touch Screen LCD Monitor

This unit is subject to MAP Policy, and we are unable to advertise our price. Please click ADD TO CART button to see our price. Clicking does not commit you to purchase.

Back to Xenarc LCD Main

Click For Larger Image

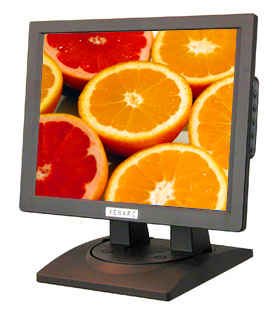

OVERVIEW - Xenarc 1040TS Touch Screen Monitor

Need a portable touch screen monitor?  Don't have enough room for a big bulky 15"?  If that's the case, then check out Xenarc Technologies' slim 10.4" TFT LCD monitor with VGA and Touch screen.  This monitor offers you the convenience of a touch screen at a space-saving size.  This monitor supports display resolution up to 800x600 (SVGA). Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the RS-232 port as the interface.  The monitor is perfect for Point Of Sales systems with the included stand.  The stand can also be removed for use with any VESA mounts, making it perfect for in-car computing purposes.


• Resistive Touch Screen (RS-232)
• On Screen Display Control
• For PC, Server, GPS, and various VGA Use
• VGA Input (15 pin D-SUB) x 1
• 4x3 Aspect Ratio
• Automatic display adjustment
• Stand: 90° Vertical / 56° Horizontal Adj.
• Removable base / stand
• VESA standard mounting holes
• Supports 12V DC
• FCC, CE, UL

• Model #: 1040TS
• Screen Size:  Diagonal 10.4"
• Display Resolution:  800 x 600 (Max.)
• Supported Resolution:  640 x 480 ~ 800 x 600
• Dot Resolution: 2400 x 600 = 1,440,000 (dots)
• Brightness: 220 cd/m²
• Power Supply:  DC 12V/2.5A
• Power Consumption:  18W
• Operating Temperature:  32°F ~ 140°F
• Dimension w/o base (in):  9.9W x 9.0H x 1.6D
• Weight w/ base (lb):  3.97
• FCC, CE, UL Certified
• ROHS Compliant
• 12 Month Warranty
