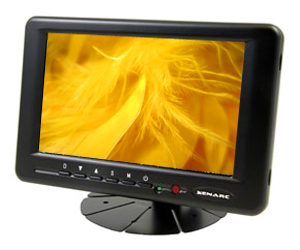

Xenarc 702TSV 7 Inch TFT LCD Touchscreen Monitor

This unit is subject to MAP Policy, and we are unable to advertise our price. Please click the ADD TO CART button to see our price. Clicking BUY NOW does not commit you to purchase.

Return to Xenarc LCD Main

KEY POINTS - 702TSV Xenarc 7 Inch TFT LCD Touchscreen Monitor:

• Screen Size: Diagonal 7-inch (16:9)
• Physical Resolution: 800 (H)  x 480 (V) WVGA
• Includes VGA and Video connectivity
• LCD Brightness: 1000 cd/m² with a 500:1 Contrast Ratio
• Viewing Angle: 140 Degrees Horizontal, 120 Degrees Vertical
• Pixelworks High Performance Image and Video Signal Processor
• NTSC / PAL Multi-System
• Can be used for for In-Car Computing, PC, Server, GPS, and various VGA use
• 5-Wire Resistive Touch Screen (USB)

SUMMARY - Xenarc 702tsv 7 Inch TFT LCD Touchscreen Monitor:

DETAILED SPECS - XENARC 702TSV 7 INCH TFT LCD TOUCHSCREEN MONITOR:

Model #: 702TSV
Screen Size:  Diagonal 7-inch (16:9)
Physical Resolution: 800 (H)  x 480 (V) WVGA
Supported Resolution:  640 x 480 ~ 1024 x 768
Dot Resolution: 2400 x 480 = 1,152,000 (dots)
LCD Brightness: 1,000 cd/m²
Contrast Ratio: 500:1
Viewing Angle: 140 Degree Horizontal, 120 Degree Vertical
Touch Screen Interface: USB port
Operating Voltage Range: DC 11V ~ 24V
Power Supply: DC 12V
Power Consumption:  <8W
Operating Temperature:  23 Degrees F ~ 158 Degrees F
Storage Temperature:  -22 Degrees F ~ 185 Degrees F
Dimension (inches):  7.87W x 5.12H x 1.30D
Weight (lb): 1.35
FCC, CE, E13 Certification
ROHS Compliant
18 Month Warranty

Manufacturer Link: www.xenarc.com
