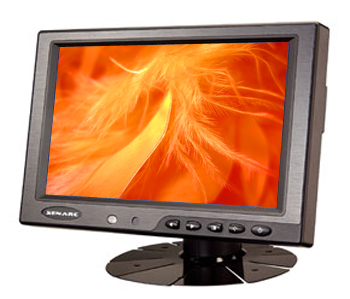

Xenarc 706TSA 7 Inch TFT LCD Touchscreen Monitor

This unit is subject to MAP Policy, and we are unable to advertise our price. Please click the ADD TO CART button to see our price. Clicking BUY NOW does not commit you to purchase.

Return to Xenarc LCD Main

KEY POINTS - 706TSA Xenarc 7 Inch TFT LCD Touchscreen Monitor:

• Screen Size: Diagonal 7-inch (16:9)
• Physical Resolution: 800 (H)  x 480 (V) WVGA
• Includes DVI, VGA, and Video connectivity
• LCD Brightness: 650 cd/m² with a 300:1 Contrast Ratio and 6ms Response Time
• Viewing Angle: 140 Degrees Horizontal, 80 Degrees Vertical
• Pixelworks High Performance Image and Video Signal Processor
• NTSC / PAL Multi-System
• Can be used for for In-Car Computing, PC, Server, GPS, and various VGA use
• 5-Wire Resistive Touch Screen (USB)

SUMMARY - Xenarc 706tsa 7 Inch TFT LCD Touchscreen Monitor:

With the 706TSA TFT LCD monitor, Xenarc Technologies Corp. is one the first manufacturers to develop a 7-inch LCD screen with DVI connectivity and touchscreen functionality. Ideal for in-car computing, PC, Server, GPS, and various VGA uses, the 706TSA is the small screen with big performance care of the Pixelworks High Performance Image and Video Signal Processor, along exceptional contrast ratio and a high brightness rating.

DETAILED SPECS - XENARC 706TSA 7 INCH TFT LCD TOUCHSCREEN MONITOR:

Model #: 706TSA
Screen Size:  Diagonal 7-inch (16:9)
Physical Resolution: 800 (H)  x 480 (V) WVGA
Supported Resolution:  640 x 480 ~ 1600 x 1200
Dot Resolution: 2400 x 480 = 1,152,000 (dots)
LCD Brightness: 650 cd/m²
Contrast Ratio: 300:1
Response Time: 6ms
Viewing Angle: 140 Degrees Horizontal, 80 Degrees Vertical
Touch Screen Interface: USB port
Operating Voltage Range: DC 10V ~ 24V
Power Supply: DC 12V
Power Consumption:  <25W
Operating Temperature:  -22 Degrees F~185 Degrees F (-30 Degrees C~85 Degrees C)
Storage Temperature:  -22 Degrees F~185 Degrees F
Dimension (inches):  7.5W x 4.9H x 1.4D
Weight (lb): 1.10
FCC, CE, E13 Certification
ROHS Compliant
18 Month Warranty

Manufacturer Link: www.xenarc.com
